Ideal Vacuum Cube Chamber Side Mounted 90 Degree Offset Angle Bracket Kit for Feet or Optical Post
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

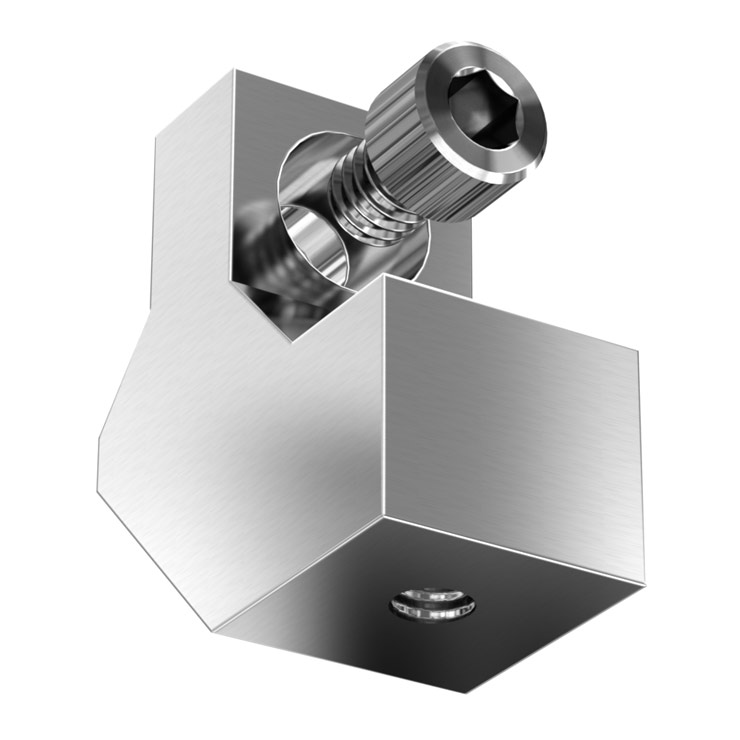

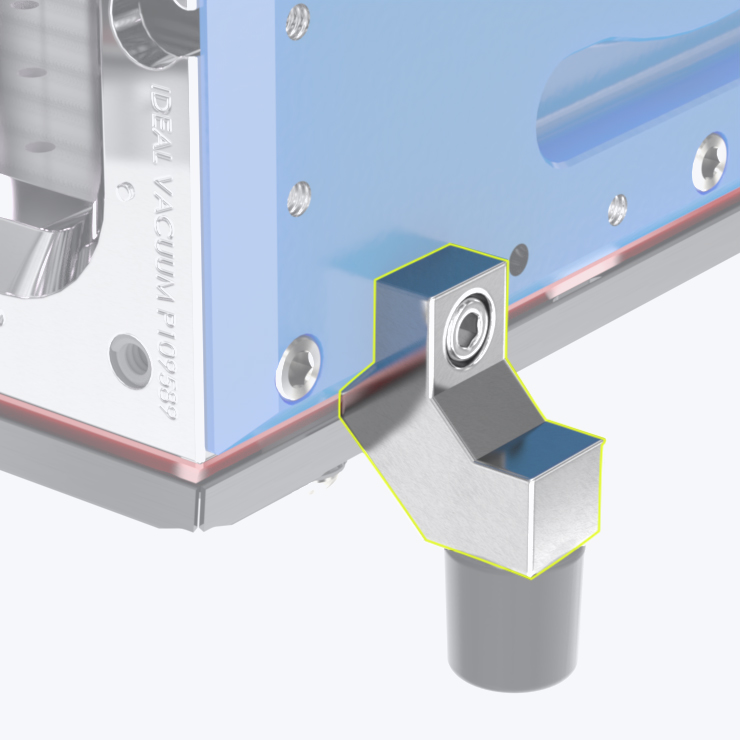

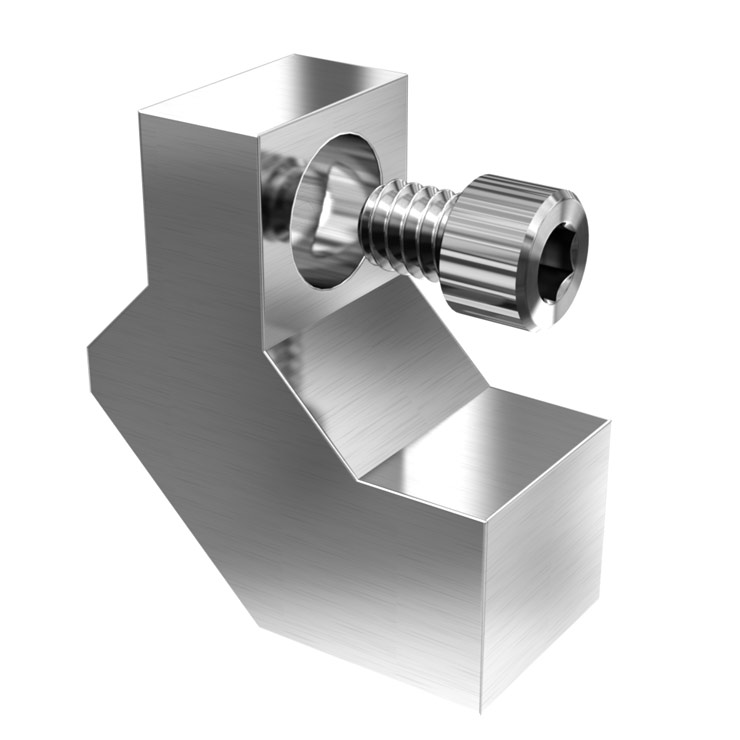

These side mounted 90° offset angle brackets mount with a screw to the sides of a vacuum Cube. They raise the Cube one inch from its bottom plate and extend the feet from all Cube sides by one inch.
These brackets are machined from 6061-T6 aluminum and have a standard 1/4"-20 threaded hole in the base. For benchtop use, vibration isolating rubber feet (P107297) can be screwed in which raises the chamber an additional 13/16" above the bench.
For rigid optical table mounting, the user can choose from a variety of standard optical posts to set the chamber to their preferred height above the table. This can allow vacuum plumbing or other feedthroughs to be mounted below the chamber.
Required number of offset feet:
These brackets are machined from 6061-T6 aluminum and have a standard 1/4"-20 threaded hole in the base. For benchtop use, vibration isolating rubber feet (P107297) can be screwed in which raises the chamber an additional 13/16" above the bench.
For rigid optical table mounting, the user can choose from a variety of standard optical posts to set the chamber to their preferred height above the table. This can allow vacuum plumbing or other feedthroughs to be mounted below the chamber.
Required number of offset feet:
- (4 ea) for all cubic vacuum Cubes (6 x 6 x 6, 9 x 9 x 9, 12 x 12 x 12)
- (6 ea) for all hexagonal vacuum Cubes
- (8 ea) for all octagonal Cubes
- (1 ea) 90° offset angle bracket
- (1 ea) socket head mounting screw
