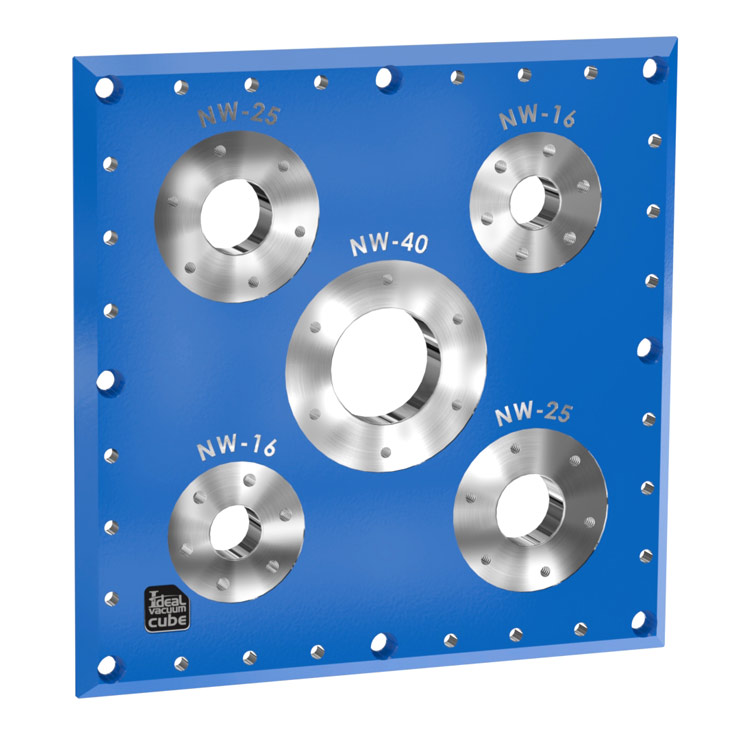

This is an Ideal Vacuum Cube 9 x 9 inch plate with five KF bulkhead ports, including one KF-40, two KF-25, and two KF-16 ports. The plate is machined from 6061-T6 aluminum and powder coated blue.

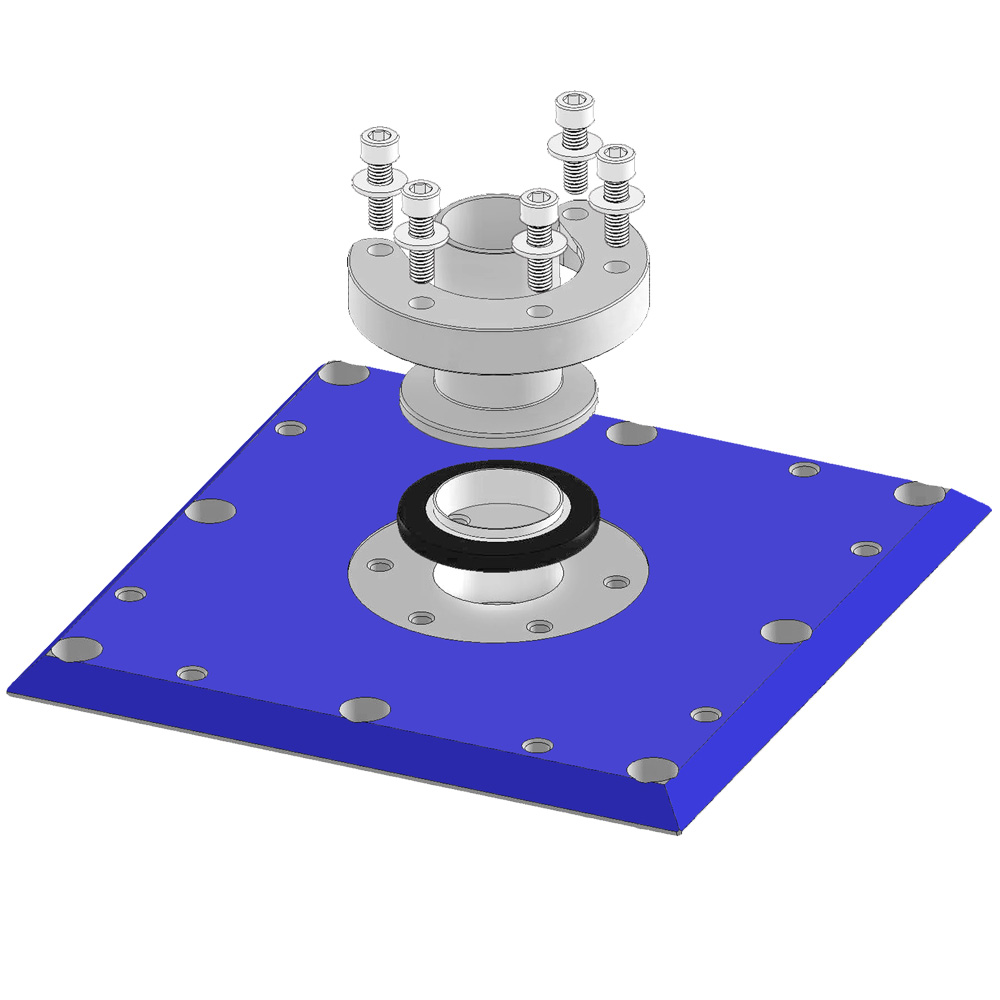

SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use standard centering rings and bulkhead clamps.
SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use standard centering rings and bulkhead clamps.
- KF-16 uses centering ring (P101242) and bulkhead clamp (P104598 or P108101)
- KF-25 uses centering ring (P101243) and bulkhead clamp (P108102 or P104599)
- KF-40 uses centering ring (P101244) and bulkhead clamp (P108103 or P104600)
- 9 x 9 plate
- 6061-T6 aluminum
- Blue powdercoat
- (1 ea) KF-40, (2 ea) KF-25, and (2 ea) KF-16 bulkhead ports (uses bulkhead clamps and centering rings)

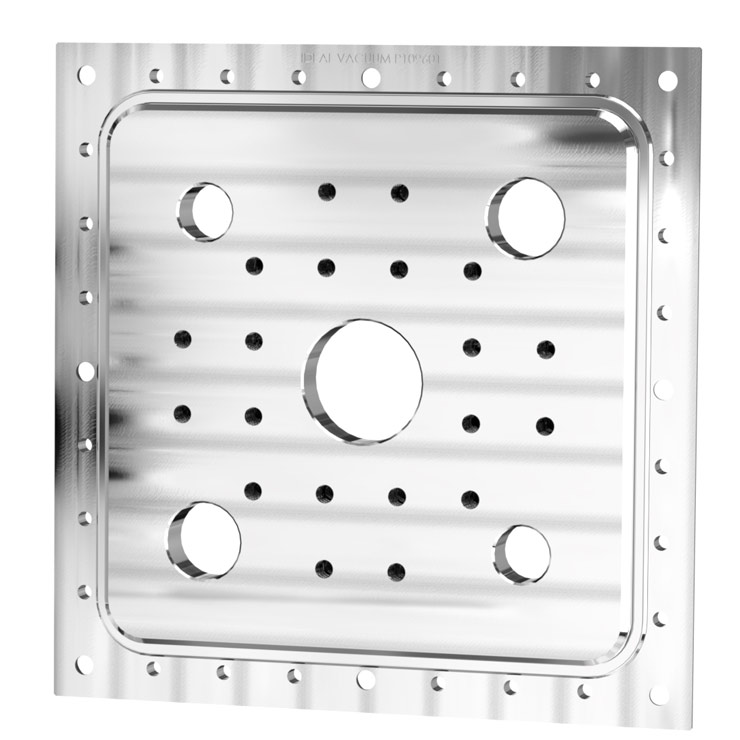

- Internal optical breadboard
- Mounts in any orientation
