Ideal Vacuum Cube 9 x 9 Vacuum Chamber Plate With One ISO-F 100 Port Uncoated for Bakeout
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

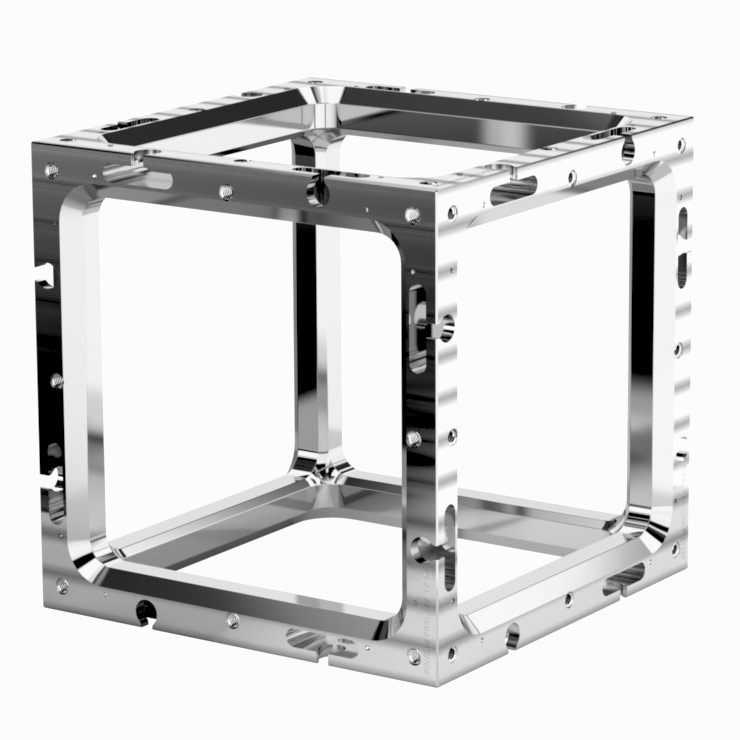

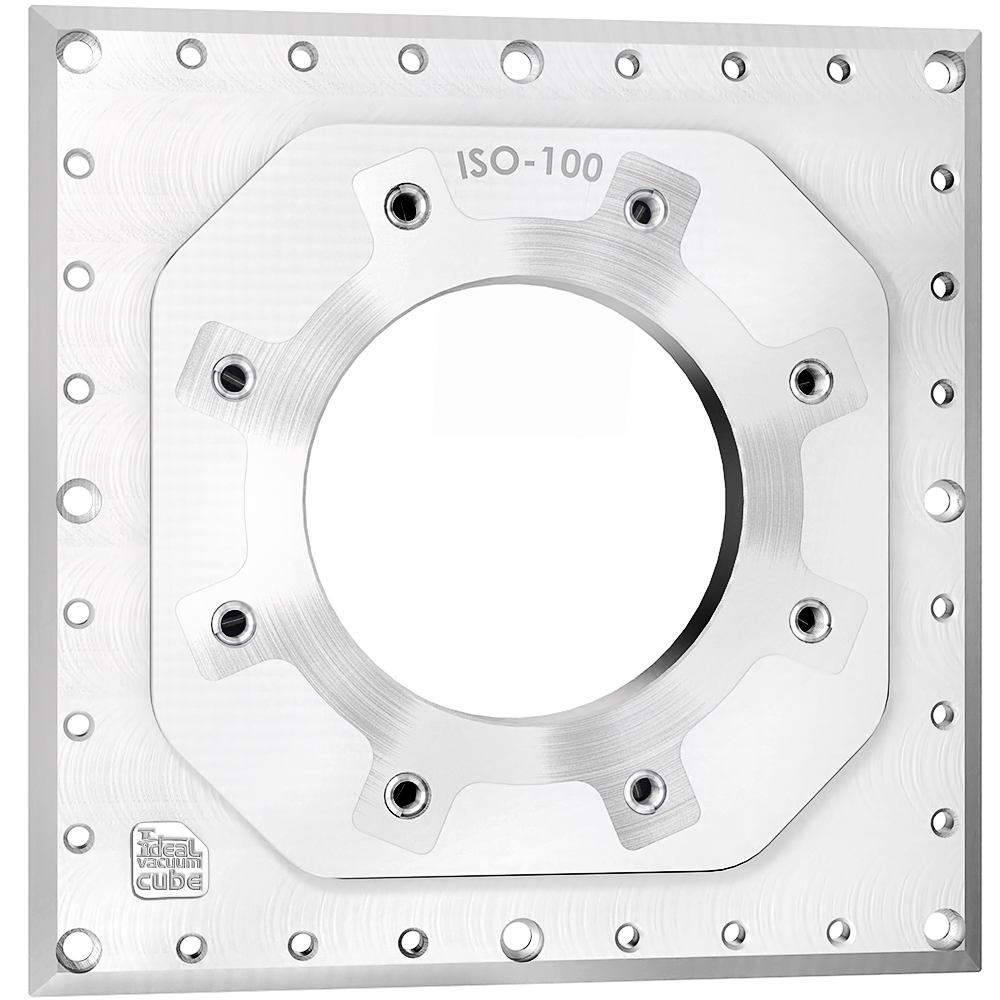

This is an Ideal Vacuum Cube 9 x 9 inch plate with one ISO-F 100 port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.
The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101768).
Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.
Features:
The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101768).
Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.
Features:
- 9 x 9 plate
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- One ISO-F 100 port with 5/16-18 tapped mounting holes
- Internal optical breadboard
- Mounts in any orientation
