NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS!

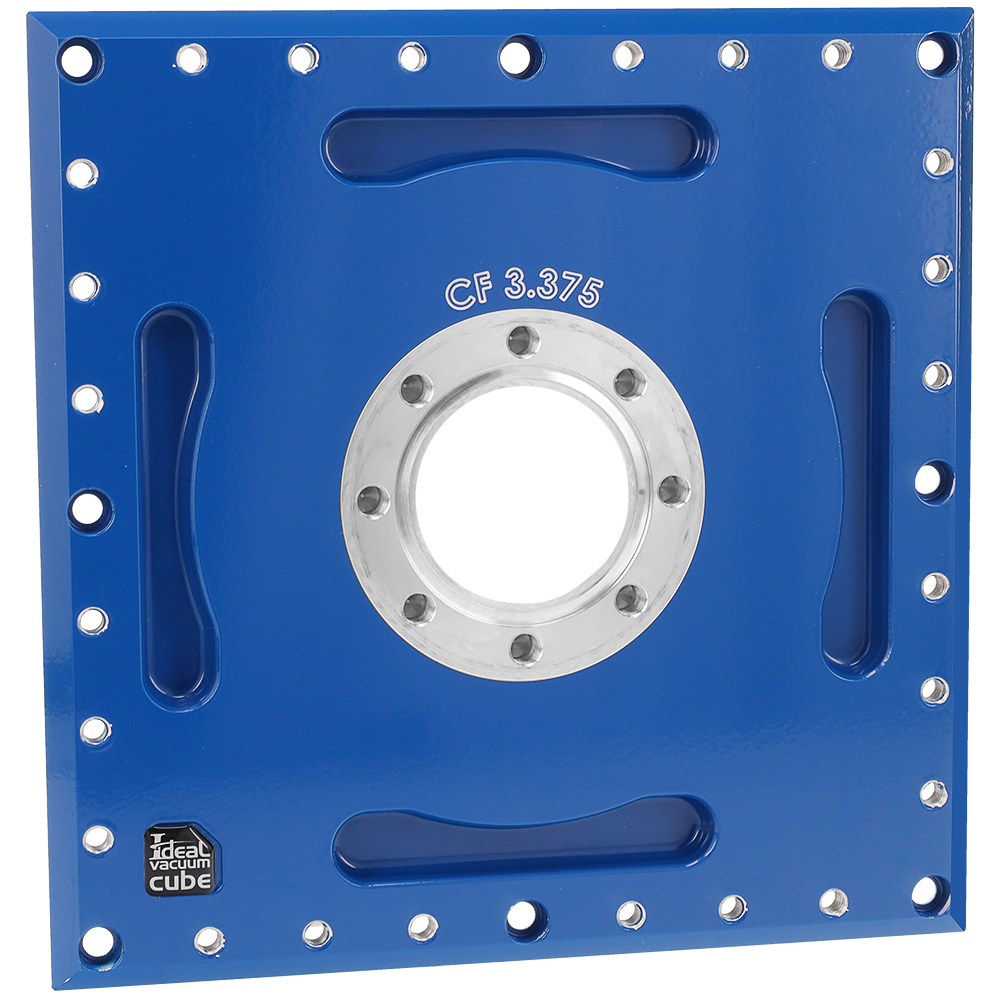

This is an Ideal Vacuum Cube 9 x 9 inch plate with one CF 3.375" port. The plate is machined from 6061-T6 aluminum and powder coated blue.
This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104342). Cube baseline vacuum is 1 x 10-7 Torr.
Features:
This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104342). Cube baseline vacuum is 1 x 10-7 Torr.
Features:
- 9 x 9 plate
- 6061-T6 aluminum
- Blue powdercoat
- Single CF 3.375" port with 5/16-24 UNF tapped holes
- Internal optical breadboard
- Mounts in any orientation
