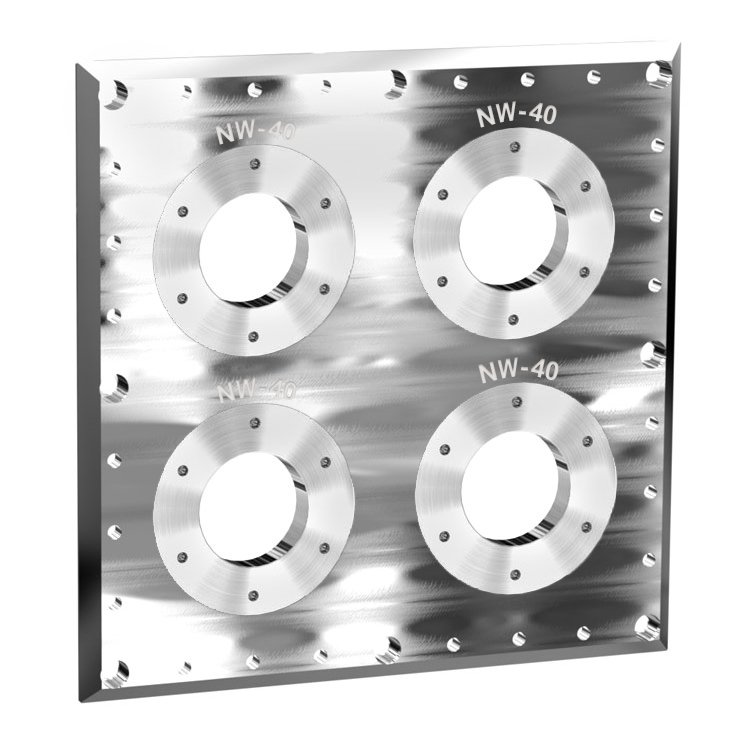

This is an Ideal Vacuum Cube 9 x 9 inch plate with four KF-40 bulkhead ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.

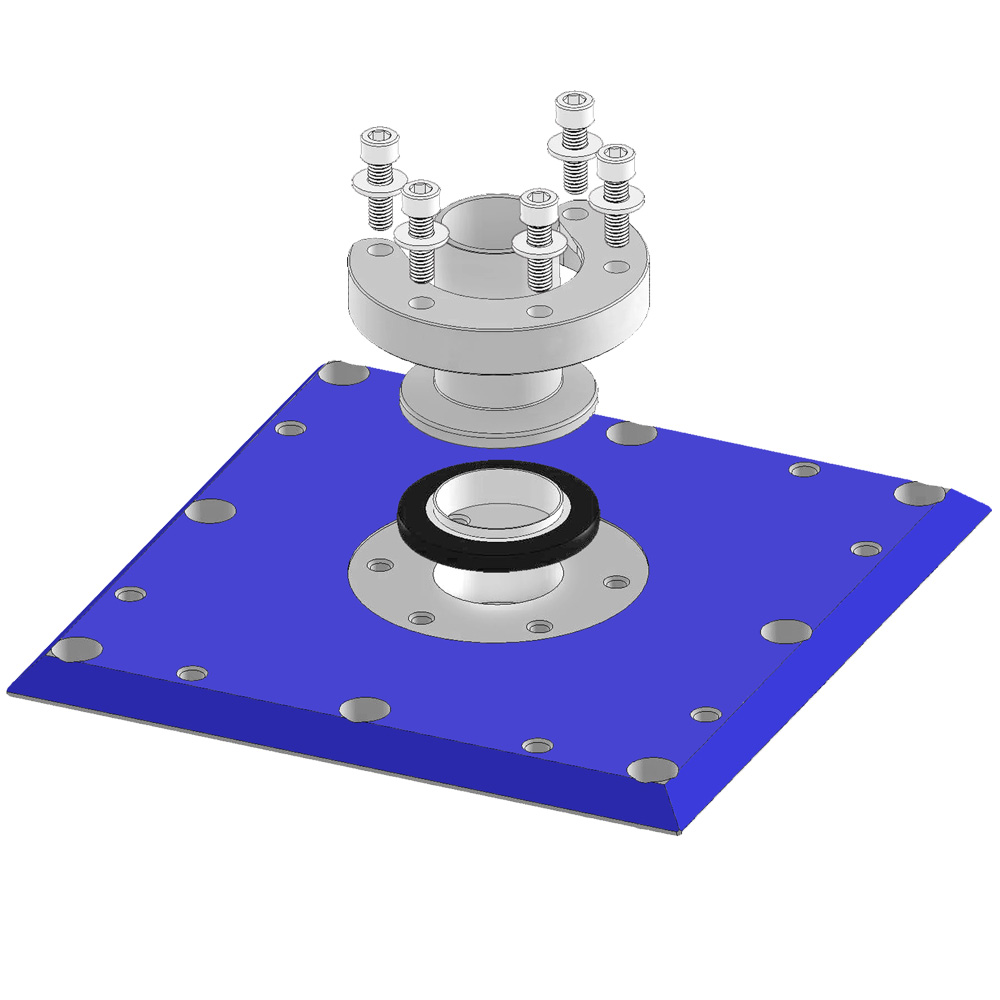

SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600)
Features:
SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600)
Features:
- 9 x 9 plate
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- Quad KF-40 (NW-40) bulkhead ports (uses KF-40 bulkhead clamps and centering rings)

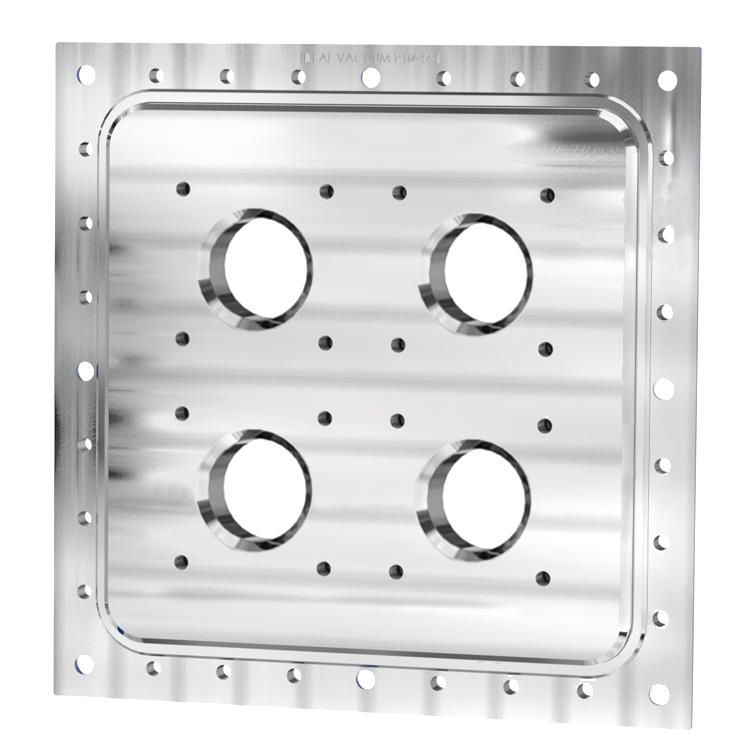

- Internal optical breadboard
- Mounts in any orientation
