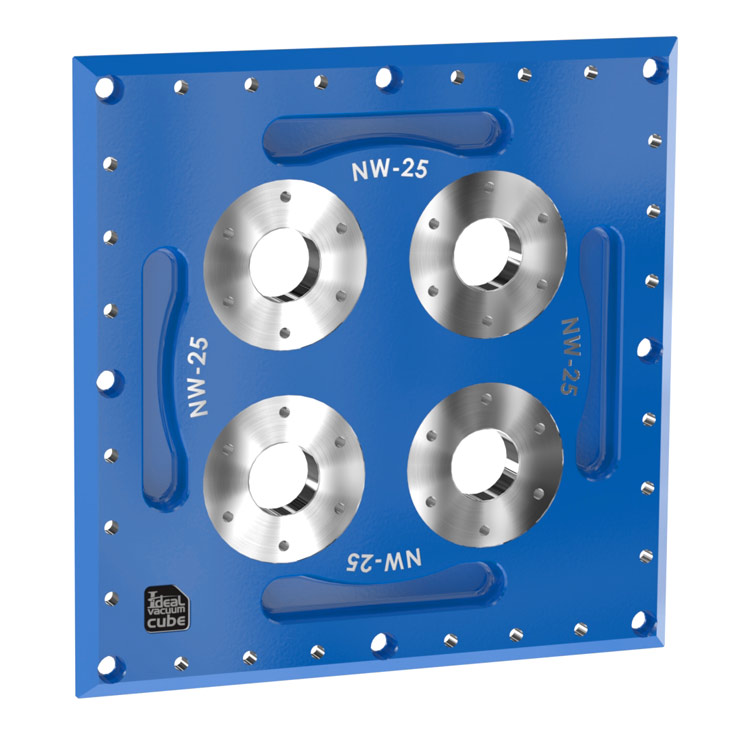

This is an Ideal Vacuum Cube 9 x 9 inch plate with four KF-25 bulkhead ports. The plate is machined from 6061-T6 aluminum and powder coated blue.

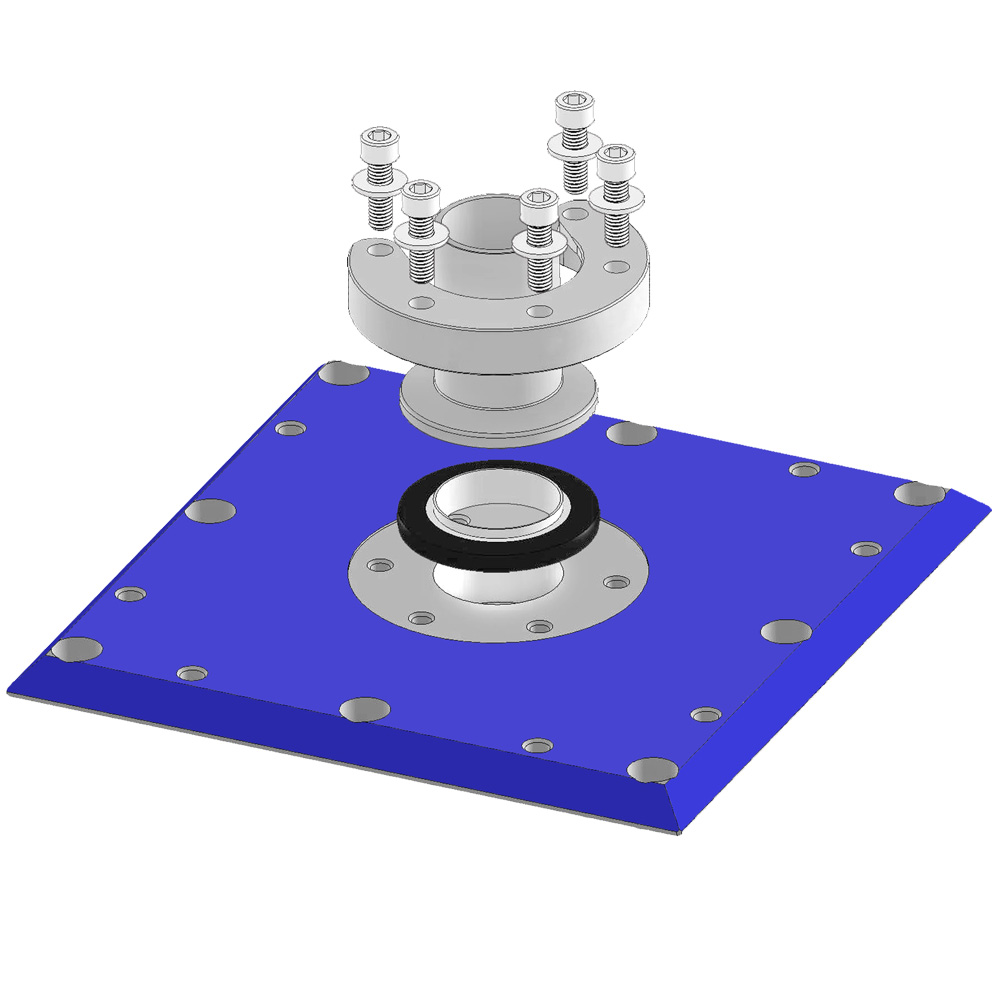

SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).
Features:
SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).
Features:
- 9 x 9 plate
- 6061-T6 aluminum
- Blue powdercoat
- Quad KF-25 (NW-25) bulkhead ports (uses KF-25 bulkhead clamps and centering rings)

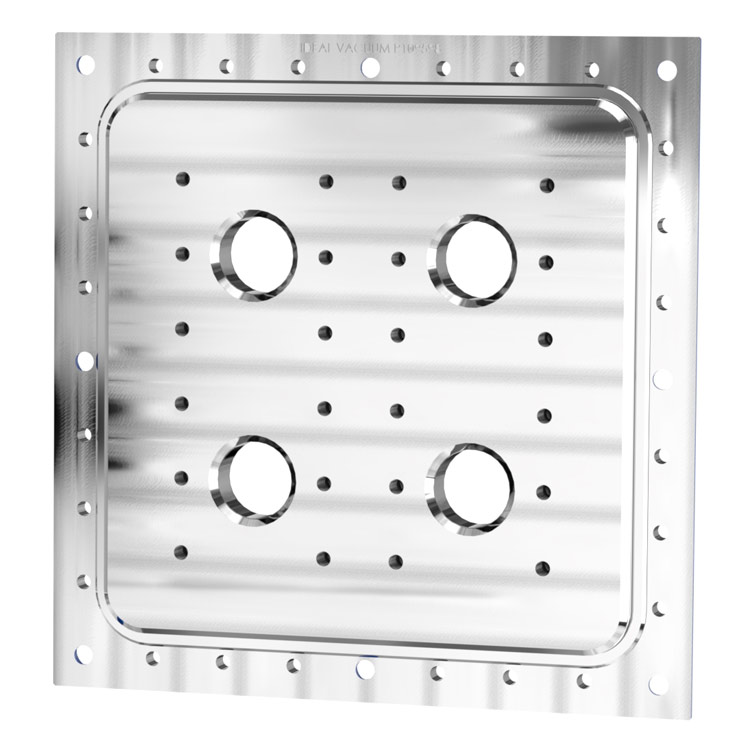

- Internal optical breadboard
- Mounts in any orientation
