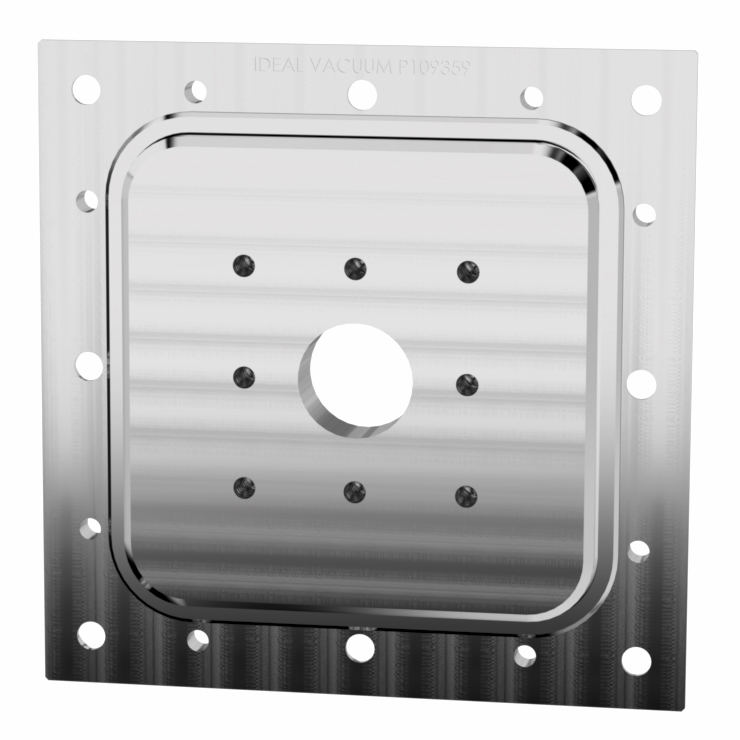

This is an Ideal Vacuum Cube 6 x 6 inch plate with one KF-25 centered bulkhead port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.

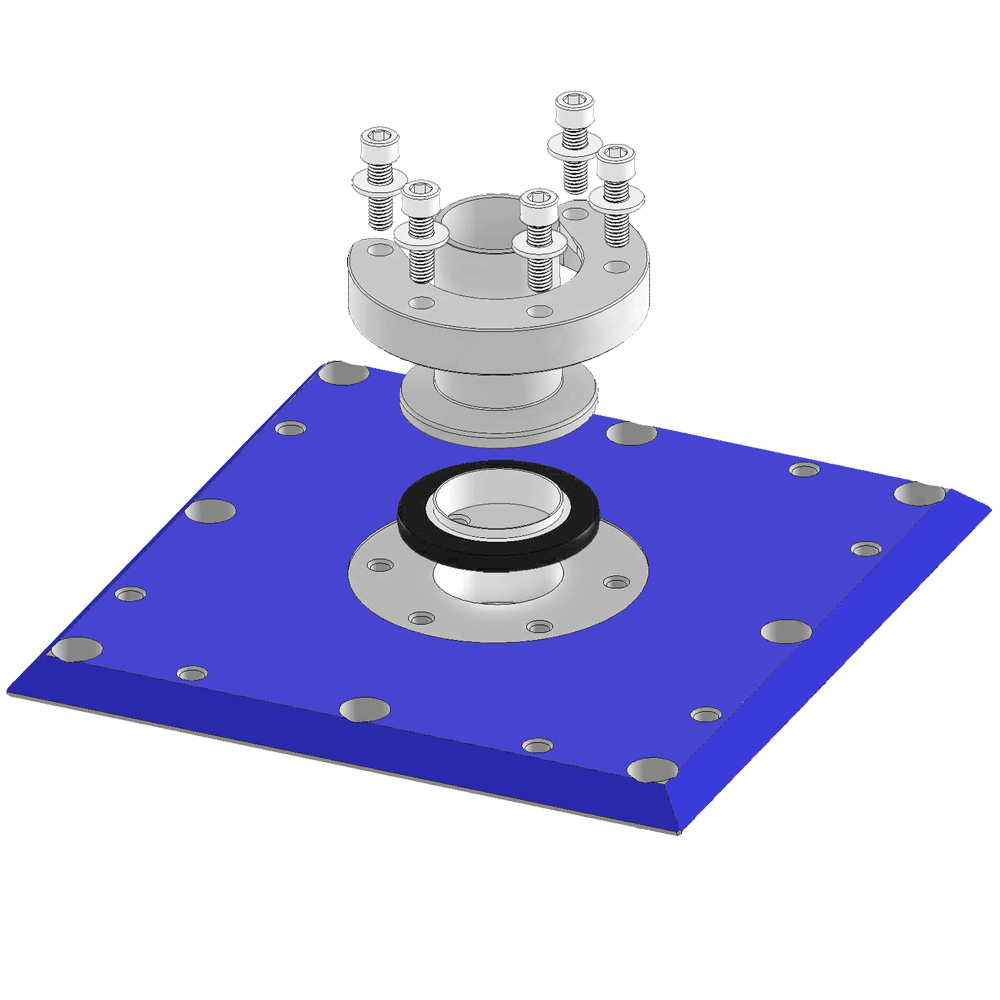

SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).
Features:
SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599).
Features:
- 6 x 6 plate
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- Single KF-25 (NW-25) bulkhead port (uses KF-25 bulkhead clamp and centering ring)
- Internal optical breadboard
- Mounts in any orientation
- 6x6x6
- 6x6x12
- 6x6x6 hexagon
- 6x6x12 hexagon
- 6x6x12 octagon
