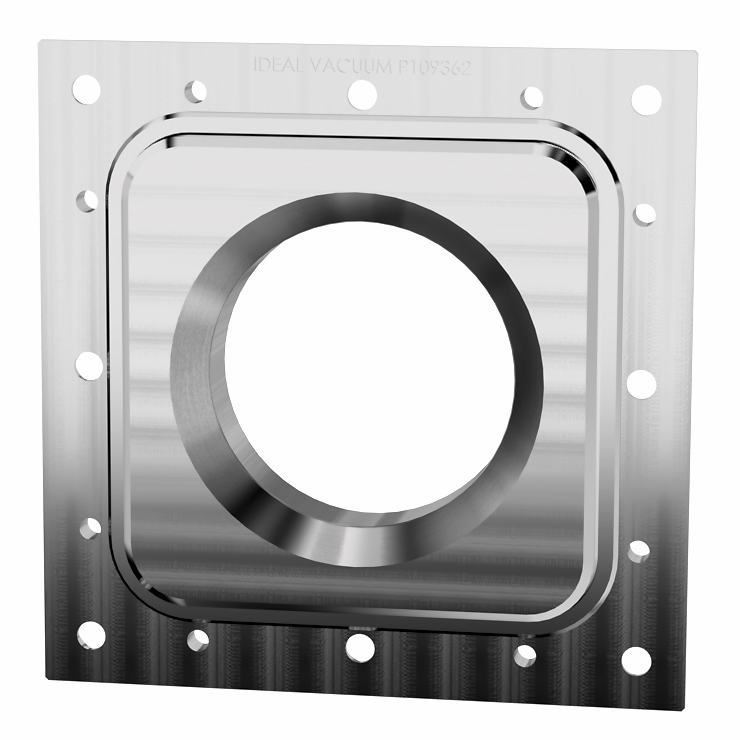

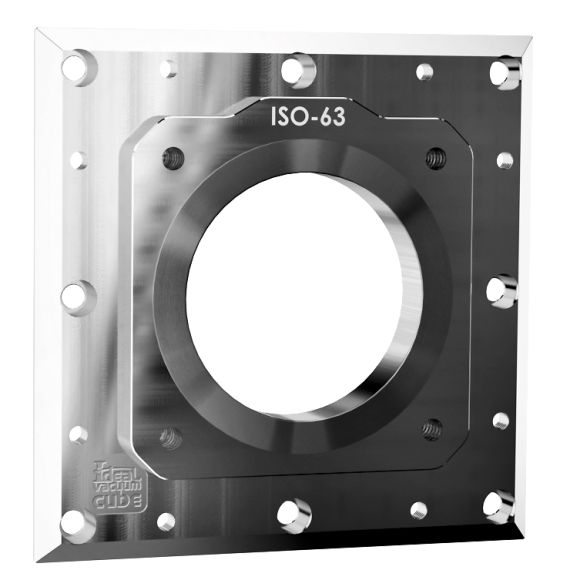

This is an Ideal Vacuum Cube 6 x 6 inch plate with one ISO-F 63 centered port. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.
The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766).

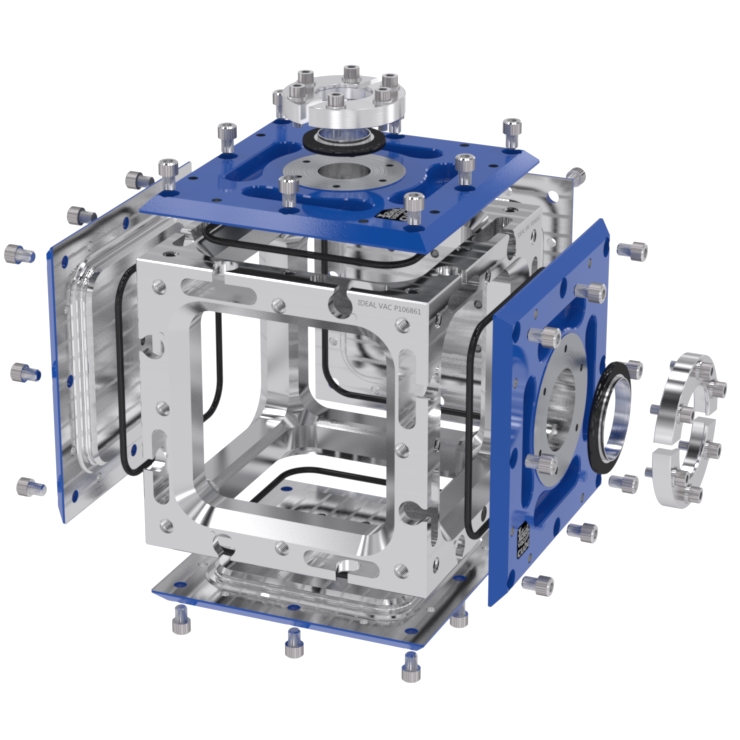

Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.
Features:
The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766).
Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals.
Features:
- 6" x 6" plate
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- One centered ISO-F 63 port with 5/16-18 tapped mounting holes
- No internal optical breadboard
- Mounts in any orientation
- 6x6x6
- 6x6x12
- 6x6x6 hexagon
- 6x6x12 hexagon
- 6x6x12 octagon
