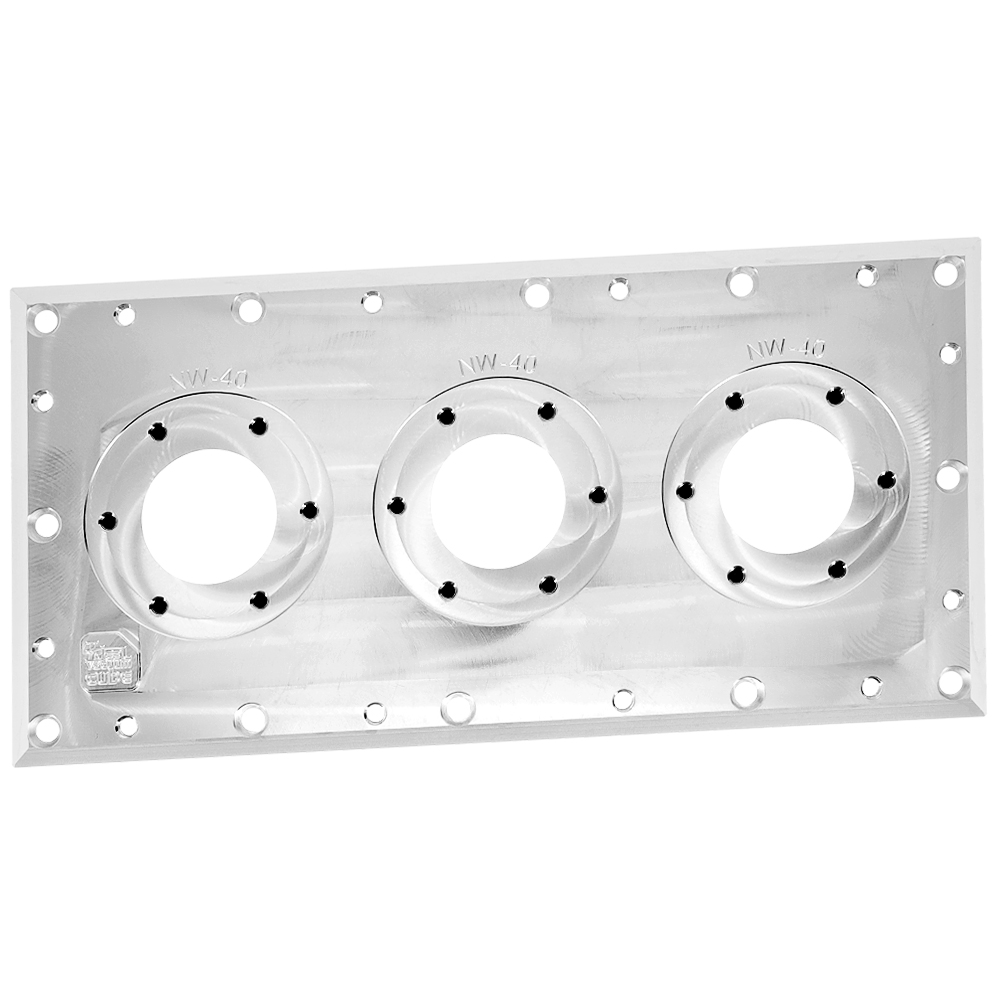

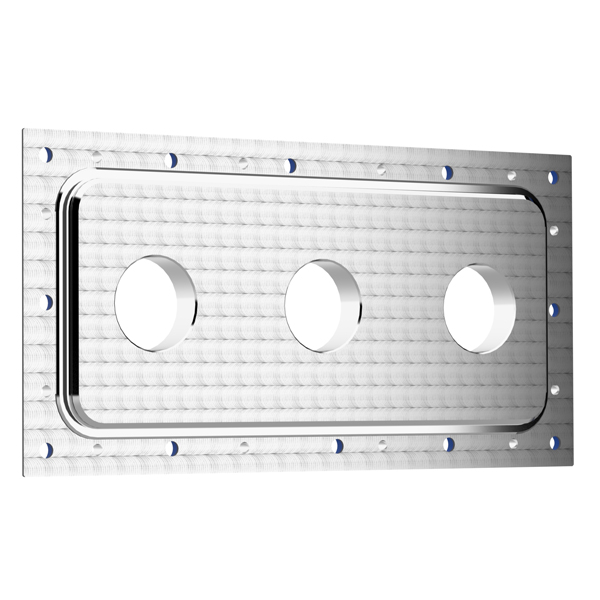

This is an Ideal Vacuum Cube 6 x 12 inch plate with three KF-40 bulkhead ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.

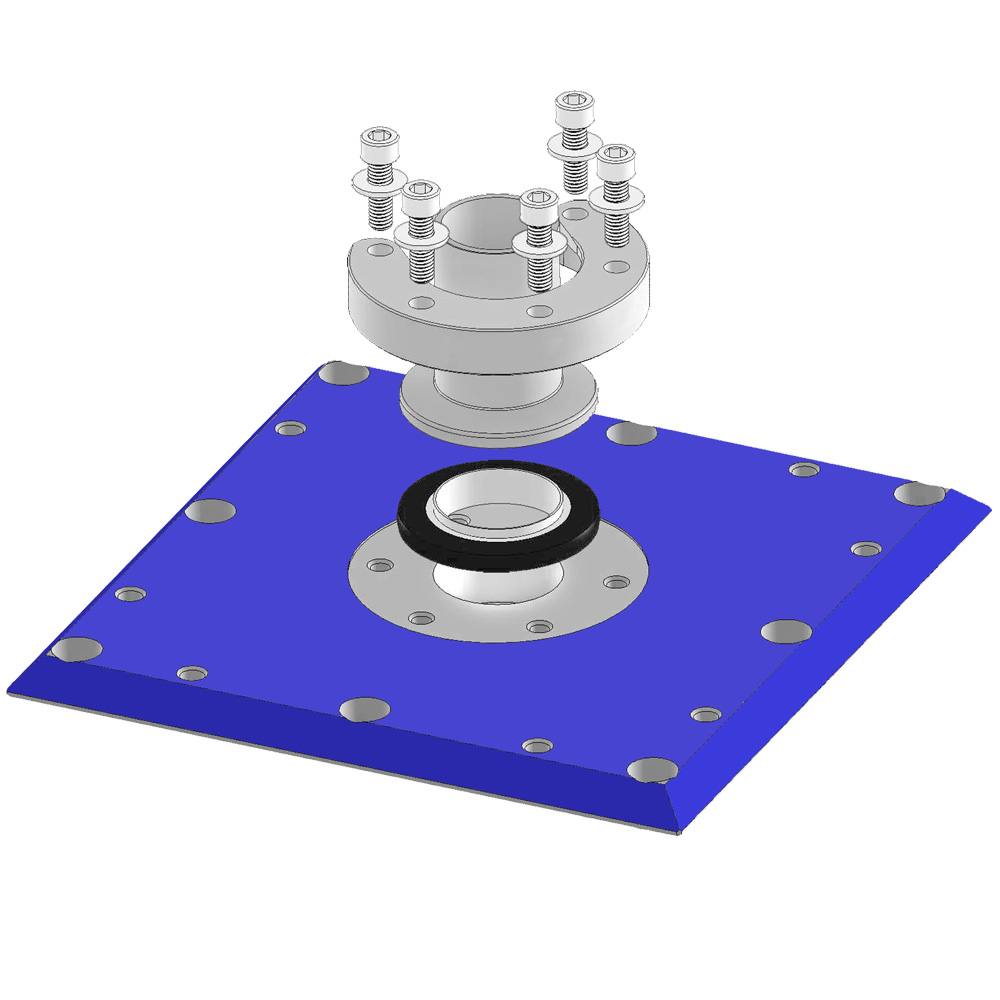

SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600).
Features:
SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600).
Features:
- 6" x 12" plate
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- Triple KF-40 (NW-40) bulkhead ports (uses KF-40 bulkhead clamps and centering rings)
- Internal optical breadboard
- Mounts in any orientation
- 6x6x12
- 6x12x12
- 6x6x12 hexagon
- 6x6x12 octagon
