NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS!

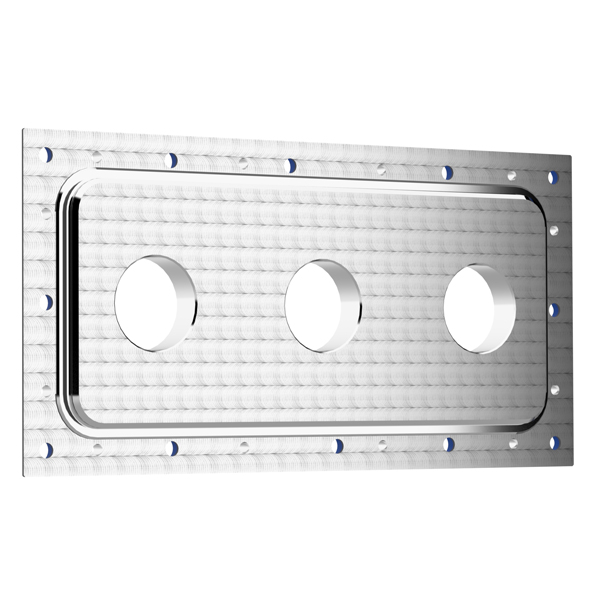

This is an Ideal Vacuum Cube 6 x 12 inch plate with three CF 2.75" centered Conflat ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring.
This Conflat CF ported plate has 1/4-28 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat ports each require six (6) 1/4-28 x 7/8" long, silver-plated, 12 point bolts (P104404). The CF ports are not compatible with metal gaskets. Use only Viton seals (P104341). Cube baseline vacuum is 1 x 10-7 Torr.
Features:
This Conflat CF ported plate has 1/4-28 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat ports each require six (6) 1/4-28 x 7/8" long, silver-plated, 12 point bolts (P104404). The CF ports are not compatible with metal gaskets. Use only Viton seals (P104341). Cube baseline vacuum is 1 x 10-7 Torr.
Features:
- 6 x 12 plate
- 6061-T6 aluminum
- Uncoated for bakeout to 150°C
- Triple CF 2.75" ports with 1/4-28 UNF tapped holes
- No internal optical breadboard
- Mounts in any orientation

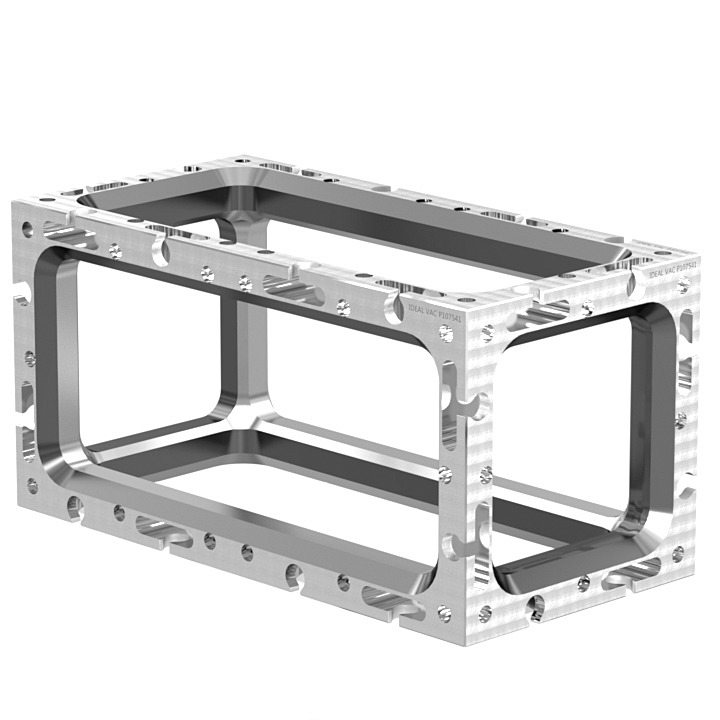

- 6x6x12
- 6x12x12
- 6x6x12 hexagon
- 6x6x12 octagon
