Ideal Vacuum Cube 6 x 12 Vacuum Chamber Plate with One KF-50 (NW-50) Port
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

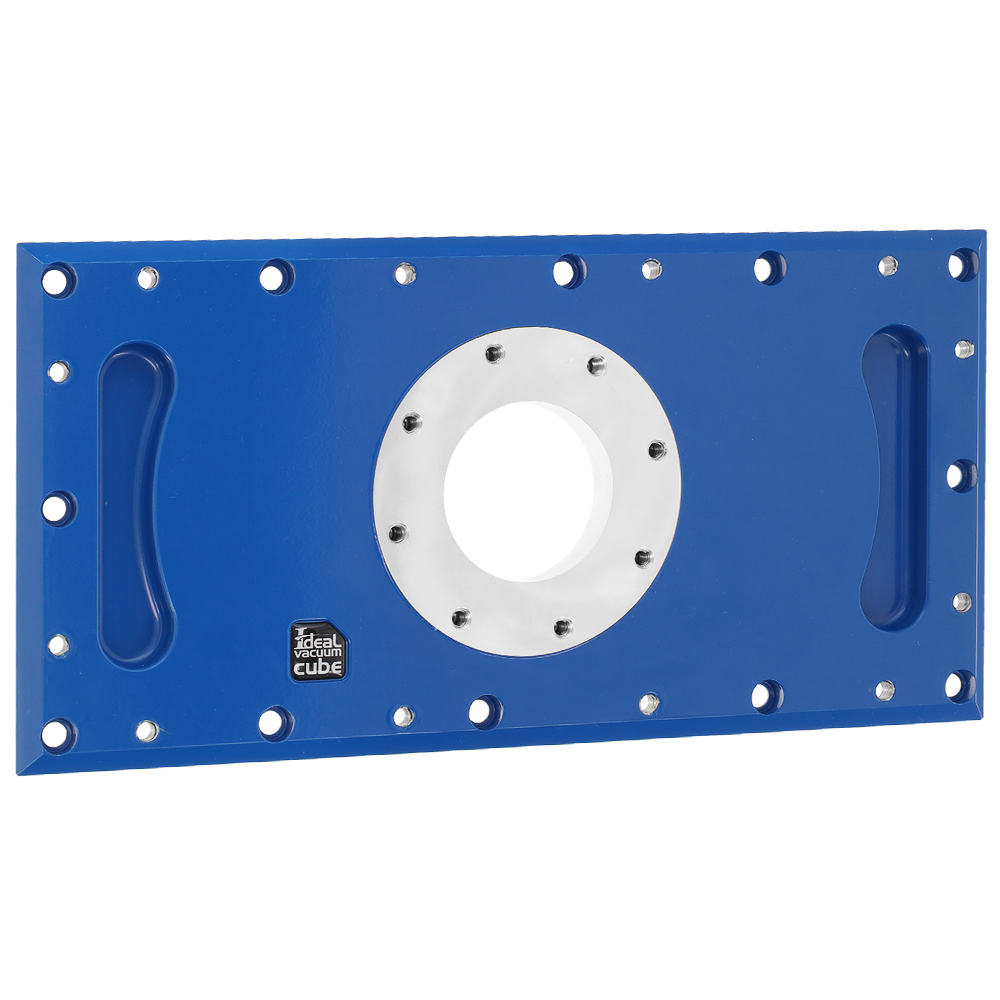

This is an Ideal Vacuum Cube 6 x 12 inch plate with one KF-50 centered bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue.

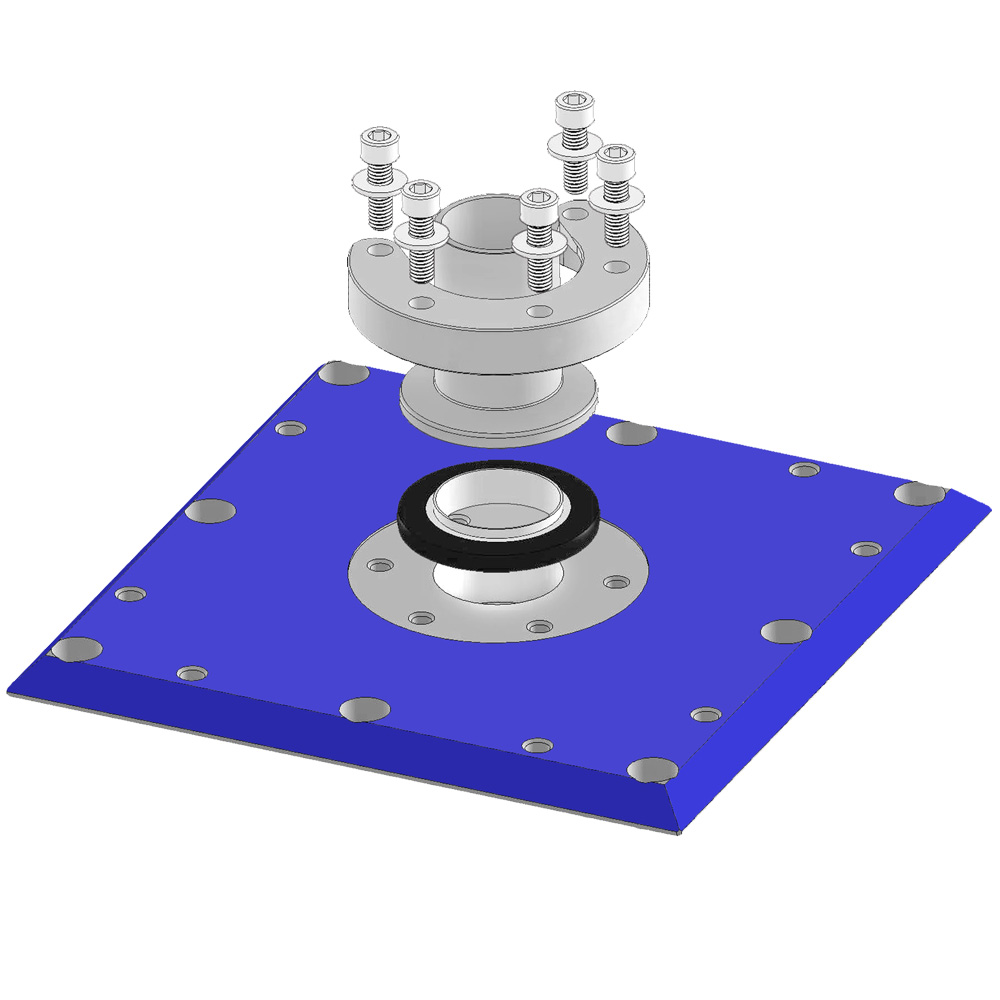

SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-50 centering ring (P101245) and bulkhead clamp (P108104 or P104601).
SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-50 centering ring (P101245) and bulkhead clamp (P108104 or P104601).
- KF-16 uses centering ring (P101242) and bulkhead clamp (P104598 or P108101)
- KF-25 uses centering ring (P101243) and bulkhead clamp (P108102 or P104599)
- KF-40 uses centering ring (P101244) and bulkhead clamp (P108103 or P104600)
- 6 x 12 plate
- 6061-T6 aluminum
- Blue powdercoat
- One KF-50 port (uses KF-50 bulkhead clamp and centering ring)
- Internal optical breadboard
- Mounts in any orientation
- 6x6x12
- 6x12x12
- 6x6x12 hexagon
- 6x6x12 octagon
