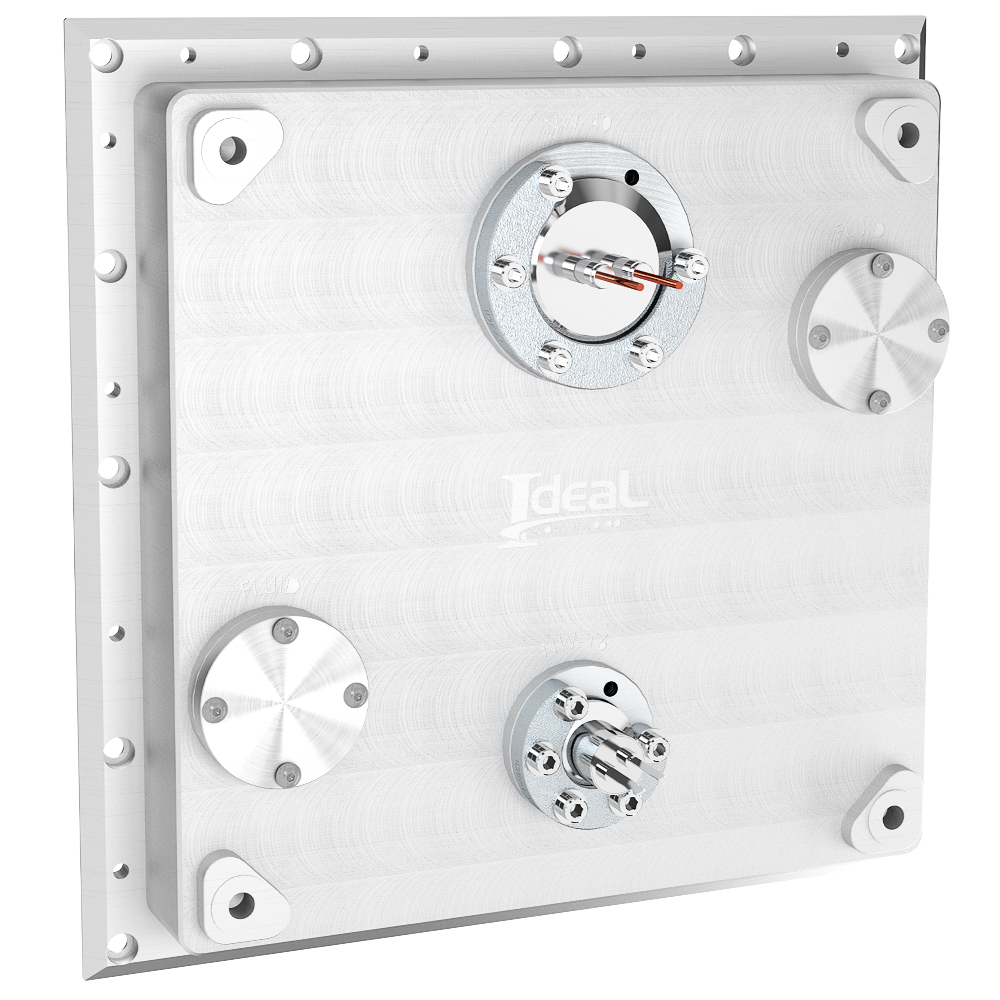

This is a thermally isolated Ideal Vacuum Cube 12 x 12 inch TVAC plate for high temperatures. The plate has embedded resistive heating elements for elevated temperatures. The heaters operate at 100-240 VAC. The operating temperature range of this plate is from ambient to 200°C (392°F). A Type-K thermocouple is mounted through a KF-16 port for logging temperature data or for a user supplied setpoint controller to use. The KF-40 port is used to connect the heating elements to an outboard controller, such as the Ideal Vacuum PID Plug & Play Heater Control System. This plate is uncoated and may be baked out to 150°C (the limit of the Viton O-ring).

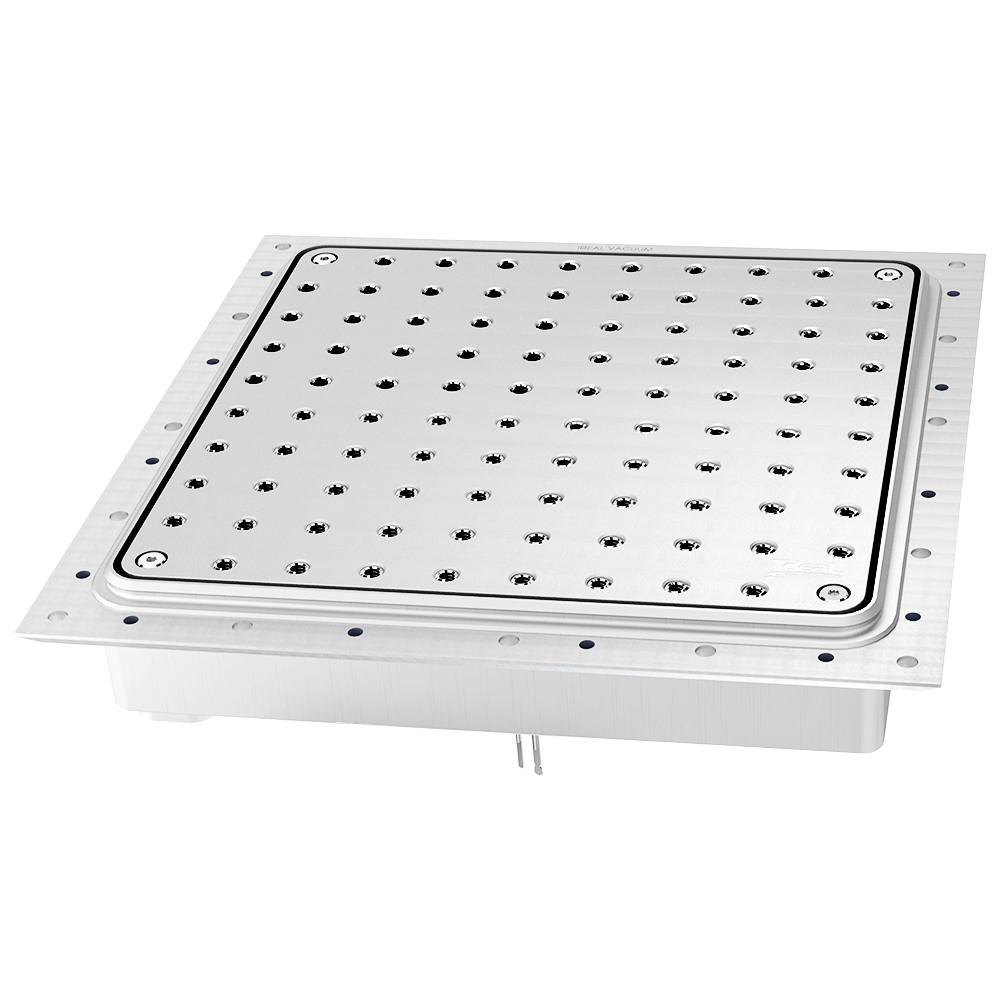

The core of the plate is made of 304L stainless steel and has an optical breadboard on the vacuum side with a 10.275" x 10.275" temperature-controlled area. The plate's thermally isolated core allows it to be operated between ambient and 200°C (392°F) without compromising vacuum seal integrity. The plate is designed to occupy minimal volume within the Cube envelope and may be mounted in any orientation.
Features:
Swagelok-TM Swagelok Company
The core of the plate is made of 304L stainless steel and has an optical breadboard on the vacuum side with a 10.275" x 10.275" temperature-controlled area. The plate's thermally isolated core allows it to be operated between ambient and 200°C (392°F) without compromising vacuum seal integrity. The plate is designed to occupy minimal volume within the Cube envelope and may be mounted in any orientation.
Features:
- 12" x 12" plate size
- Uncoated 6061-T6 aluminum plate
- Built-in resistive heating elements
- Operating temperature range ambient to 200°C (392°F).
- Stainless steel vacuum isolated10.275" x 10.275" temperature-controlled core
- Built-in Type-K thermocouple
- Bakeout to 150°C
- Internal optical breadboard
- Mounts in any orientation
- 12 x 12 x 12
- 6 x 12 x 12 (on 12 x 12 side)
- 24 x 24 x 24
