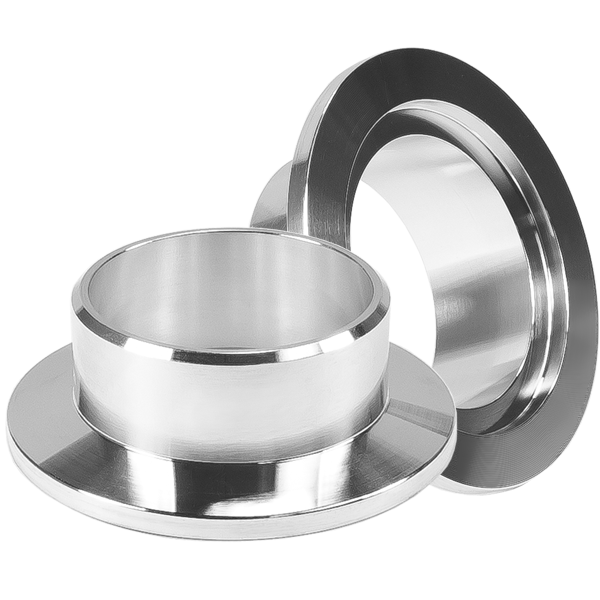

Half Nipple Short Weld Stub 1.5 inch OD KF-40 Vacuum Fittings, ISO-KF Flange Size NW-40, Aluminum
Half Nipple Short Weld Stub
ISO-KF Flange Size: NW-40

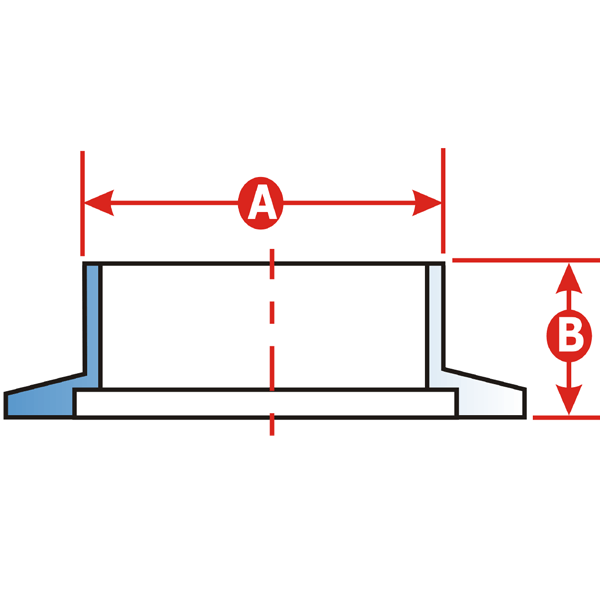

Common Dimensions: A = 1.50"(38mm), B = 0.75"(19mm) For Tubing OD 1.5"
Material: Aluminum

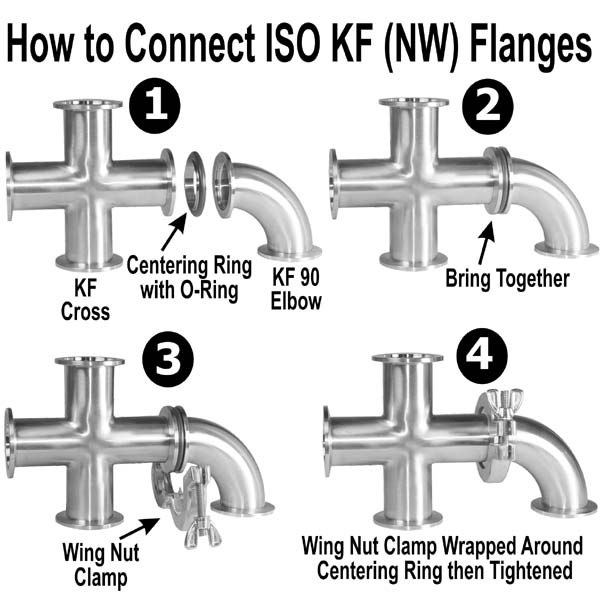

These 1.5 inch OD KF-40 Half Nipple Short Weld Stub fittings follow ISO-KF standards and have a flange size of NW-40. They are commonly used to build foreline vacuum plumbing and process systems. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges (please see top right figure - click to enlarge). The centering ring contains a rubber elastomer o-ring. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of Aluminum.
Half Nipple Short Weld Stub
ISO-KF Flange Size: NW-40
Common Dimensions: A = 1.50"(38mm), B = 0.75"(19mm) For Tubing OD 1.5"
Material: Aluminum
