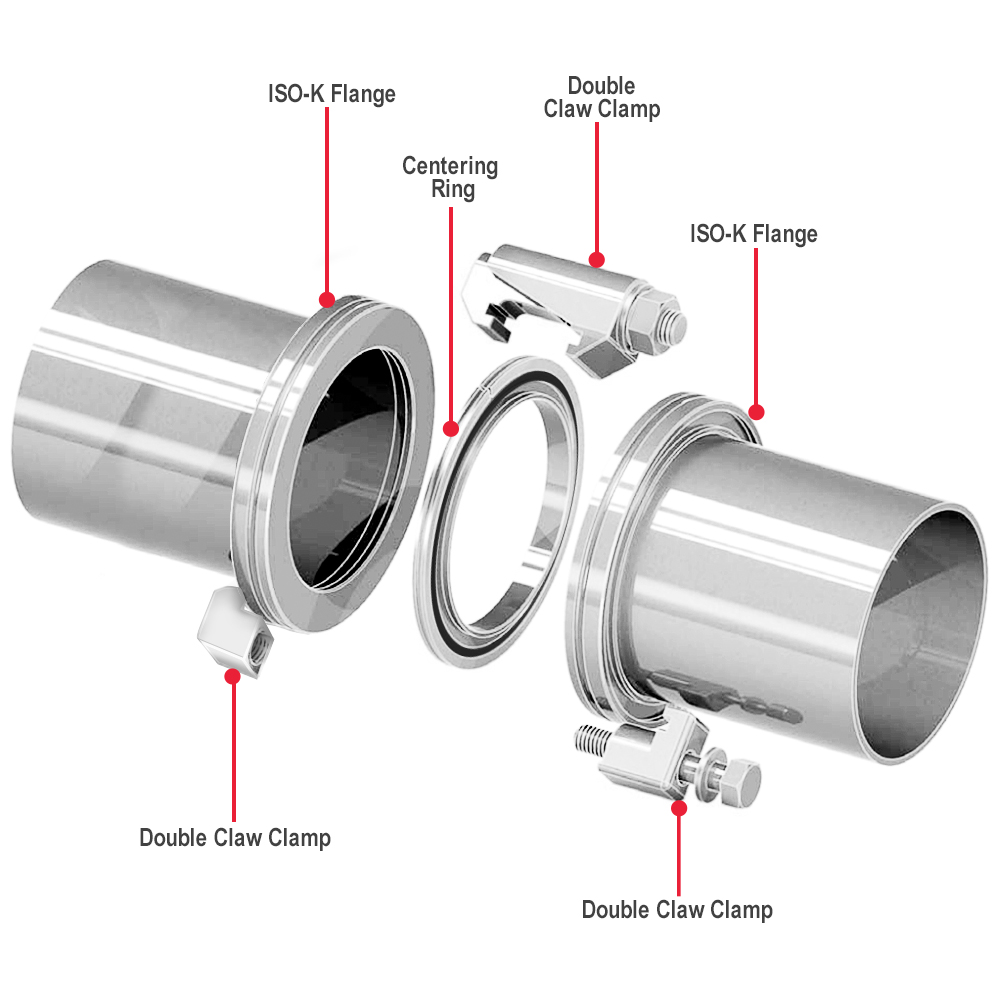

These half nipple weld stubs follow International Standards Organization (ISO) standards and have a flange size of NW-320. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum flanges are made of stainless steel.

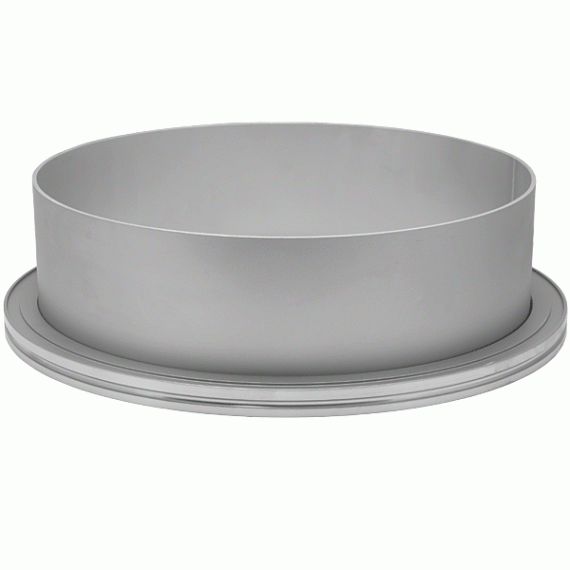

Half Nipple, NW-320 Vacuum Fittings, ISO-LF Large Flange Size NW-320, Stainless Steel
ISO-LF Flange Size: NW-320
Dimensions:
A= 12.40 in.
B= 12.60 in.
C= 4 in.
Material: Stainless Steel
