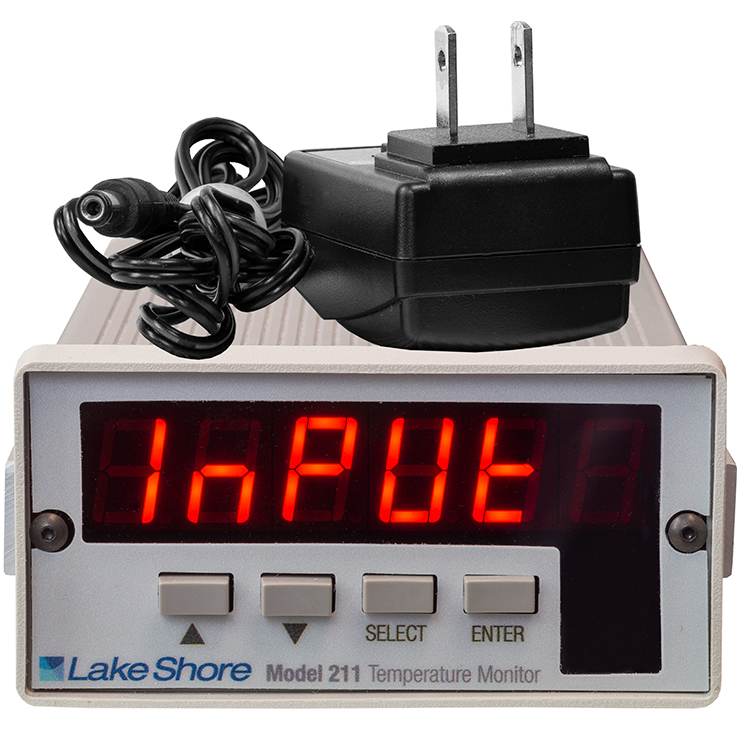

This Lake Shore single-channel Model 211 temperature monitor provides the accuracy, resolution, and interface features of a benchtop temperature monitor in an easy to use, easily integrated, compact instrument. With appropriate sensors, the Model 211 measures temperature from 1.4 K to 800 K including temperatures in high vacuum and magnetic fields. Alarms, relays, user-configurable analog voltage or current output, and a serial interface are standard features on the Model 211. It is a good choice for liquefied gas storage and monitoring, cryopump control, cryo-cooler, and materials science applications, and for applications that require greater accuracy than thermocouples allow. CONNECTS to the CVI TM 500 CryoPump. See Downloads to the side for 211 User Manual.pdf
-
Features:
- AC Power Supply 110-220 VAC 50-60hz, 5V 6w
- Operates down to 1.2 K with appropriate sensor
- One sensor input
- Supports diode and RTD sensors
- 0 V to 10 V or 4 mA to 20 mA output
- Large 5-digit LED display

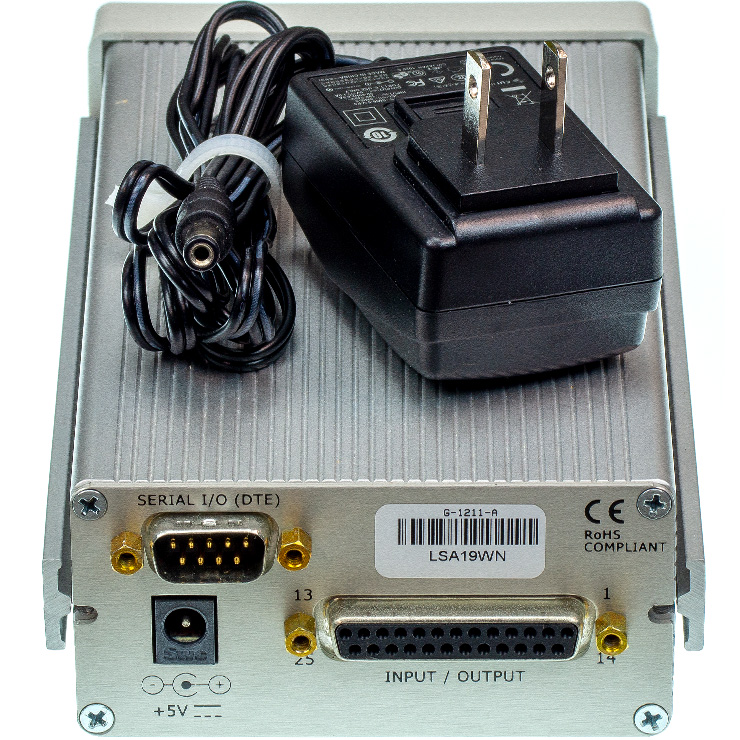

- RS-232C serial interface and alarm relays
- 25 pin D-sub input connector (input cable sold separately)
