Germanium Replacement Window for Glass Vacuum Gas Cell, 1" OD, 0.197" Thickness.
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
This listing is for the sale of one (1) replacement window for an Ideal Vacuum Glass Vacuum Gas Cell with the following characteristics:
These windows are suitable for IR laser applications. The 0.5° wedge helps prevent unwanted etalon effects, fringe patterns, and cavity feedback. These windows are uncoated for use over their entire optical range.
Germanium Properties
- Material: Germanium.

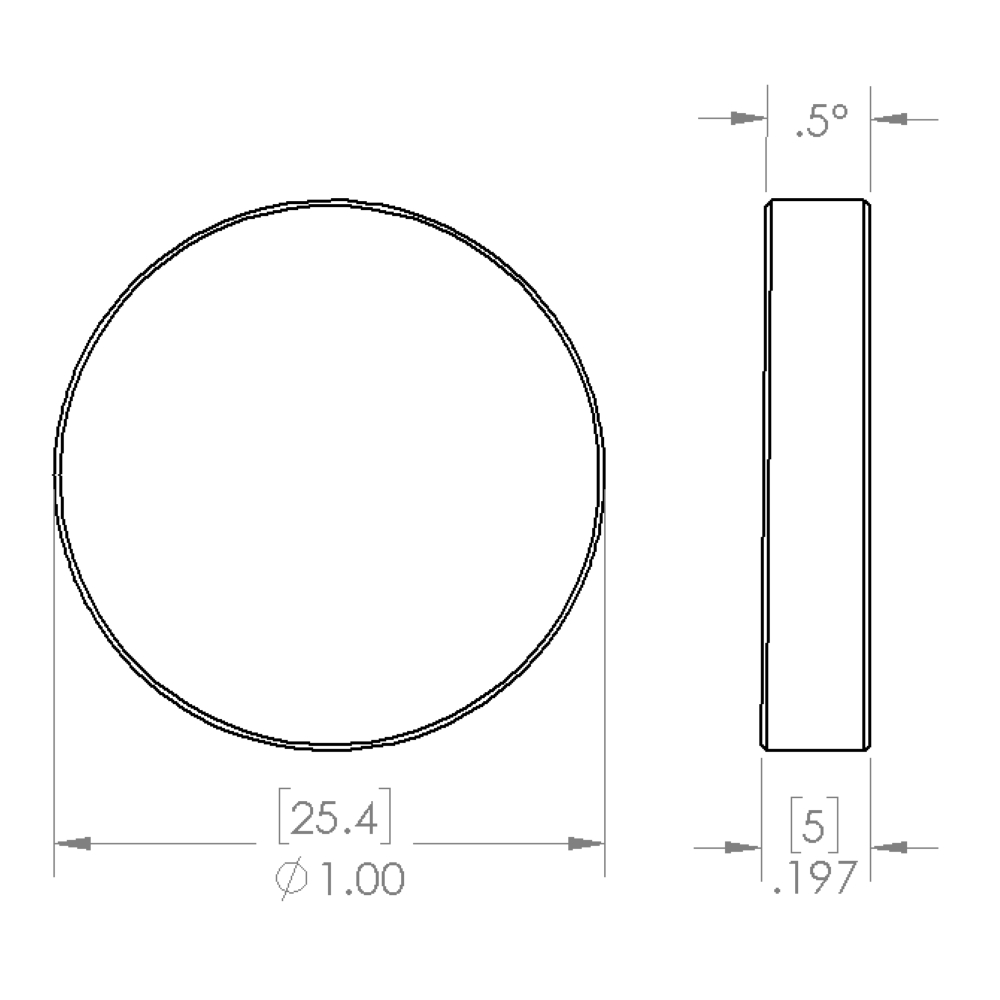

- Dimensions: 1" (25.4 mm) OD, 0.197" (5 mm) Thickness.
- 0.5° Wedge Between Transmitting Surfaces.
- Surface Flatness: λ/2 Over Central 10 mm, λ Over Entire Clear Aperture.
These windows are suitable for IR laser applications. The 0.5° wedge helps prevent unwanted etalon effects, fringe patterns, and cavity feedback. These windows are uncoated for use over their entire optical range.
Germanium Properties
| Optical |
| Chemical behavior of polished surfaces |
