Edwards Mounting Kit Adapts EPS 800 Power Supply to side of nEXT Turbo Pumps. PN: B8J200832

Write a review
$70481
In stock
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price
Edwards Mounting Kit Adapts EPS 800 Power Supply to side of nEXT730D, nEXT930D, and nEXT1230H Turbo Pumps.
Edwards Part Number: B8J200832.

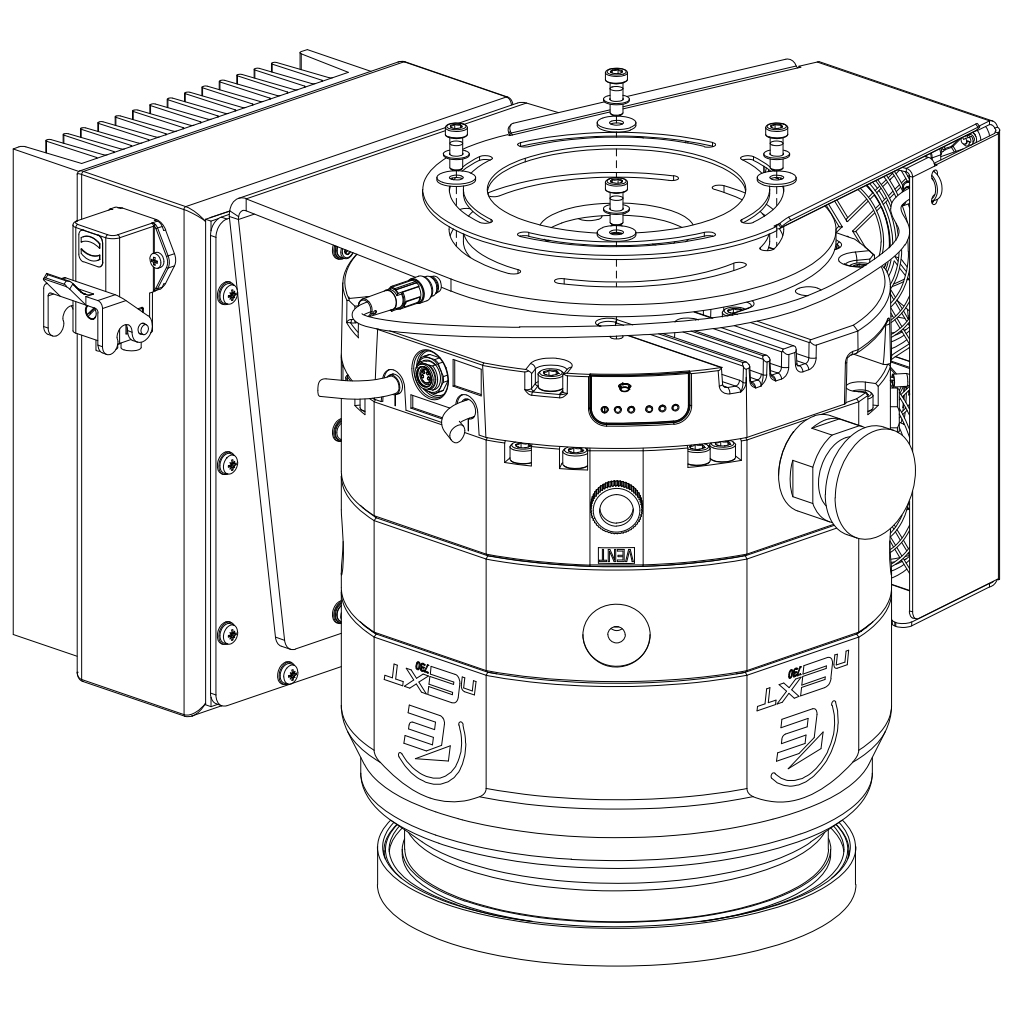

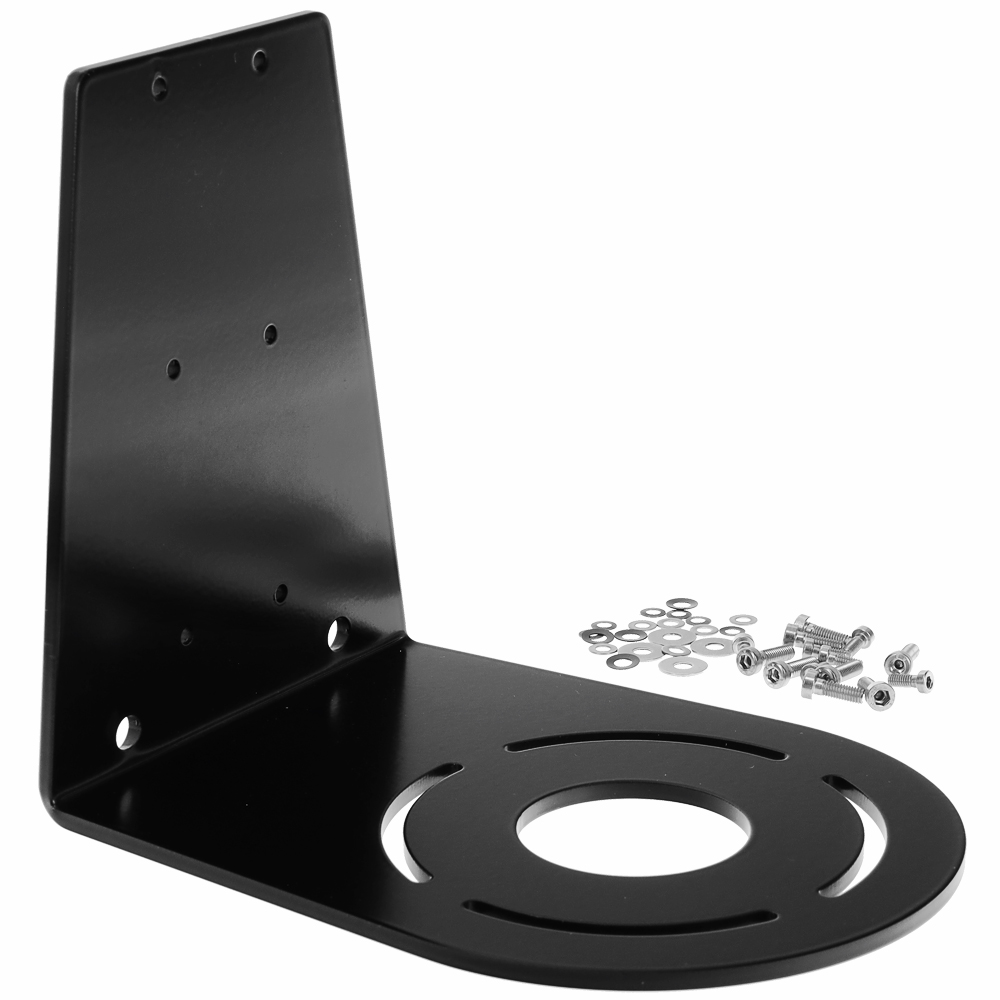

This Edwards adaptive mounting kit is required for the EPS 800 power supply to be mounted to the side of nEXT730D, nEXT930D, or nEXT1230H turbo pumps. Mounting hardware is included. The radial air cooling unit for these turbo pumps (730D and 930D pumps, part number P1012350) can be used in combination with this mounting kit. This mounting kit has edwards part number B8J200832.

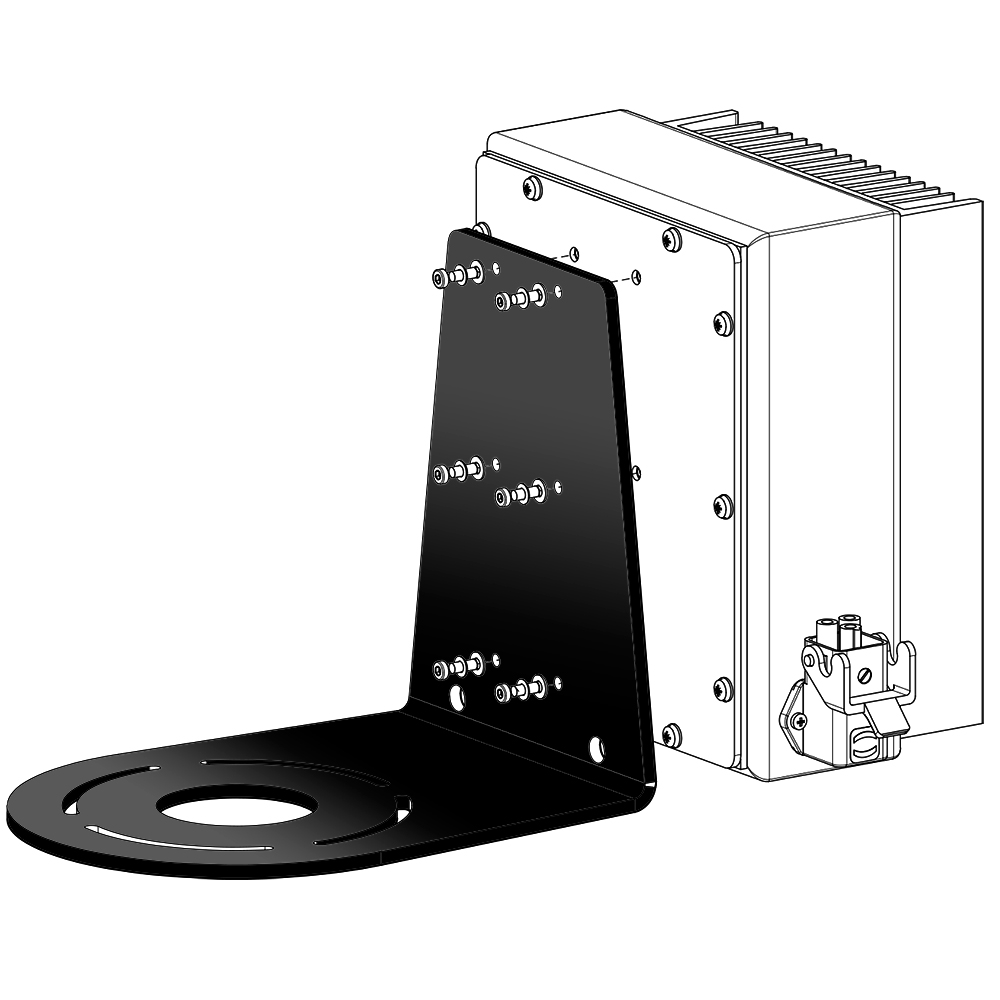

When the EPS 800 power supply is mounted directly to the pump with this mounting kit, the pump's 0.6 meter long permanently attached power cable is used to connect the pump directly to the power supply. A pump-to-power supply extension cable is not needed.

This mounting kit can be used on these pumps:
  • nEXT730D
  • nEXT930D
  • nEXT1230H

P61012528.sldprt (P61012528.sldprt, 109 Kb) [Download]

P61012528.step (P61012528.step, 154 Kb) [Download]

Edwards_EPS_800_Power_Supply_Instruction_Manual.pdf (Edwards_EPS_800_Power_Supply_Instruction_Manual.pdf, 499 Kb) [Download]

Edwards_nEXT730D_nEXT930D_nEXT1230H_Turbo_Pumps_Instruction_Manual.pdf (Edwards_nEXT730D_nEXT930D_nEXT1230H_Turbo_Pumps_Instruction_Manual.pdf, 3,880 Kb) [Download]

Edwards_nEXT730_nEXT930_nEXT1230_Turbo_Pump_Datasheet.pdf (Edwards_nEXT730_nEXT930_nEXT1230_Turbo_Pump_Datasheet.pdf, 309 Kb) [Download]

Edwards_nEXT_730D_930D_Turbo_Pump_Air_Cooler_Manual.pdf (Edwards_nEXT_730D_930D_Turbo_Pump_Air_Cooler_Manual.pdf, 520 Kb) [Download]

Edwards_nEXT_Turbomolecular_Pump_Entire_Range_Brochure.pdf (Edwards_nEXT_Turbomolecular_Pump_Entire_Range_Brochure.pdf, 2,984 Kb) [Download]
