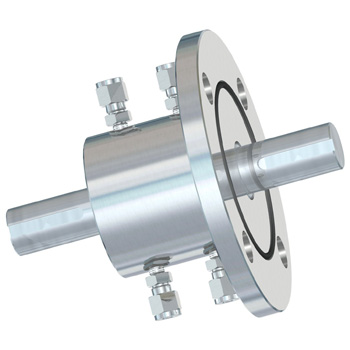

This is a 1" solid shaft Ferrotec Ferrofluidic seal feedthrough model SS-1000-SLFAW (part number 121159).The SS-1000-SLFAW vacuum rotary feedthrough features a solid shaft with 6" Ferro Flange mounting diameter, flange thickness is 0.53", shaft torque capacity is 1960 in-lb, starting torque at 100 rpm is 29.2 in-oz, and a running torque of 17.3 in-oz.

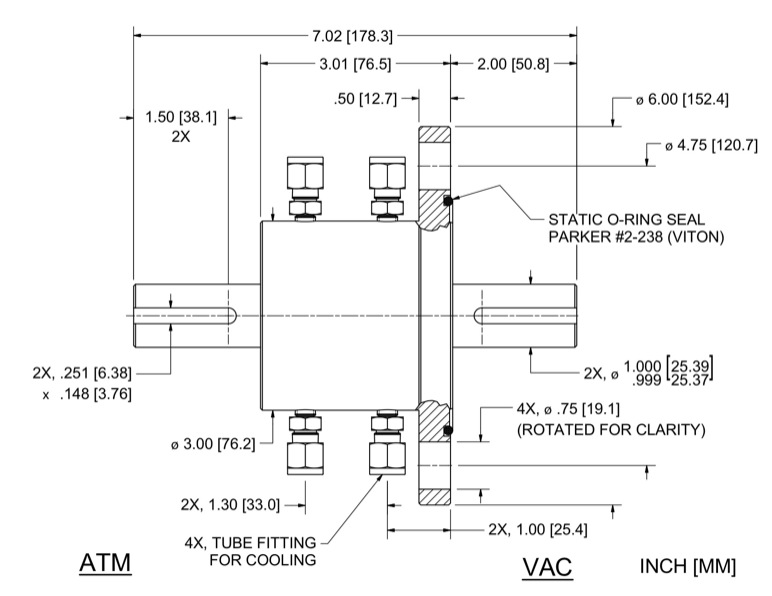

Full dimensional details are specified below. This vacuum seal is also water-cooled for high-temperature applications. The SS-1000-SLFAW vacuum rotary feedthrough uses Ferrotec’s standard hydrocarbon-based ferrofluid, specifically optimized for introducing rotary motion with a magnetic liquid hermetic seal in most Standard environments.For precision measurement specifications, refer to the Spec Control Drawing.
Ferrotec Model: SS-1000-SLFAW, PN:121159
