Leybold Intake Flange Heater Band, CF 8.0 Inch, DN 160 CF, 115 VAC, for TURBOVAC 450i and 850i Turbo Pumps. PN: 800137V0008
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Save 20%
Leybold Part Number: 800137V0008.

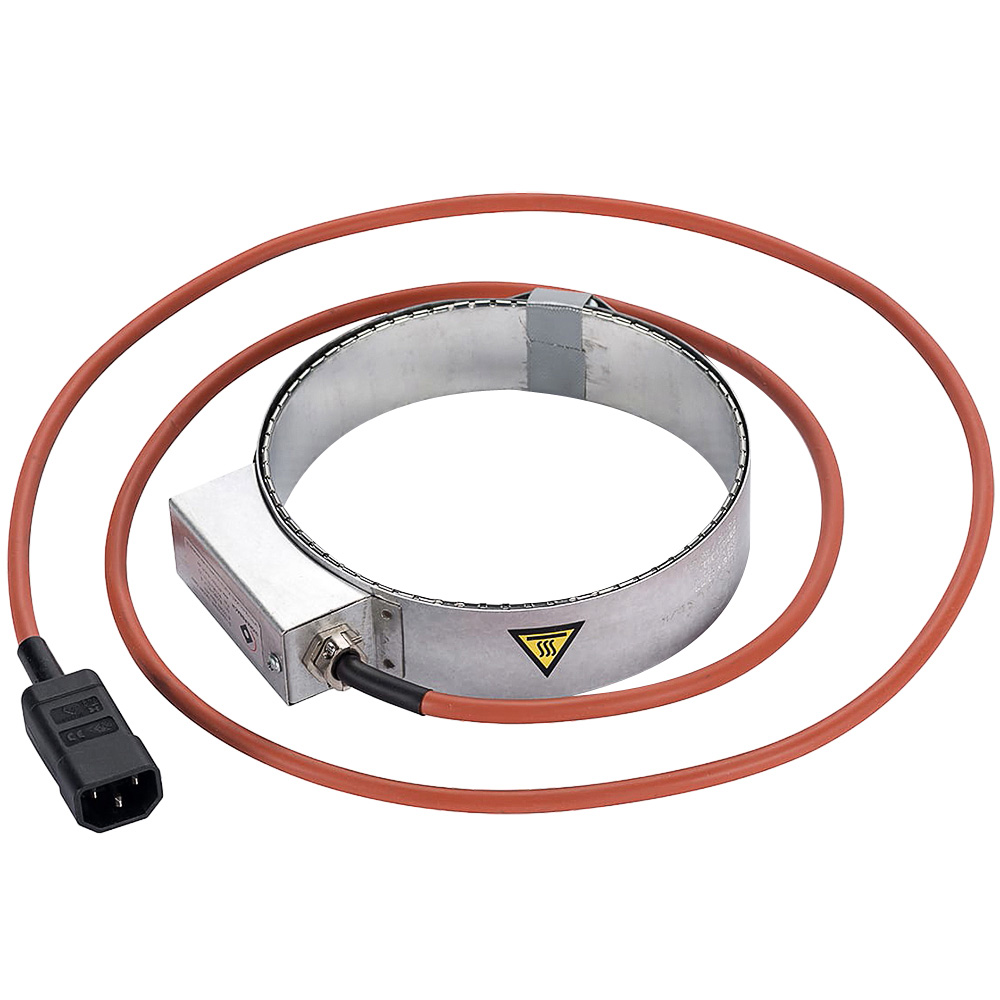

This is a 115 VAC Leybold intake flange heater for the TURBOVAC 450i and 850i turbo pumps with CF 8.0 inch flange (DN 160 CF). The intake flange may be baked up to 100 °C if the turbo pump is water cooled. Operate the pump with water cooling when baking out. Do not use this intake flange heater band on an air cooled pump - damage to the pump will occur. The band heater has an attached 1m power cable terminated with a C19 power entry plug (male C19).
We recommend using the Ideal Vacuum PID plug and play heater controller (part number P107361). The heater band power cable will plug directly into it. The input voltage of the controller must be the same as the heater. The P107361 controller includes a 115 VAC input power cable with a 5-20P (20A) plug.
Heater Band Specs:
We recommend using the Ideal Vacuum PID plug and play heater controller (part number P107361). The heater band power cable will plug directly into it. The input voltage of the controller must be the same as the heater. The P107361 controller includes a 115 VAC input power cable with a 5-20P (20A) plug.
Heater Band Specs:

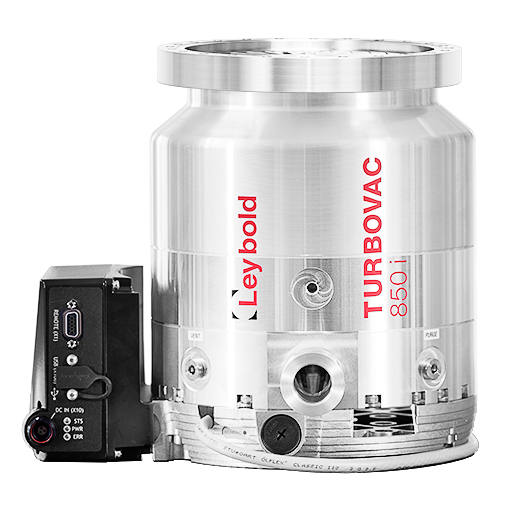

- Fits: TURBOVAC 450i and 850i turbo pumps with CF 8.0 in. flange (P109070 and P1012433)
- Water Cooling Option (required): P109163 or P1012447 (450i), P1012452 (850i)
- Heater Band Voltage: 115 VAC
- Recommended Controller: Ideal Vacuum P107361 (115 VAC power cord with 5-20P plug included)
