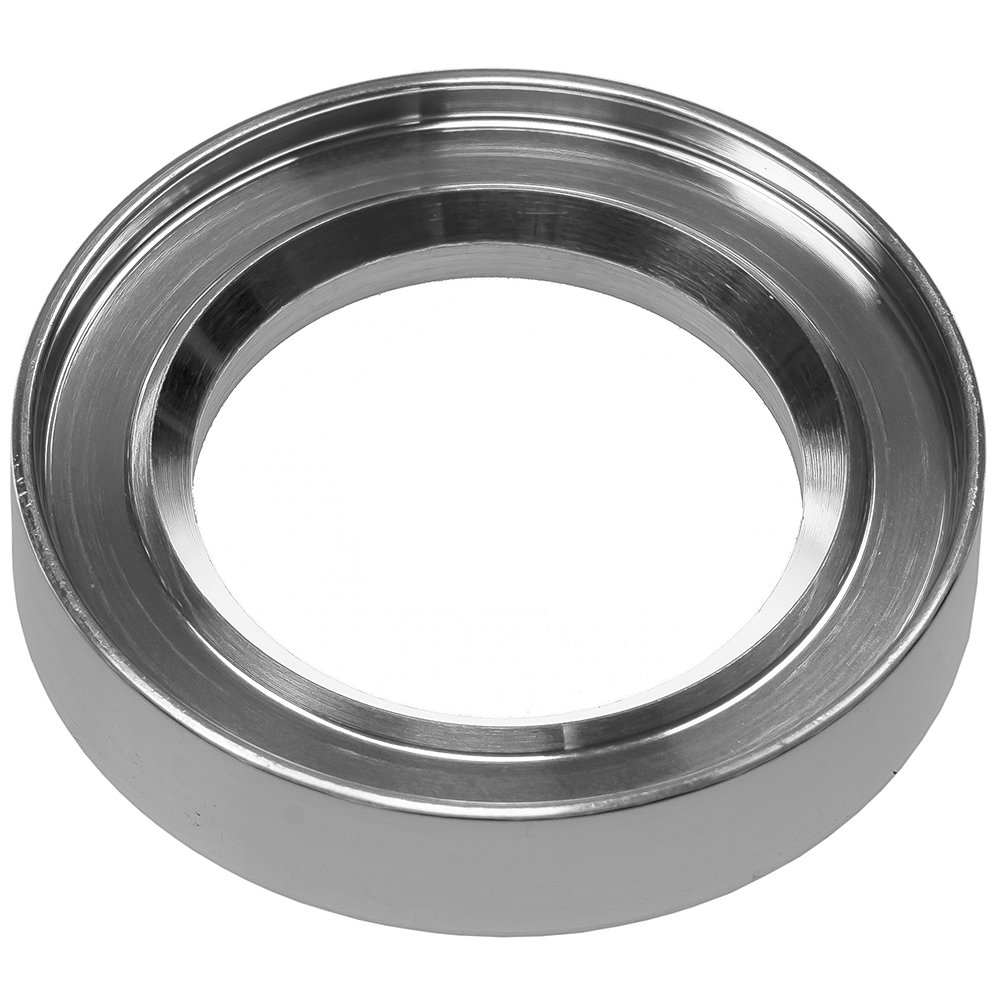

EVAC Aluminum Metal Knife Edge OUTER Seal NW16 KF16 for UHV Seal PN NW-16-MS-A
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
EVAC Aluminum metal OUTER seal for converting elastomer (Viton/Buna) rubber seal NW16 KF16 to UHV (Ultra High Vacuum) Seal - PN NW-16-MS-A
This EVAC Aluminum Metal OUTER Seal NW16 KF16 flange is for converting Elastomer (Viton/Buna) rubber seals to UHV (Ultra High Vacuum) aluminum metal seals. This allows for a lower vacuum compared to elastomer (Viton/Buna) rubber seals. Other benefits include: reduced outgassing, no permeation , no hydrocarbons, and resistance to radiation and higher heat. The resultant UHV seal has a helium leak rate of less than 1 X 10 -11 standard cc/sec. They can also be baked repeatedly to 150°C (302°F). The EVAC chain clamp and an aluminum knife edge seal form the UHV vacuum seal between the connecting KF flanges. (please see far right graphic above - click to enlarge). This EVAC metal seal is made of aluminum. This is a KF16 NW16 aluminum metal knife edge seal only, the stainless steel chain clamp IS NOT included but available on this website. For a complete explaination of this UHV Seal and dimensions of the aluminum metal knife edge seal, download the EVAC Flange Brochure .pdf below.
