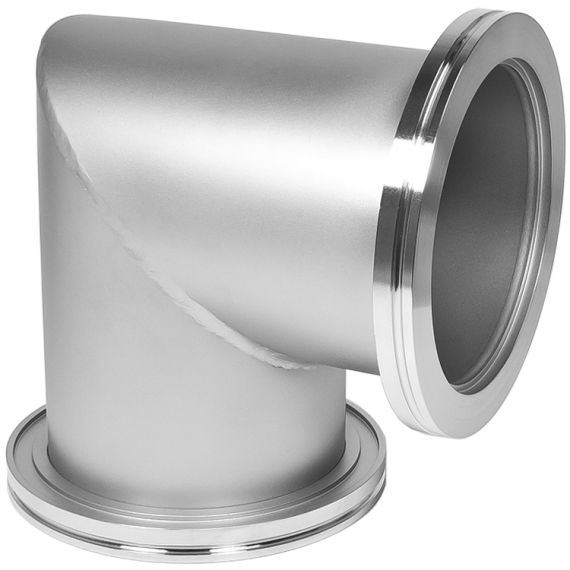

Elbow Mitered 90 Degrees, Long, NW-100 Vacuum Fitting, ISO-LF Large Flange NW-100, Stainless Steel
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
PN: A2506305E0001002

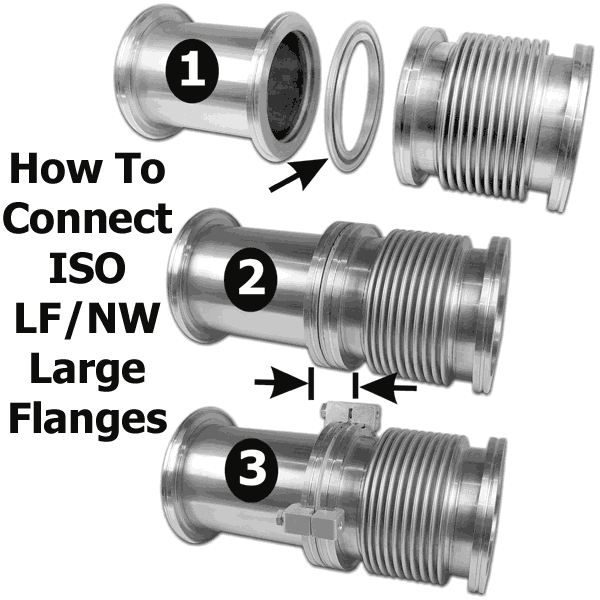

ISO (International Standards Organization) flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see images - click to enlarge). The centering ring contains a Viton® rubber/elastomeric o-ring. ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant 304 stainless steel.

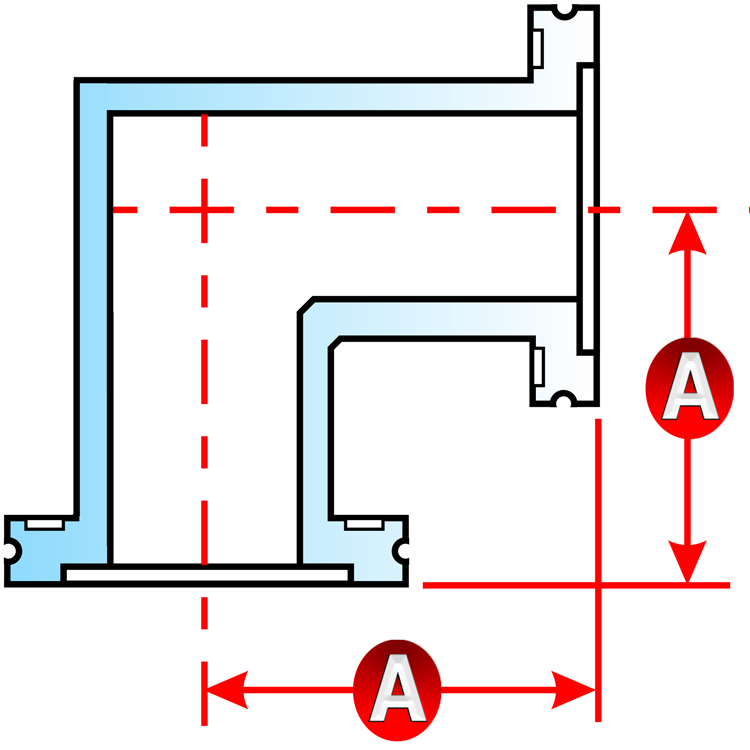

Specifications & Dimensions:
Flange Size: ISO LF NW-100
A: 4.250" (108 mm)
