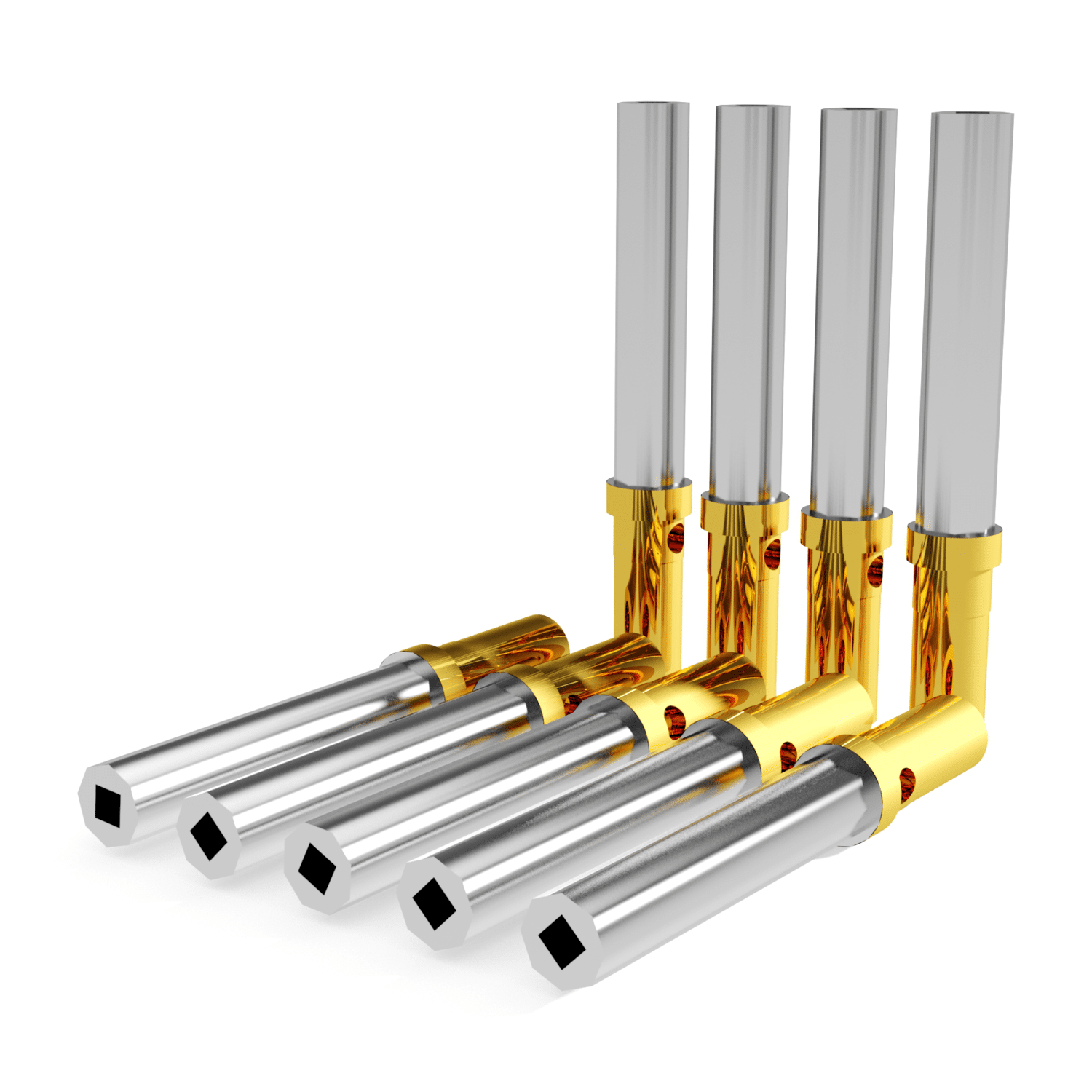

EK-SUBD-F-AWG18-25ST Sub-D Sub-D
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Sub-D, crimp contacts |
|---|---|
| Bakeout temperature | 662 °F |
| Max. bakeout temperature | 350 °C |
| Wire termination | Crimp |
| Max. wire cross section | 18 |
| Min. wire cross section | 22 |
| Contact coating | Gold-plated |
| Article no. | 363475 |
| Max. current per contact | 7,5 A |
| Maximum current per contact | 7.5 A |
| Plug connections | Not specified |
| Material contact(s) | Copper alloy |
| Magnetic | No |
| Min. operating temperature | -269 °C |
| Min. operating temperature | -452.2 °F |
| Max. operating temperature | 250 °C |
| Max. operating temperature | 482 °F |
| Outer diameter | 1,8 mm |
| Outer diameter | 0.071 ″ |
| Diameter | 1 mm |
| Diameter | 0.039 ″ |
| Diameter 2 | 1,35 mm |
| Diameter 2 | 0.053 ″ |
| Length | 13,6 mm |
| Length | 0.535 ″ |
| Length 2 | 9,5 mm |
| Length 2 | 0.374 ″ |
| Length 3 | 0,8 mm |
| Length 3 | 0.031 ″ |
| Pieces per set | 25 |
| Purity class | PCS |
