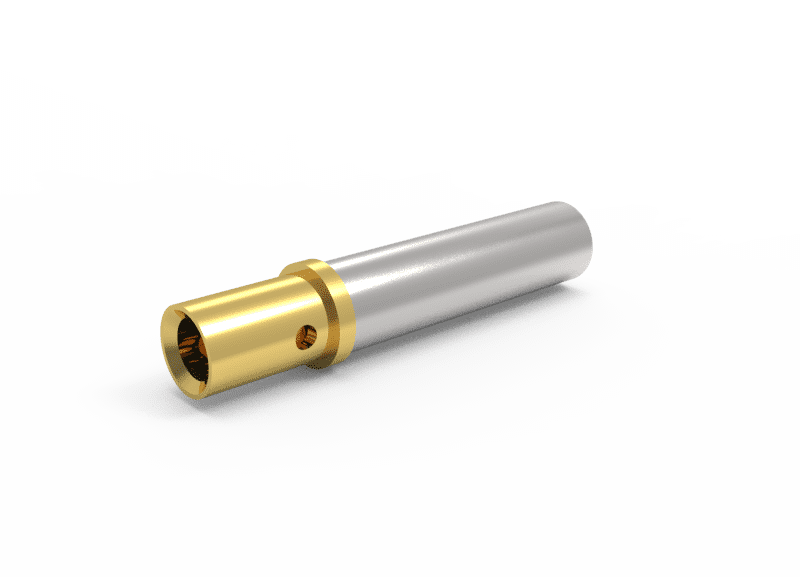

EK-C-CLG24 Crimp Contacts Crimp Contacts
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Crimp contacts |
|---|---|
| Bakeout temperature | 392 °F |
| Max. bakeout temperature | 200 °C |
| Wire termination | Crimp |
| Max. wire cross section | 12 |
| Min. wire cross section | 14 |
| Contact coating | Gold-plated |
| Article no. | 337379 |
| Max. current per contact | 23 A |
| Maximum current per contact | 23 A |
| Impedance | Not specified |
| Plug connections | Not specified |
| Material contact(s) | Copper alloy |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Outer diameter | 4,6 mm |
| Outer diameter | 0.181 ″ |
| Inner diameter | 2,4 mm |
| Inner diameter | 0.094 ″ |
| Diameter | 2,5 mm |
| Diameter | 0.098 ″ |
| Length | 21,7 mm |
| Length | 0.854 ″ |
| Pieces per set | 5 |
| Purity class | PCS |
