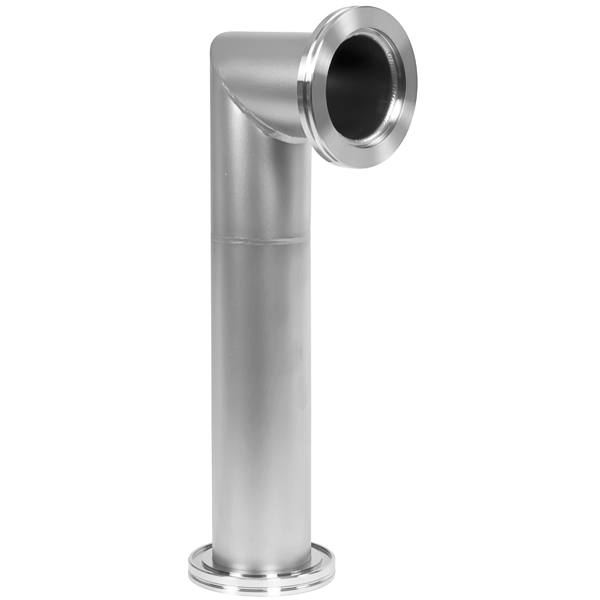

Elbow Mitered 90 Degrees, ISO-63, LF63 NW-63 Vacuum Fittings, 3.5x12.5in, Stainless Steel
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
PN: ISO-02-112

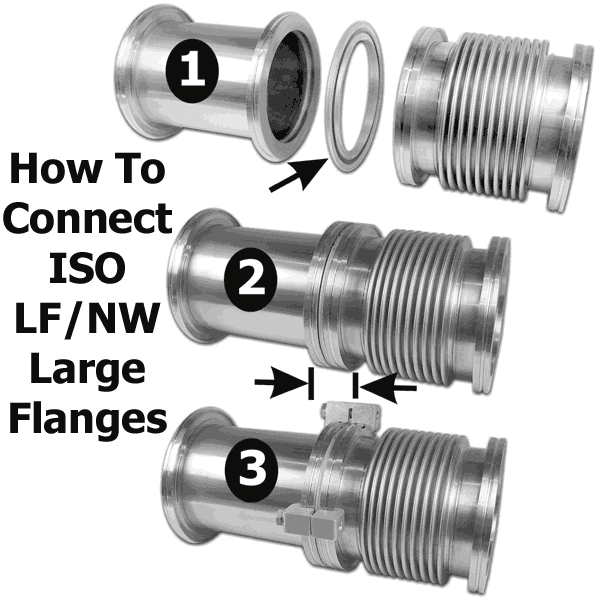

ISO (International Standards Organization) flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant 304 stainless steel.

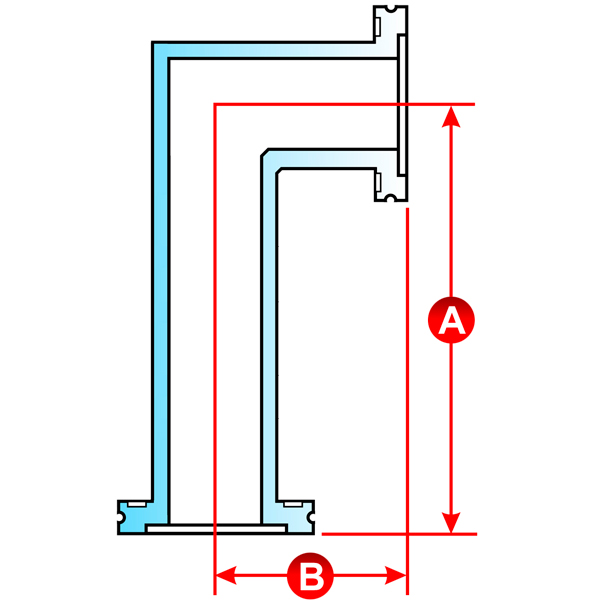

Specifications & Dimensions:
Flange Size: ISO LF NW-63
A: 12.5 inches (88mm)
B: 3.5 inches
