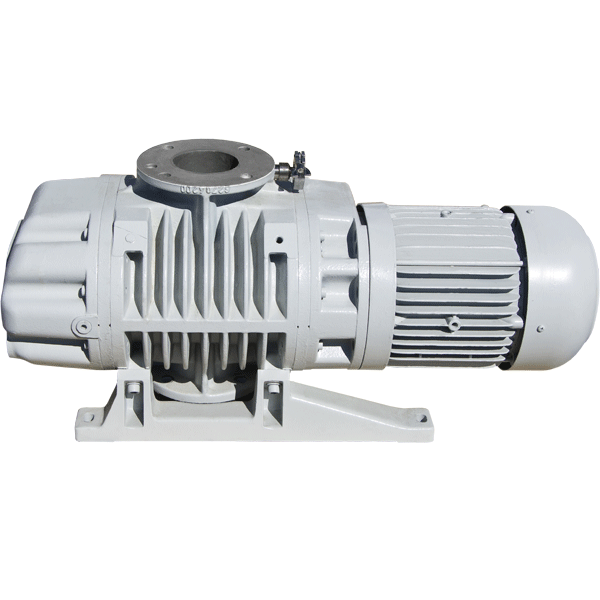

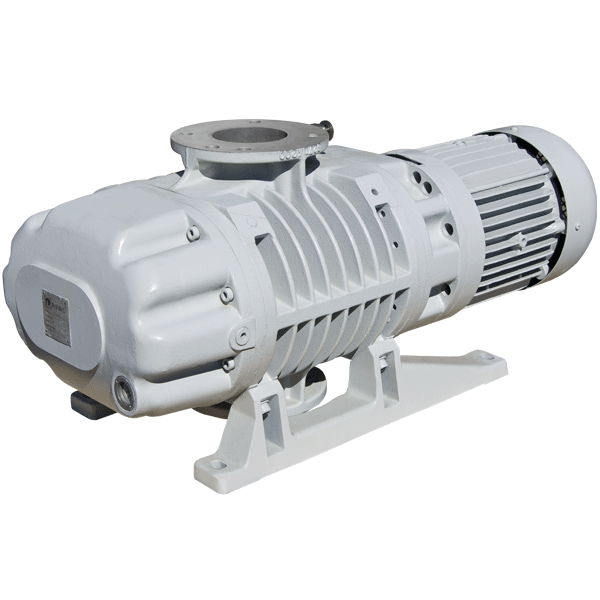

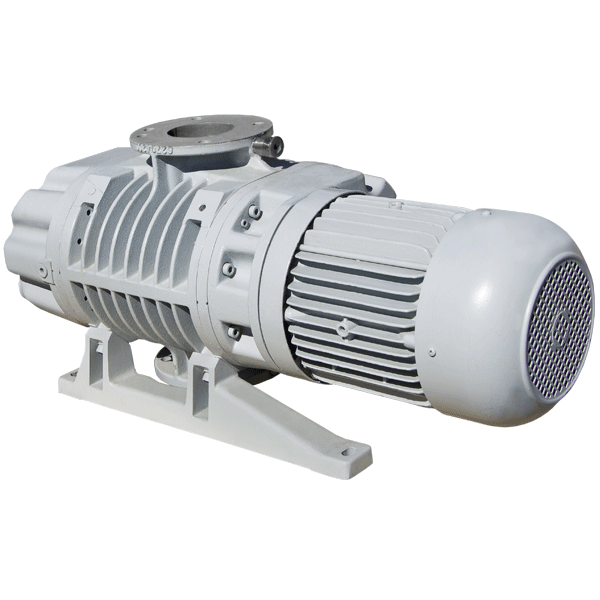

Leybold RuVac WSU 1000 WSU1000 Blower Booster Vacuum, Pump Rebuilt, PFPE Oil

$14,59458
In stock
+
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price
Leybold RuVac WSU1000 WSU 1000 Blower Booster Vacuum Pump, Rebuilt Refurbished
Rebuilt for Oxygen Safe and Chemical Resistant PFPE Oil


The Leybold WSU1000 WSU-1000 Root's blower vacuum pumps are driven by an air-cooled canned motor, the term canned means that the blower's electric motor operates inside the pump's vacuum region. In the canned motor design, the motor's rotor operates on the drive shaft of the pump inside a vacuum-tight can made of a nonmagnetic material. The motor's stator slides over the outside of the vacuum tight can and operates in air. This canned electric motor design allows the WSU blowers to be particularly leak tight and operate without the need for shaft seal which would be subject to wear. For these reasons the Leybold WSU blower vacuum pumps are often used in vacuum processes which require evacuation of chemical process gases. The price for the pump listed is for a Leybold WSU 1000 blower booster vacuum pump only, backing pumps are extra. We also sell mechanical and blower vacuum pump systems. Please call (505) 872-0037 for more information.

Nominal Pumping Speed
1200 m3h-1, 707ft3min-1 (CFM)

Maximum Pumping Speed with Backing Pump - Example
Leybold SV300 - 1000m3h-1, 588 ft3min-1 (CFM)

Ultimate Total Pressure
<3 X 10-2 Torr

Rotational speed
60 Hz supply (0 - 3600 rpm)

Max. permissible pressure difference during continuous operation
0 - 80 mBar, 0 – 60 Torr

Connection Flange
100 ISO-K

Electrical supply voltage
3-phase, 60 Hz, 208 - 230 VAC / 460 VAC

Oerlikon_Leybold_Roots_Blower_Vacuum_Pump_Catalog.pdf (Oerlikon_Leybold_Roots_Blower_Vacuum_Pump_Catalog.pdf, 1,541 Kb) [Download]

Leybold_RUVAC_WS_WSU_251_501_1001_2001_Operation_Manual.pdf (Leybold_RUVAC_WS_WSU_251_501_1001_2001_Operation_Manual.pdf, 1,181 Kb) [Download]

Leybold_Ruvac_WS_WSU_151_251_501_1001_2001_SparesPartsList.pdf (Leybold_Ruvac_WS_WSU_151_251_501_1001_2001_SparesPartsList.pdf, 1,098 Kb) [Download]
