Edwards Part Number: TS85D2002

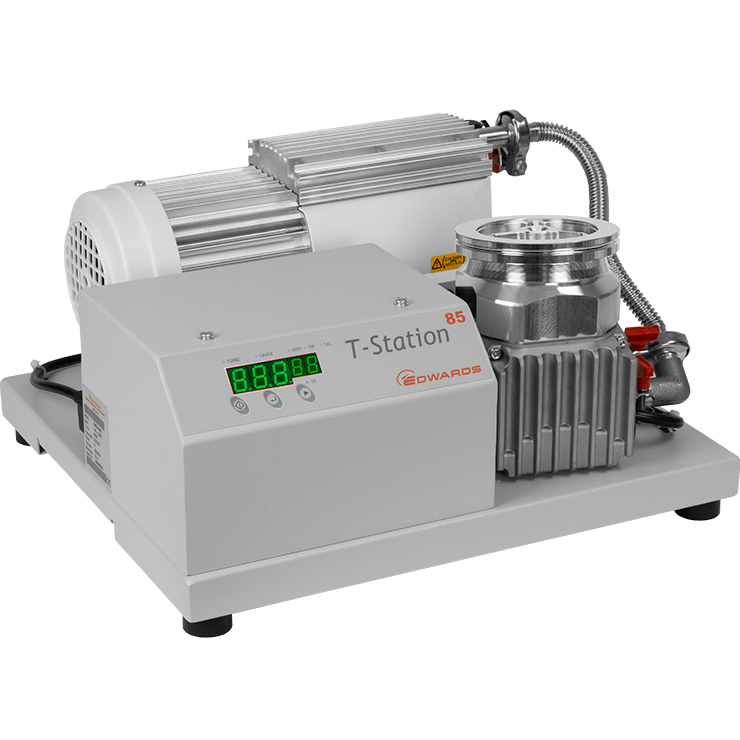

The T-Station 85 is Edwards new entry level turbopumping system. It combines the Edwards nEXT85D turbomolecular pump, with a simple controller and the XDD1 diaphragm roughing pump with a ISO63 LF63 inlet. The T-Station 85 is supplied fully assembled and ready to go for quick and easy operation.
T-Station 85 is a low cost, compact turbomolecular pumping station that seamlessly combines the nEXT85D turbomolecular pump with a dry diaphragm backing pump, and a simple controller, providing pumping speeds of 47 to 84 ls-1 (depending on inlet). The T-Station 85 comes with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. This is combined with the ability to control one of our active gauges*, vent valve* control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted. This making the T-Station 85 ideal for general laboratory needs.
*Active Gauges and TAV5 vent valve are optional accessories that are sold separately.
T-Station 85 is a low cost, compact turbomolecular pumping station that seamlessly combines the nEXT85D turbomolecular pump with a dry diaphragm backing pump, and a simple controller, providing pumping speeds of 47 to 84 ls-1 (depending on inlet). The T-Station 85 comes with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. This is combined with the ability to control one of our active gauges*, vent valve* control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted. This making the T-Station 85 ideal for general laboratory needs.
*Active Gauges and TAV5 vent valve are optional accessories that are sold separately.
-
GENERAL LAB AND R&D APPLICATIONS INCLUDING:
High Energy Physics and Research Centers
• The T-Station can be used in any lab where there is a need to create high vacuum quickly and easily
• The addition of the single active gauge controller makes it possible to monitor the process
Spectroscopy
• The T-Station is an ideal platform for people building their own mass spectrometers or leak detectors providing a ready made high vacuum system
Many others
• Maintaining individual chambers at the correct vacuum level during system maintenance or repair
• Surface analysis
• Small coating systems
• Tube manufacturing
• Plus many more…
-
Ordering Information at 50/60 Hz:
• 1-Phase 100-115 VAC Model PN: TS85D2002 (This model shown ISO63 LF63)
• 1-Phase 200-230 VAC Model PN: TS85D2001 (For this model ISO63 LF63 call 505-872-0037)
