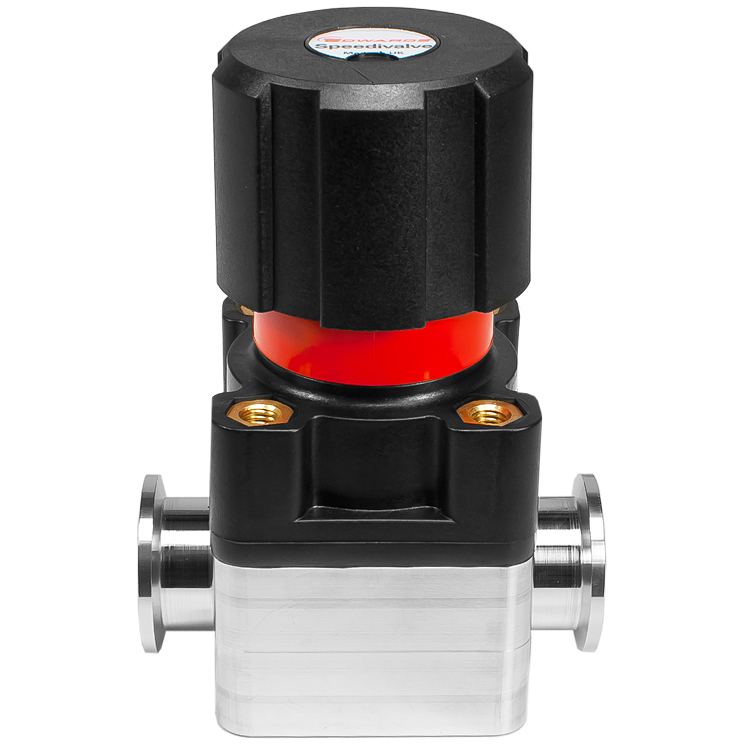

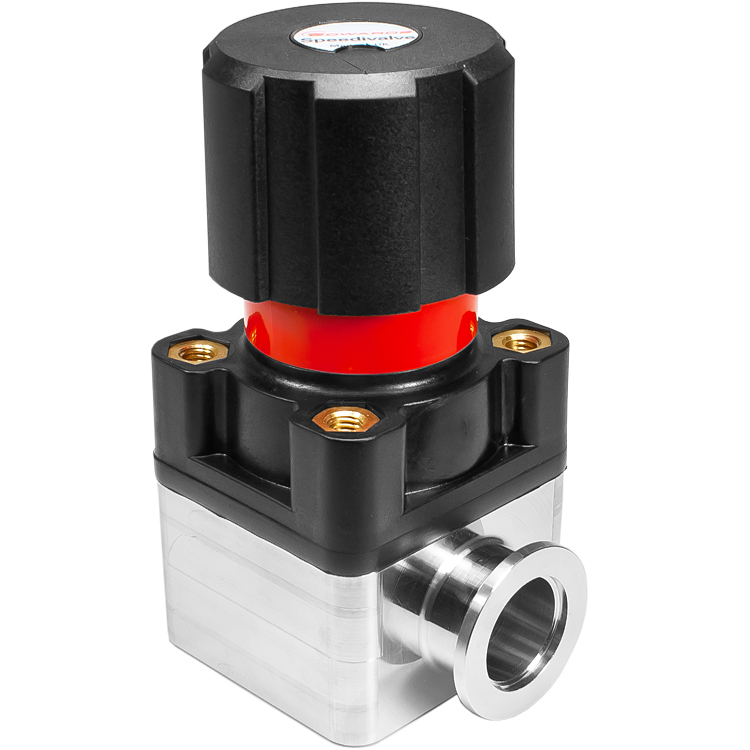

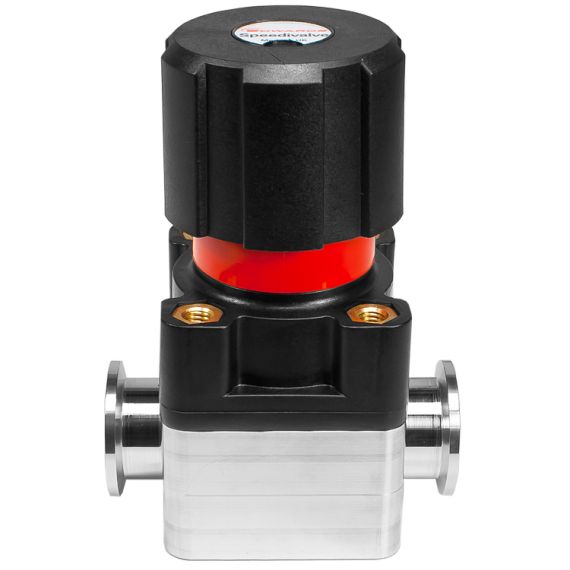

Edwards SP25K Speedivalve, KF25, manual operation, Viton diaphragm, aluminum alloy, C33355000
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
These NEW Edwards SP25K Seedivalve come with Viton diaphragm and the valve bodies are made of aluminum alloy. The complete valve is leak tight to better than 10-6 mbar l s-1 / 7.5 x 10-7 Torr l s-1 at 1 bar
differential. The mechanism is isolated from the
system by the diaphragm resulting in an extremely rugged and "dirty" system
tolerant valve. Diaphragm is Viton fluoroelastomer.
Valves can be panel mounted. These valves have red indicators to show the "open" position.
Body: Aluminum alloy to BS1490
Handwheel and bonnet: Glass reinforced plastics
Diaphragm: Viton fluoroelastomer
Maximum leak rate across body: 10-6 mbar l s-1 / 7.5 x 10-7 Torr l s-1
Maximum leak rate coupling: 10-7 mbar l s-1 / 7.5 x 10-8 Torr l s-1
Molecular conductance: 9.0 l s-1
Pressure Rating using Co-Seal: 9 bar / 131 psi
Panel thickness: 3mm or .117 inch maximum
Weight: (g/oz) 760 / 26.6
Baking Temp: 60 °C
Suitable for panel mounting. These Speedivalves are primarily for vacuum processes. They are brand new.
Body: Aluminum alloy to BS1490
Handwheel and bonnet: Glass reinforced plastics
Diaphragm: Viton fluoroelastomer
Maximum leak rate across body: 10-6 mbar l s-1 / 7.5 x 10-7 Torr l s-1
Maximum leak rate coupling: 10-7 mbar l s-1 / 7.5 x 10-8 Torr l s-1
Molecular conductance: 9.0 l s-1
Pressure Rating using Co-Seal: 9 bar / 131 psi
Panel thickness: 3mm or .117 inch maximum
Weight: (g/oz) 760 / 26.6
Baking Temp: 60 °C
Suitable for panel mounting. These Speedivalves are primarily for vacuum processes. They are brand new.
Edwards SP25K Speedivalve, KF25, manual operation, Viton diaphragm, aluminum alloy, P/N C33355000. Flange Size: KF25, NW25
Common Dimensions: A = (OPEN)4.875"(123mm), B= 2.00"(51mm), C = 3.9375"(100mm)
