These NEW Edwards IPV25MKS Manual Inline Lever Operation Bellows Isolation Valves are very quick acting. The LV10K needle valve provides fine control of gas bleed into a vacuum chamber or a regulated leak to control pressure in a vacuum system and is suitable for gas admission down to 10-5 mbar / 8 x 10-6 Torr.
Maximum flow rate: (approx) 0.1 l s-1
Maximum inlet pressure: 2000 mbar / 1500 Torr
Maximum leak rate across seat: 10-7 mbar l s-1 / 8 x 10-8 Torr l s -1
Maximum leak rate across body: 10-7 mbar l s-1 / 8 x 10-8 Torr l s -1
Vacuum connection: NW10
Weight: (g/oz) 138 / 4.8
Suitable for pipeline or panel mounting. These LV10K needle valves are primarily for vacuum processes. They are brand new.
Maximum flow rate: (approx) 0.1 l s-1
Maximum inlet pressure: 2000 mbar / 1500 Torr
Maximum leak rate across seat: 10-7 mbar l s-1 / 8 x 10-8 Torr l s -1
Maximum leak rate across body: 10-7 mbar l s-1 / 8 x 10-8 Torr l s -1
Vacuum connection: NW10
Weight: (g/oz) 138 / 4.8
Suitable for pipeline or panel mounting. These LV10K needle valves are primarily for vacuum processes. They are brand new.

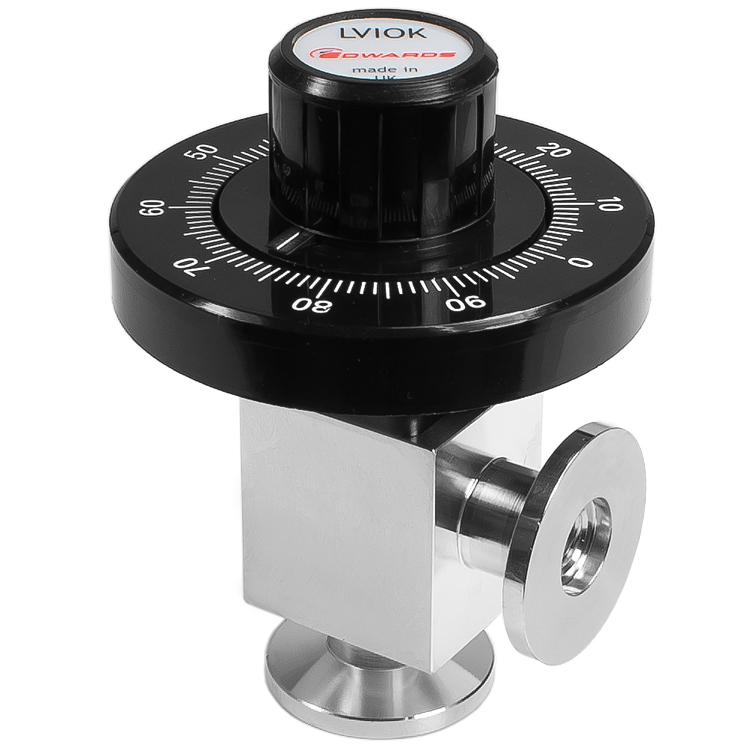

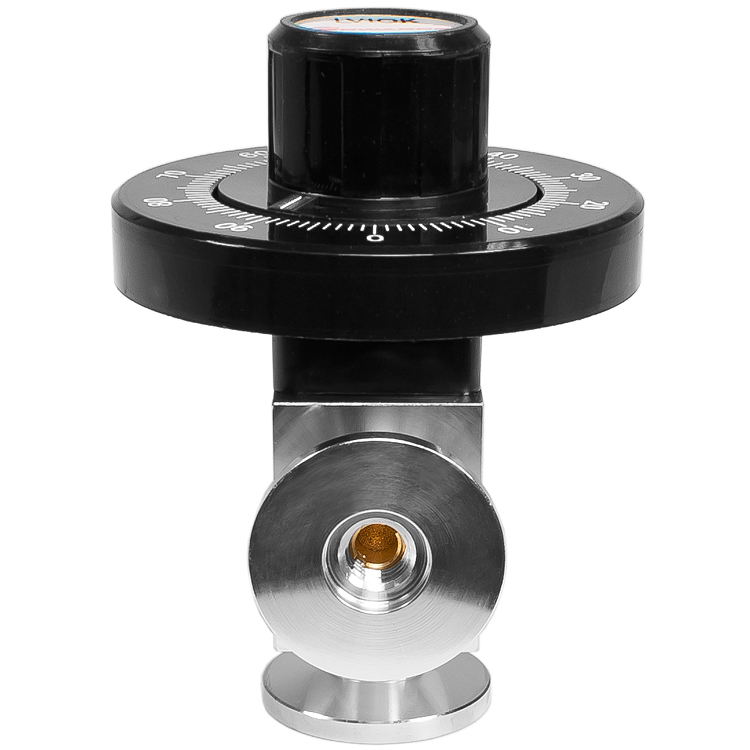

Edwards LV10K Fine Control Needle Valve KF10 Aluminum Body, Seat brass BS2784 C2112, Needle Martensitic stainless steel EN56AM, Filter Brass BS249, P/N C37102000 Flange Size: KF10, NW10
Common Dimensions: A = 2.44"(62mm), B= 3.48"(89mm), C = 1.18"(30mm)
