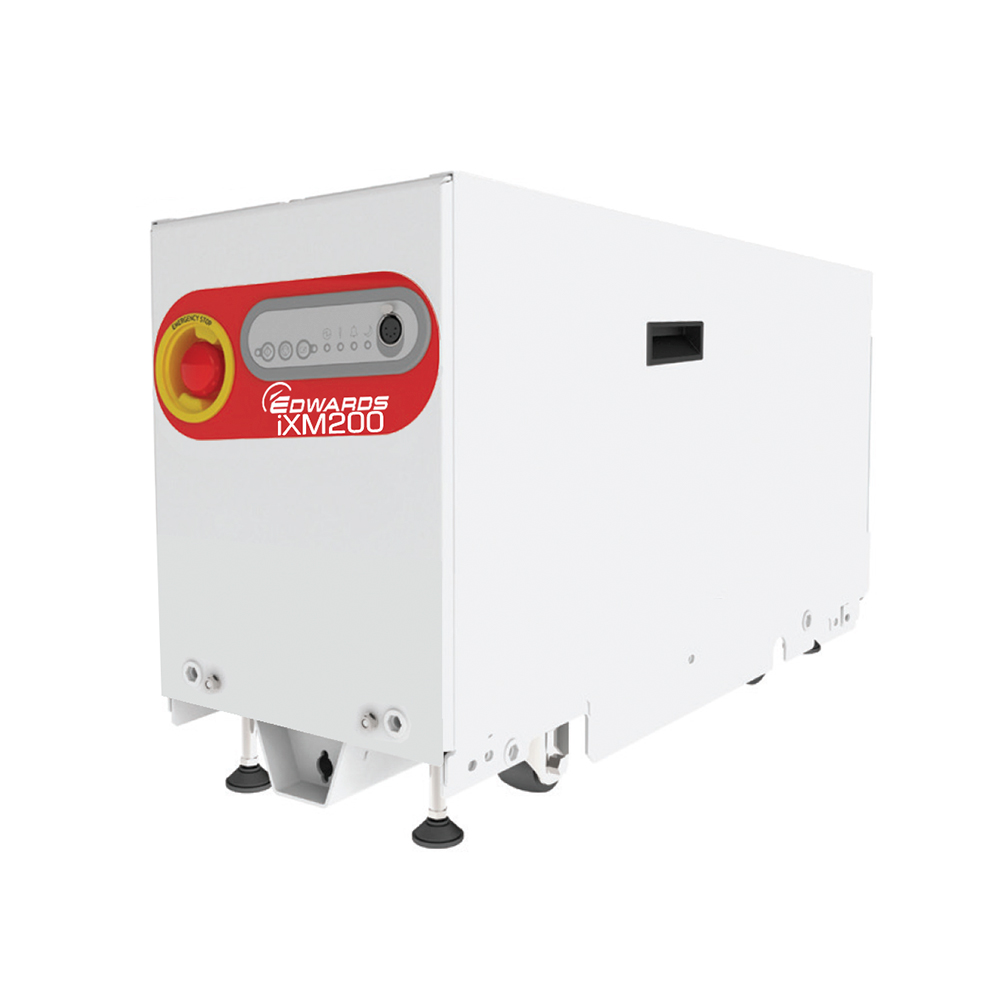

Edwards iXM 200 Dry Vacuum Pump 200-230 VAC 50/60 hz 3 ph. PN A56106958
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Save 25%
Edwards Part Number A56106958
The Edwards iXM 200 is a new range of dry pumps built for green
manufacturing. Using very low energy the efficient roots mechanism has
been developed to dramatically reduce input power to
1.3 kW, 60% lower than the previous generation of dry
pumps, reducing environmental impact and lowering cost of
ownership.
Gas barrier technology and thermal design improvements
enable four times greater corrosion resistance than iH Series
product. Advanced powder handling features mean iXM
will deliver maximum reliability and extended pump life for
multi-layer etch processes and reduced power consumption
for CVD processes.
The Edwards iXM 200 Series Pumps are compact and of light-weight design, combined with exceptionally low noise and vibration, makes iXM the most versatile dry pump in the Edwards range. iXM will transform your expectations of dry vacuum pump technology, deliver real benefits and increased uptime, with minimal environmental impact. iXM pumps are designed for use in most semiconductor processes while delivering significant reductions in input power. For complete Instruction Manual see Downloads to the side.
FEATURES and BENEFITS:
The Edwards iXM 200 Series Pumps are compact and of light-weight design, combined with exceptionally low noise and vibration, makes iXM the most versatile dry pump in the Edwards range. iXM will transform your expectations of dry vacuum pump technology, deliver real benefits and increased uptime, with minimal environmental impact. iXM pumps are designed for use in most semiconductor processes while delivering significant reductions in input power. For complete Instruction Manual see Downloads to the side.
FEATURES and BENEFITS:
- Primarily for Clean to Light Harsh Chemical Applications (See Application Spectrum Below)
- Peak Pumping Speed 200 m3/h-1 (118 CFM)
- Ultimate Pressure 1.5 X 10-2 Torr
- Contains Primary Pump Only
- No preventative maintenance required
- 3/8 inch Quick Connect Water Fillings
- Water & Power Connection Mating Halves
- SS Water Cooling System
- Varimode Gas Module
APPLICATIONS:- Load Lock
- Transfer
- Meteorology
- Lithography
- Physical Vapor Deposition PVD Process
- Physical Vapor Deposition PVD Pre-clean
- Rapid Thermal Anneal RTA
- Strip/Ashing
- Etching
- Implant Source
- High-Density Plasma Chemical Vapor Deposition HDP CVD
- Rapid Thermal Processing RTP
- Sub-Atmospheric Chemical Vapor Deposition SACVD
- Tungsten Chemical Vapor Deposition WCVD
- Modified Chemical-Vapor Deposition MCVD
- Plasma-Enhanced Chemical Vapor Deposition PECVD
- Low Pressure Chemical Vapor Deposition LPCVD
