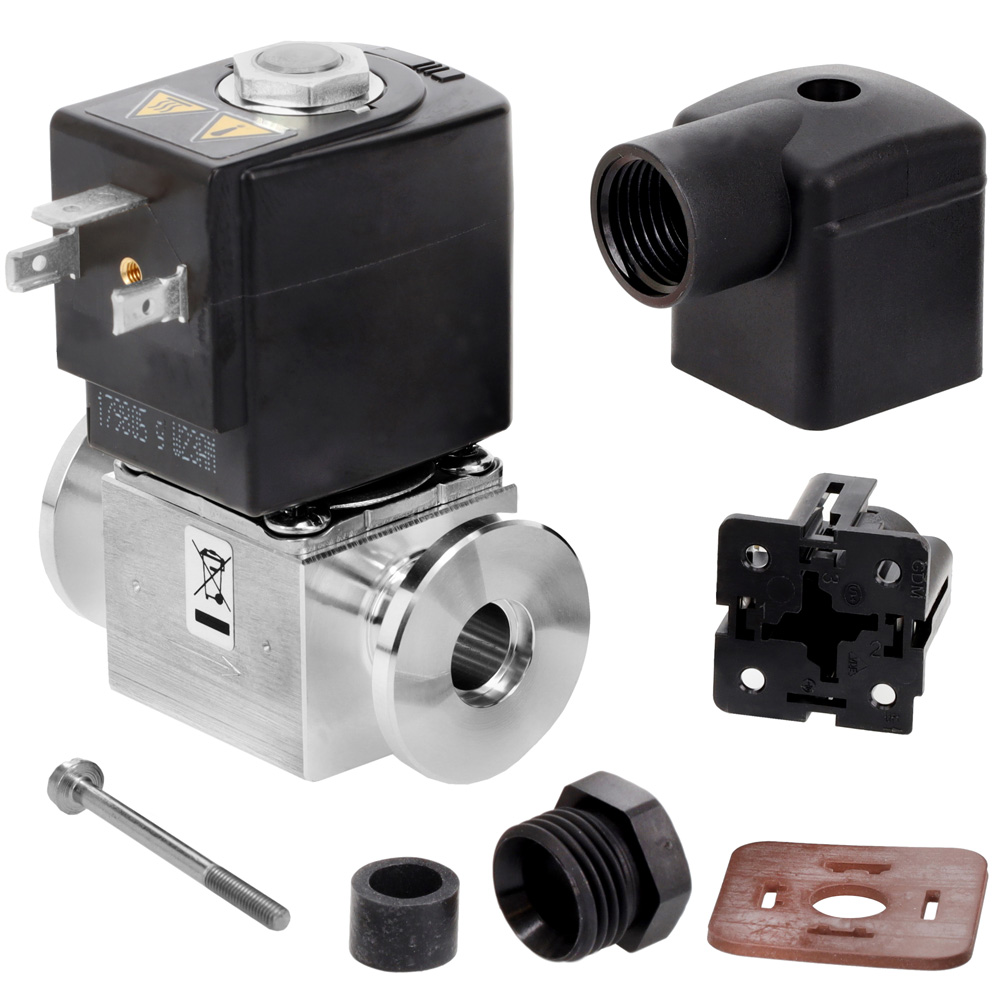

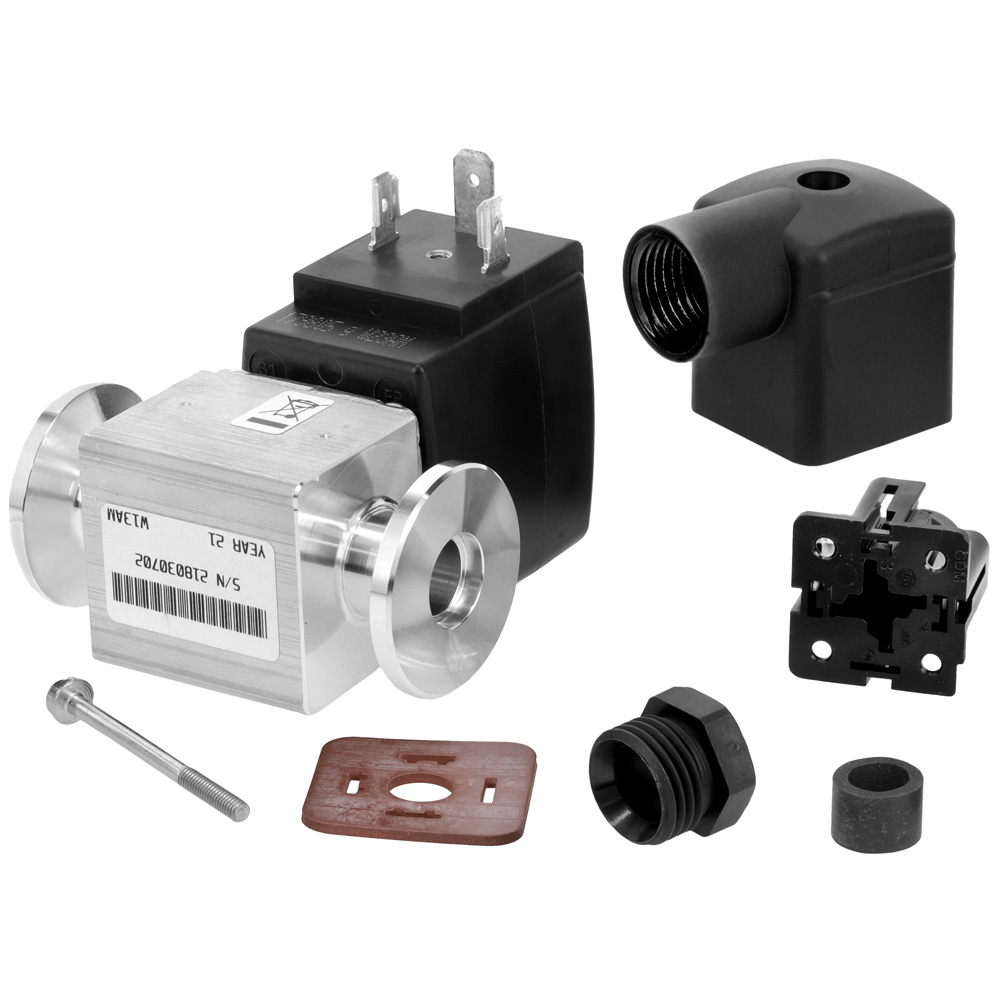

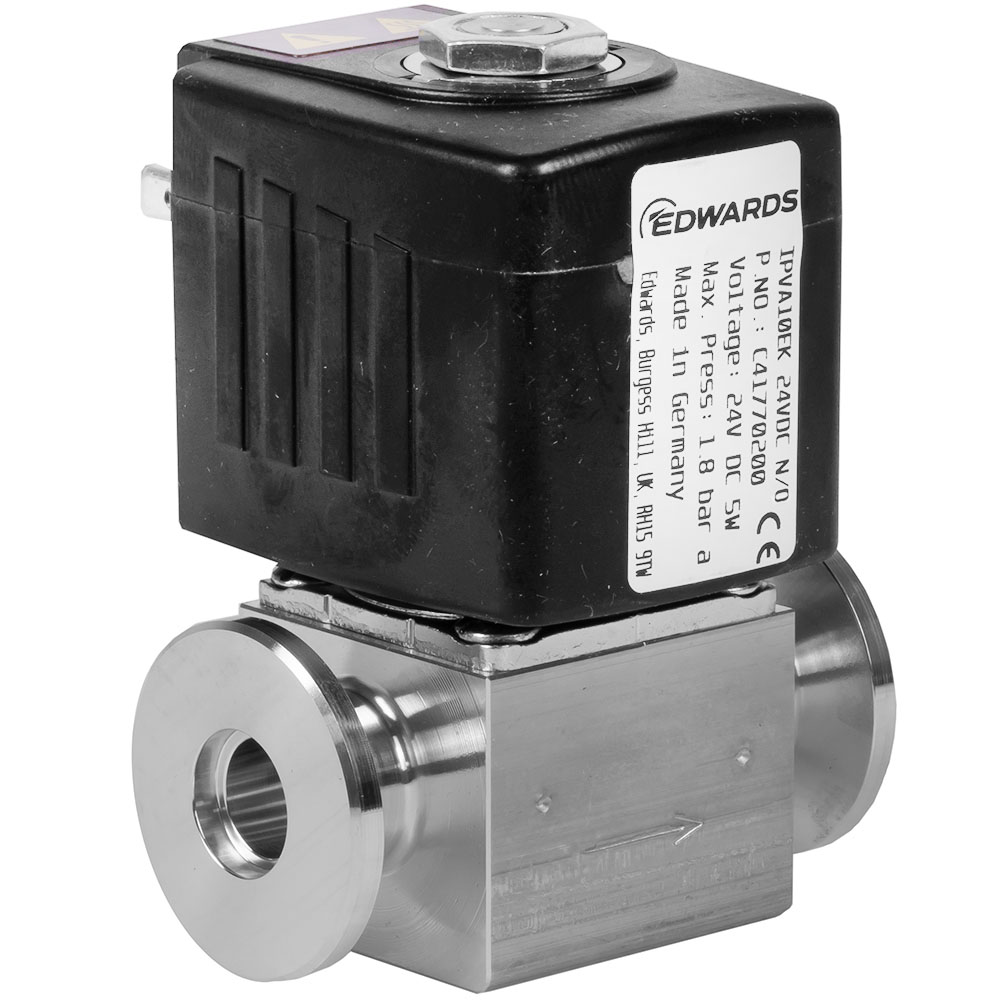

Edwards IPVA10EK Air Admittance Vent Valve, NW-KF10, 24 VDC, Normally Open, NO, Aluminum. PN: C41760200.
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Edwards Part Number: C41760200.
The Edwards IPVA10EK is a 24 VDC solenoid operated vent valve designed for automatic admittance of air or vent gas into a vacuum system. The valve has two ports with KF 10, NW 10 flanges. One of the valve ports is connected to the vacuum system, the other port can be left open to atmosphere or connected to a vent gas supply. The vacuum system is isolated from atmosphere (or the vent gas supply) by a fluoroelastomer pad on the base of the valve plunger, which seals against the body of the valve. This is a normally open (NO) version of the valve. The solenoid operates on 24VDC. These Edwards IPVA10EK 24 VDC air admittance vent valves have a KF10 vacuum flange and are sold as one each.
- Body: Aluminum
- Operating temperature range: -20 to 55 °C
- Vent gas temp range: -10 to 130 °C
- Venting rate: 10 liters in 12 s
- Valve Seal: Fluoroelastomer
- Actuator: Stainless Steel
- Coil Insulation: Class F
- Maximum leak rate across body: 1 x 10-9 mbar l/ s (1 / 8 x 10-10 Torr l/s)
- Fitting: KF10, NW10
- Weight: 310 grams (11 oz.)
- Electrical Power: 24 VDC
