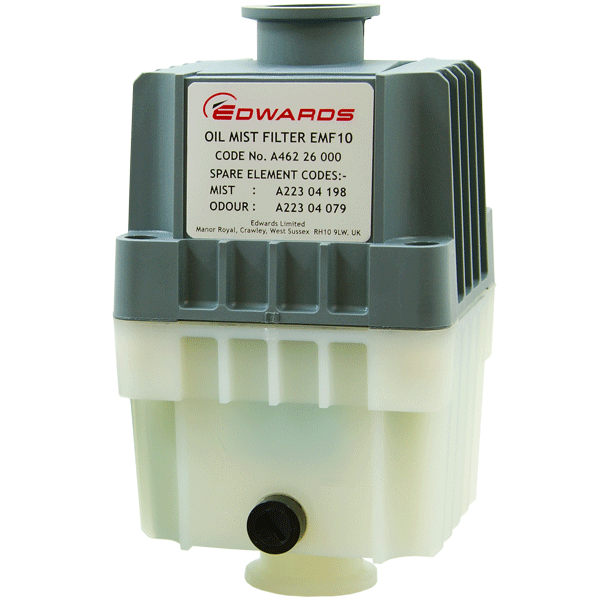

Edwards EMF10 EMF-10 Oil Mist Exhaust Filter, KF25 Ports, Designed for Edwards for RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, & E2M12 Vacuum Pumps.
Edwards Part Number A462-26-000

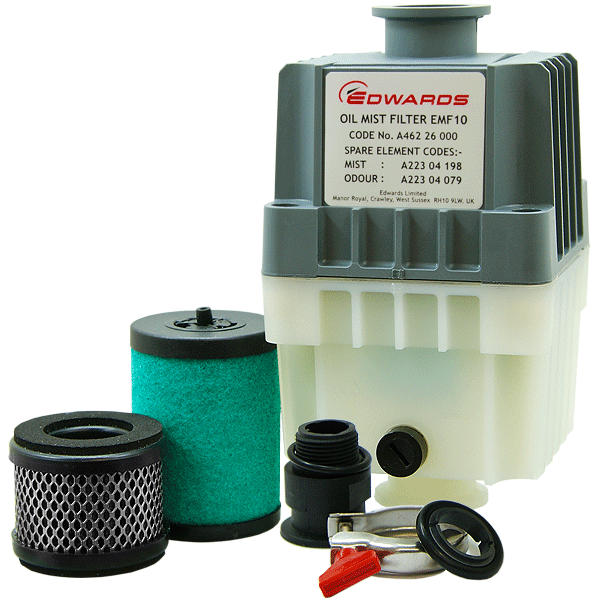

This EMF Outlet Oil Mist Filter is suitable for all Edwards Rotary Vane pumps up to E2M12. This EMF10 EMF-10 exhaust filter assembly is supplied with NW25 clamp, centering ring, O-Ring, NW25 to 3/4 BSP adapter, 1 oil element filter and 1 odor element. The benefits of the oil mist filter includes: protection from oil mist emissions as required by COSHH and health and safety regulations. If the oil element becomes blocked, an integral pressure relief valve opens. This filter is very efficient at 99.999% DOP test and is also azide proof. The white bottom half of the body is semi-transparent, allowing the oil level to be monitored. Replacement oil elements and odor elements are available on this website. For complete specifications download instruction manual (see below avaliable below).

Edwards EMF10 (EMF-10) Oil Mist Filter Specifications:

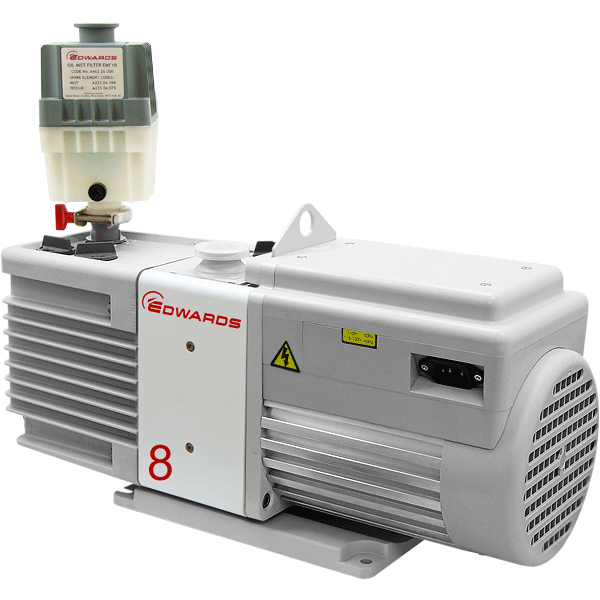

Fits Pump Models: RV3, RV5, RV8, RV12, E2M2, E2M5, E2M8, & E2M12
Inlet & Exhaust Flanges: ISO KF25 (NW25)
Dimensions: Height 7.5 x Width 5 inches
Weight: 1.5 lb
Material: Durable Plastic Body
Oil Filter Element: Epoxy Impregnated Glass Fiber
Replacement Oil Filter Part Number: A223-04-198
Edwards EMF10 (EMF-10) Part Number: A462-26-000

EdwardsEMF_Filters.pdf (EdwardsEMF_Filters.pdf, 579 Kb) [Download]

Technical_Considerations_for_Selecting_Vacuum_Components_for_Chemical_Processes.pdf (Technical_Considerations_for_Selecting_Vacuum_Components_for_Chemical_Processes.pdf, 3,624 Kb) [Download]
