Edwards Dual Fan Radial Air Cooling Unit for nEXT 1230H Turbo Pump, PN: B8J200801

Write a review
$1,83075
In stock
+ −
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price
Edwards Dual Fan Radial Air Cooling Unit for nEXT 1230H Turbo Pumps.
Edwards Part Number: B8J200801.

This Edwards radial air cooling dual fan unit fits the nEXT1230H turbo pump and provides air flow perpendicular to the pump. The air cooling facility is powered via the pump's auxilliary connector and will always run when the pump is on. This radial air cooling unit can be used in combination with the EPS 800 power supply mounted to the pump's side (mounting kit part number P1012528 is required). The power supply mounting kit is not required when the power supply is used remotely from the pump. This Edwards radial air cooling unit includes mounting screws and has part number B8J200801.

This dual fan radial air cooling kit can be used on these pumps:

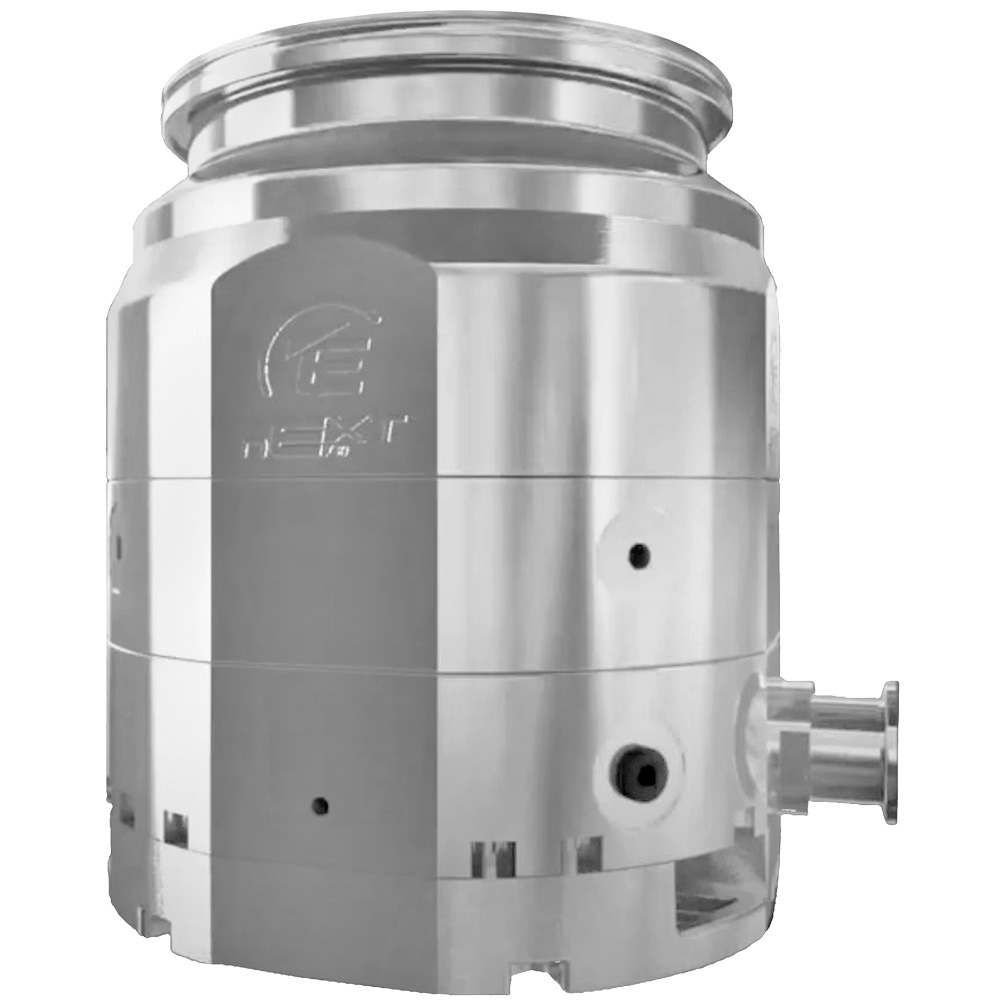

  • nEXT1230H

P61013475.sldprt (P61013475.sldprt, 6,259 Kb) [Download]

P61013475.step (P61013475.step, 18,313 Kb) [Download]

Edwards_nEXT_730D_930D_Turbo_Pump_Air_Cooler_Manual.pdf (Edwards_nEXT_730D_930D_Turbo_Pump_Air_Cooler_Manual.pdf, 520 Kb) [Download]

Edwards_nEXT730D_nEXT930D_nEXT1230H_Turbo_Pumps_Instruction_Manual.pdf (Edwards_nEXT730D_nEXT930D_nEXT1230H_Turbo_Pumps_Instruction_Manual.pdf, 3,880 Kb) [Download]

Edwards_nEXT730_nEXT930_nEXT1230_Turbo_Pump_Datasheet.pdf (Edwards_nEXT730_nEXT930_nEXT1230_Turbo_Pump_Datasheet.pdf, 309 Kb) [Download]

Edwards_nEXT_Turbomolecular_Pump_Entire_Range_Brochure.pdf (Edwards_nEXT_Turbomolecular_Pump_Entire_Range_Brochure.pdf, 2,984 Kb) [Download]

Edwards_EPS_800_Power_Supply_Instruction_Manual.pdf (Edwards_EPS_800_Power_Supply_Instruction_Manual.pdf, 499 Kb) [Download]
