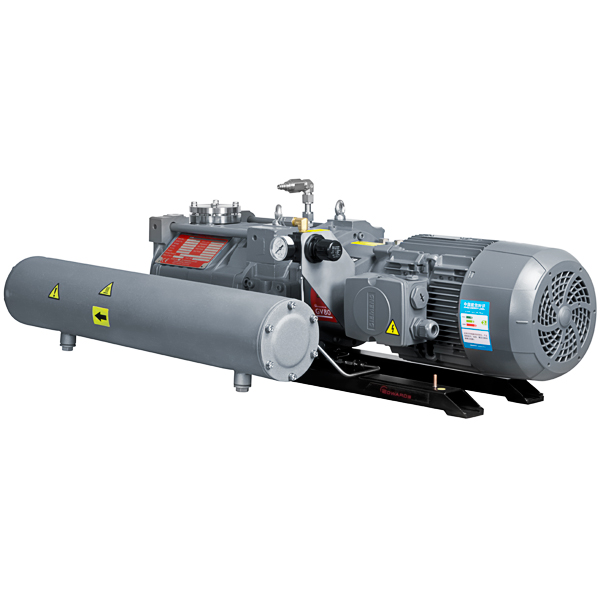

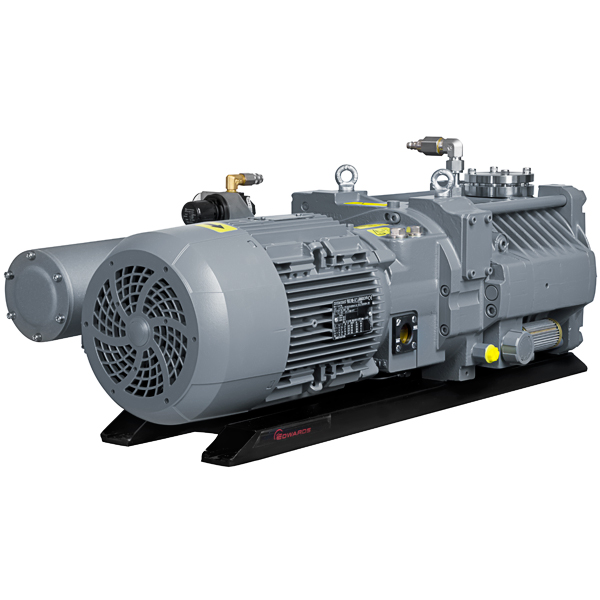

Edwards Drystar GV80 SSP Dry Pump and Silencer, 54 CFM, 230/460V 3-Phase. PN: NR8031000
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Edwards Part Number NR8031000
The pump is designed to handle large volumes of condensable vapours and particulate loads for a consistent pumping performance, minimal service intervention and low cost of ownership. The DRYSTAR GV80 dry pump is available as a stand alone unit for 80m3h-1 repeatable fast pump performance, or combined with the EH500 hydrokinetic drive mechanical booster offering 500m3h-1 for applications where increased pumping speed and/or lower vacuum levels are required. This is the DRYSTAR 80 Mechanical Dry Pumping Package Model GV80 Only, is oil free, and has a displacement of 91.5 m3/hr / 54 cfm. This is the pump only, to add a booster for higher pumping speeds call us at 505-827-0037.
The system specifications
- Ultimate pressure <0.03 mbar / <0.0225 torr
- Inlet connection ISO 40, outlet connection NW40
- Water cooling flow 1 l/min. /0.26 gal/min.
- Shaft seal purge module for N2 or clean dry air, Includes pressure regulator, pressure gauge
- Exhaust silencer (Stainless steel), includes two condensate drain ports
- System voltage 230/460v 3 phase 60 Hz
- System is assembled and factory tested
