Edwards Part Number D04850000

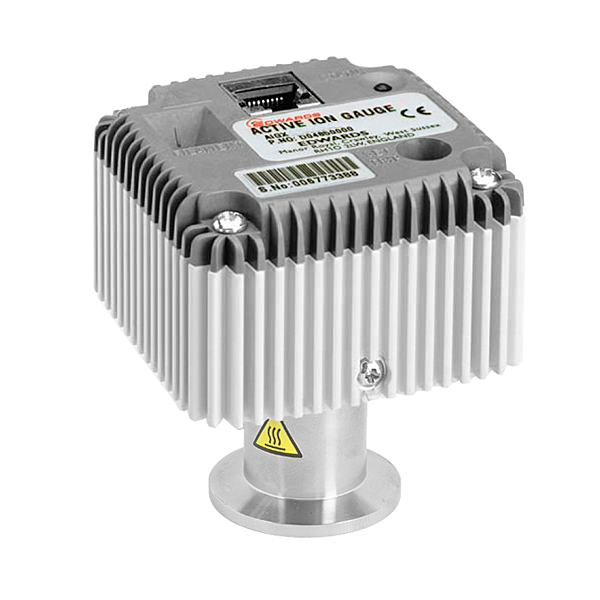

The Edwards compact Active ion gauge with dual yttria coated iridium filaments, a wide measuring
range from 5 x 10-2 Torr to 5 x 10-10 Torr and a 1 Volt/decade linear
output.
The new AIGX-S gauge from Edwards incorporates all the benefits of the industry standard
Active gauging concept, with integral electronics and a user replaceable sensor tube. The gauge has a
degas facility and includes features to protect and extend the life of the filaments.
The AIGX-S benefits from extremely low emissions of charged particles, which makes it an
excellent choice for processes where background noise is undesirable. Active Gauge Cable FCC68/RJ45 and controller not supplied.
For more specs and functions of this AIGX-S Active ION gauge, download the instruction manual .pdf below at AVAILABLE DOWNLOADS:
Features Include:
Features Include:
- Full 8 decade pressure measurement from 5 x 10-2 to 5 x 10-10 Torr
- Up to thirty fold reduction in charged particle process
contamination compared to leading competitors - User interchangeable ion sensor tube
- CSA, C/US approved
- Automatic filament protection against switching on at
ATM and running or degassing at high pressure
