Edwards Active Strain Gauge (ASG2) ASG2, 1/8 NPT, 2,000 mbar (1,500 Torr) to 1 mbar (.75 Torr).

Write a review

$1,591⁷⁹

In stock

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents
Accessories

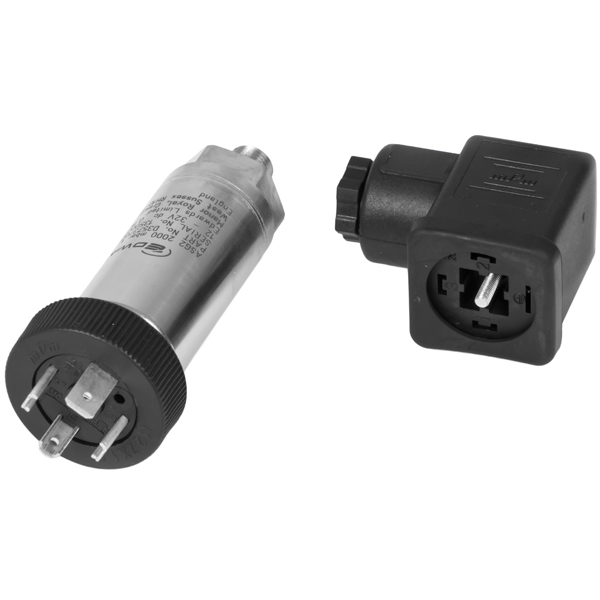

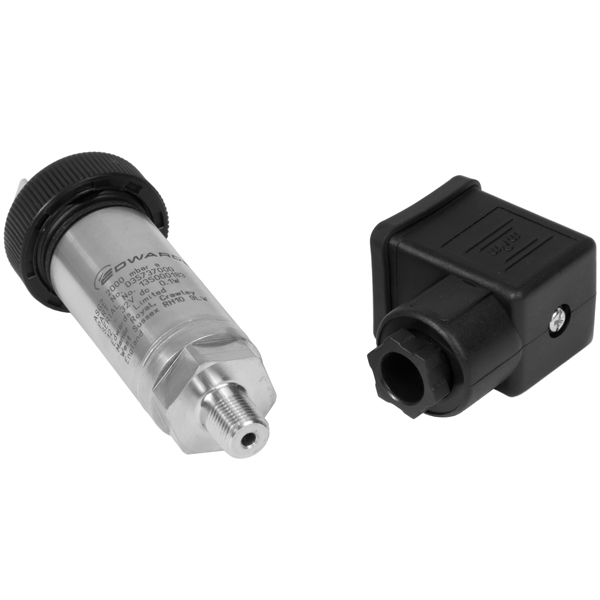

Edwards Active Strain Gauge (ASG2) Gauge 1/8 in. NPT, 2,000 mbar (1,500 Torr) to 1 mbar (.75 Torr). Edwards Part Number D35737000

The Edwards Active Strain Gauge (ASG2) is a rugged, corrosion resistant diaphragm gauge which provides accurate, gas independent measurement from 2,000 mbar (1,500 Torr) to 1 mbar (.75 Torr). It can be used as a stand-alone transducer allowing OEMs and system builders to develop low cost, flexible solutions to their vacuum instrumentation needs. Alternatively, it can be connected to the TIC Instrument Controller where it can be combined with many other sensor types to provide a complete vacuum instrument solution.

Active strain gauges are an excellent choice where accurate, gas independent, measurement of pressures around atmosphere are required, making them ideal for applications such as load locks. Note: AGC (active gauge cable) to ASG (active strain gauge) adaptor cable required for hook up to TIC, AGC, ADC & ADD controllers. Edwards Adapter Cable AGC to ASG, P/N D35737000. For instruction manual .pdf on Edwards Active Strain Gauges see below AVAILABLE DOWNLOADS:

Features Include:

Drive Electronics combined in the gauge head
Wide range, runs on standard dc power supplies +12 to +32 V
Standard analog output of 0 to 10 VDC
Very accurate and stable
Calibration data held in tube
Corrosion resistant
Pressure range 1000 mbar (750 Torr) to 1 mbar (.75 Torr)

Edwards_Active_Inverted_Magnetron_D146-41-880.pdf (Edwards_Active_Inverted_Magnetron_D146-41-880.pdf, 608 Kb) [Download]

Edwards_Active_Inverted_Magnetron_Gauge_-_Electrode_Kit_Instruction_Manual_D145_45_840.pdf (Edwards_Active_Inverted_Magnetron_Gauge_-_Electrode_Kit_Instruction_Manual_D145_45_840.pdf, 69 Kb) [Download]

Edwards_Industrial_Active_Inverted_Magnetron_Gauge_D14671880_-_Instruction_Manual.pdf (Edwards_Industrial_Active_Inverted_Magnetron_Gauge_D14671880_-_Instruction_Manual.pdf, 618 Kb) [Download]

Edwards_Metal_Sealed_Active_Inverted_Magnetron_Gauge_D14661880_-_Instruction_Manual.pdf (Edwards_Metal_Sealed_Active_Inverted_Magnetron_Gauge_D14661880_-_Instruction_Manual.pdf, 642 Kb) [Download]

Ed_ASG2_StrainGauge_Manual.pdf (Ed_ASG2_StrainGauge_Manual.pdf, 498 Kb) [Download]

ED_IS16K_Switch_1.pdf (ED_IS16K_Switch_1.pdf, 331 Kb) [Download]

ED_VS16K_VAR_Switch_1.pdf (ED_VS16K_VAR_Switch_1.pdf, 1,462 Kb) [Download]

Edwards_CP25K_Cold_Cathode_Gauge_Sensor_Manual.pdf (Edwards_CP25K_Cold_Cathode_Gauge_Sensor_Manual.pdf, 82 Kb) [Download]

Edwards_Pressure_Product_Catalog.pdf (Edwards_Pressure_Product_Catalog.pdf, 2,431 Kb) [Download]
