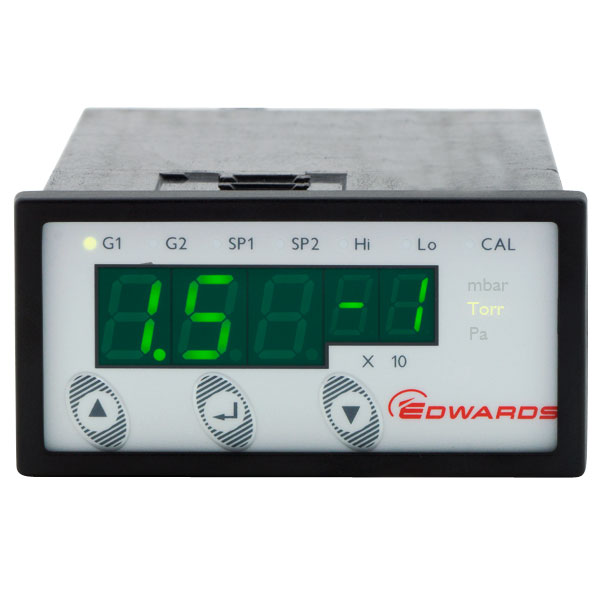

The Edwards Active Digital Controller (ADC) is a compact single line vacuum gauge controller and display, featuring a bright LED display and simple push-button controls. The ADC automatically recognizes compatible Edwards gauges, loads the appropriate look-up table and displays the pressure in commonly used vacuum units. The ADC is available in standard and MKII Enhanced Versions, Certificated. This is the
MKII Enhanced Version. The
ADC standard controller displays the pressure measured by a single
active gauge. On the other hand the ADC MKII enhanced controller now supports two
different gauges with two variable hysteresis set-points which are
linked to 48 V dc 1A changeover relays and two 0-10 V dc analog
outputs. To aid system integration the enhanced MKII enhanced controller is
provided with an RS232 interface.
When combined with suitable gauges such as the Edwards APG100
Pirani, AIM Inverted Magnetron or Wide Range Gauge (WRG), both version
ADC's represent a cost effective means of monitoring and controlling
process vacuum in a broad range of applications. NOTE: This is not the Edwards TAG controller which looks very similar but controls Edwards Turbo Pumps and measures vacuum pressure. For detailed specifications and instructions for use on the ADC MKII Enhance Version Active Digital Controller Certificated, scroll down to AVAILABLE DOWNLOADS and download the Instruction Manual.pdf.
Features Include:
- Wide Pressure Range Supports Edwards Active
Gauges from 1500 to 7.5 x 10-10 Torr - Plug and Go operation, plug AC in, connect Edwards
active gauge and ADC reads the vacuum pressure - Standard version reads 1 gauge, enhanced MKII version reads 2 gauges, Certificated
- High visibility display
- Choice of display units, mbar, Torr, or Pascal
- Compact instrument small 1/8 DIN enclosure
- Simple to use
