Agilent Varian Part Number 9698978.

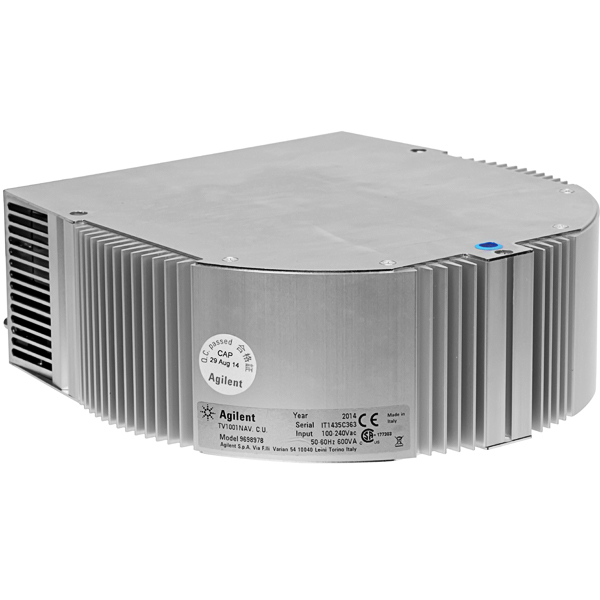

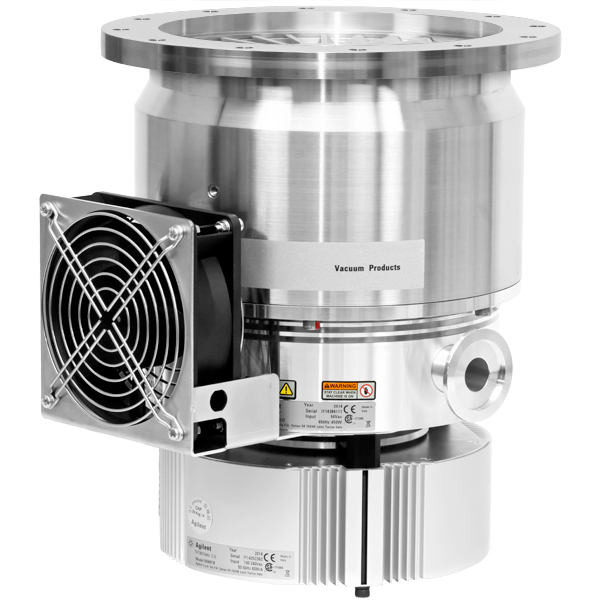

The Agilent Varian TV 1001 Navigator controller is designed to mount below or on the side and provide power for the Turbo-V 1001 turbo molecular pump, its cooling fan, and its vent valve. These Agilent Varian TV 1001 Navigator controllers are built to automatically operate on any input voltage between 100 to 240 VAC. The Agilent Varian TV 1001 Navigator turbo pump controllers also incorporate auxiliary 24 VDC power connectors for powering the cooling fan and vent valve devices through ports P4 and P3 respectively (see photos). The turbo pump to controller cable isattached to the TV 1001 Navigator controller and is 1 foot long. The J1 connector on the side of the Navigator controller handles interlock and other logic. A mating J1 interlock-jumped connector is provided with each new TV 1001 Navigator controller and this mating connector must be in place to close the interlock circuit and allow the pump to start after installation. The J2 serial port on the Turbo V 1001 Navigator controller can be used to communicate with the turbo system using Agilent Varian A-Plus software (see optional accessories below).
All optional accessories, pumps, controllers, and different configurations are available from Ideal Vacuum. The user’s manual and brochure are available in the downloads.
All optional accessories, pumps, controllers, and different configurations are available from Ideal Vacuum. The user’s manual and brochure are available in the downloads.
