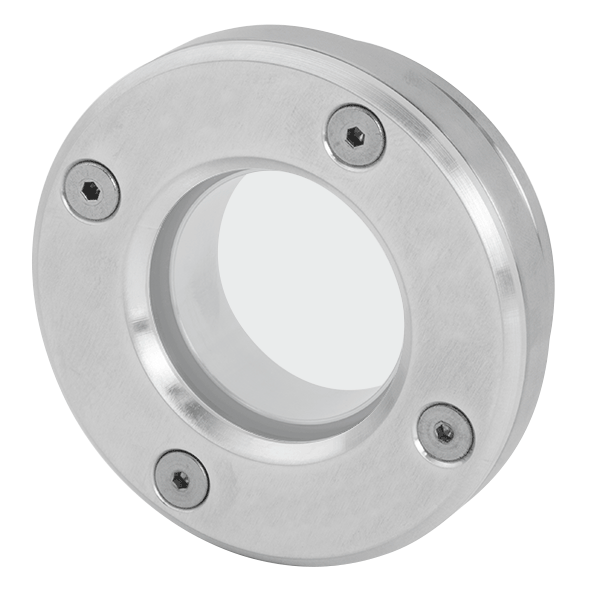

Demountable Viewport KF40, NW40 Flange, 1.19 in. view, Uncoated Quartz, Stainless Steel

$58955
On backorder
+
Add to wish list
Delivery
Payment options
Our advantages
  • — 12 months warranty
  • — SMS notification
  • — Return and exchange
  • — Different payment methods
  • — Best price
KF40 NW40 Flange, Demountable Viewport, 1.19 in. view diameter, Uncoated Quartz Fused Silica.

These Quick Flange demountable vacuum fittings have a flange size of KF40, NW40 with a Uncoated Quartz Fused Silica viewport view diameter of 1.19 in and a glass thickness of 0.158". Demountable Viewports are used for ultra-high vacuum applications and molecular spectroscopy. These fittings use a Viton O-ring gasket, operate down to 10-8 torr (10-11 Pa), and have a max bakeout temperature of 150° C. The operable wavelength of the Uncoated Quartz is between 200nm to 2000nm. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. At present we have the following demountable viewport sizes listed in the graphic below and have replacement viewport glass and O-rings for sale.


P6107704.step (P6107704.step, 3,759 Kb) [Download]

ChemrazDataSheet_4.pdf (ChemrazDataSheet_4.pdf, 866 Kb) [Download]

EVAC_FLanges.pdf (EVAC_FLanges.pdf, 1,288 Kb) [Download]
