| Availability Disclaimer: This chamber is fabricated upon ordering. Chambers are made complete within 4 weeks of ordering. Expediting options are offered for rush orders if necessary. Call for more details. |

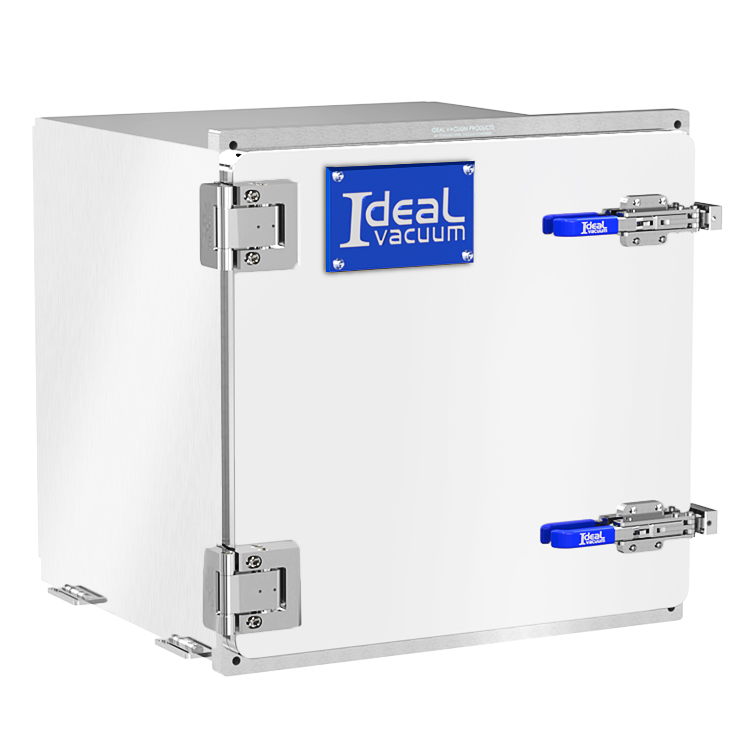

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 24x24x24 inches, all of these cubic chambers are made with 6061-T6 Aluminum. These leak-tested chambers are internally TIG welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door, a stainless steel door for chemical resistance, and aluminum or stainless steel door with a built-in viewing port. The depth of the chamber can be customized as well to meet your needs allowing for a deeper chamber with the same door size. For custom options please call (505) 872-0037.
| 24" CHAMBER SPECIFICATIONS | |
| Interior Chamber Size | Approximately 24x24x24 inches (approx. 61x61x61cm) |
| Custom Depth | Chamber Depth Can Be Selected Between 6-60 inches Deep With Added Cost |
| Chamber Material | 6061-T6 Aluminum |
| Weight | 490 lbs (220 kg) w/o door |
| Volume | 8.4 cu. ft. (237.8 liters) |
| Hinged Front Door | Aluminum, Stainless Steel, Acrylic or Built-in Viewing Port |
| Ultimate Pressure | 1x10-6 Torr (High Vacuum) |
| Leak Tested | (Helium) to 1x10-8 atm cc/sec |
| Operating Temperature Range (Viton Seal) | 5° to 302°F (-15° to 150°C) |
| Lead Time | One to Two Weeks (7-14 days) |
| Call for additional porting options or for expanded temperature range | |
