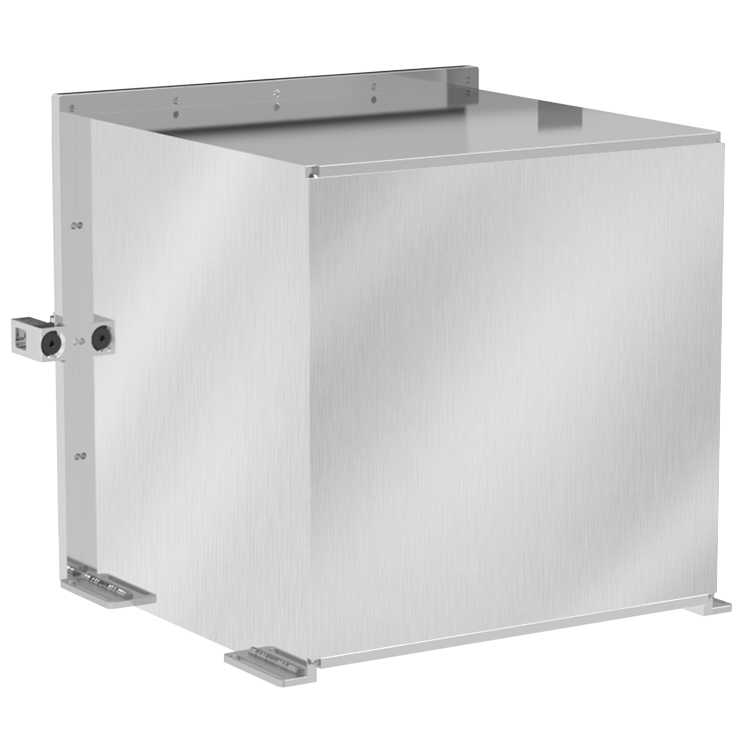

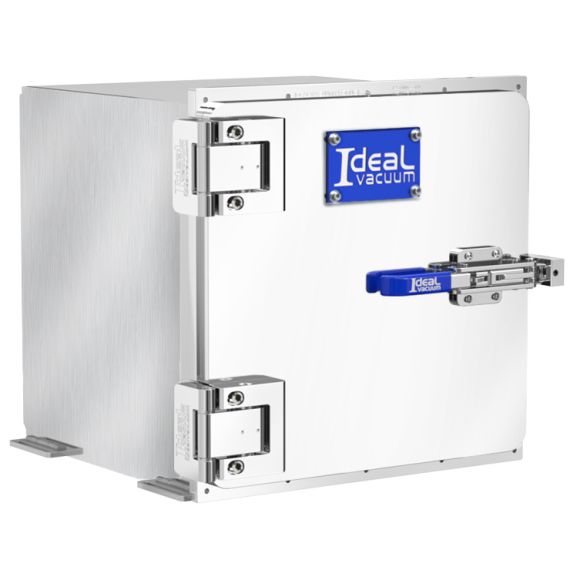

Fabricated and assembled entirely in our manufacturing facility, these robust, inexpensive vacuum chambers are a highly efficient way for your R&D lab to get into high vacuum applications. With an internal dimension of at least 16x16x16 inches, all of these cubic chambers are made with 6061-T6 Aluminum plate. These leak-tested chambers are internally welded, and include an O-ring seal, sturdy hinged door, and easy open latch for quick access. Your choice of door includes an inexpensive aluminum door, a stainless steel door for chemical resistance, a clear acrylic door for direct viewing, and a machined aluminum door for fixturing feedthroughs and miscellaneous internal components. The depth of the chamber can be customized as well to meet your needs allowing for a deeper chamber with the same door size. For custom options please call (505) 872-0037.
SPECIFICATIONS
- Interior Chamber Size: Approximately 16x16x16 inches (approx. 40.6x40.6x40.6cm)
- Custom Depth: Chamber depth can be selected between 6-36 inches deep with added cost
- Chamber Material: 6061-T6 Aluminum
- Weight: Approximately 160lbs (73Kg) w/o door
- Chamber Volume: Approximately 2.46 cu. ft. (69.6 liters)
- Hinged Front Door: Aluminum, Stainless Steel, or Acrylic
- Ultimate Pressure: 1x10-6 Torr (High Vacuum)
- Leak Tested: (Helium) to 1x10-8 atm cc/sec
- Operating Temperature Range (Viton Seal): 5° to 302°F (-15° to 150°C)
- Lead Time:8 Weeks
Call for additional porting options
Call for expanded temperature range
