Cross 4-Way, NW-160 Vacuum Fitting, ISO-LF Large Flange Size NW-160, Stainless Steel
Cross 4-Way, NW-160 Vacuum Fitting, ISO-LF Large Flange Size NW-160, Stainless Steel
ISO-LF Flange Size: NW-160

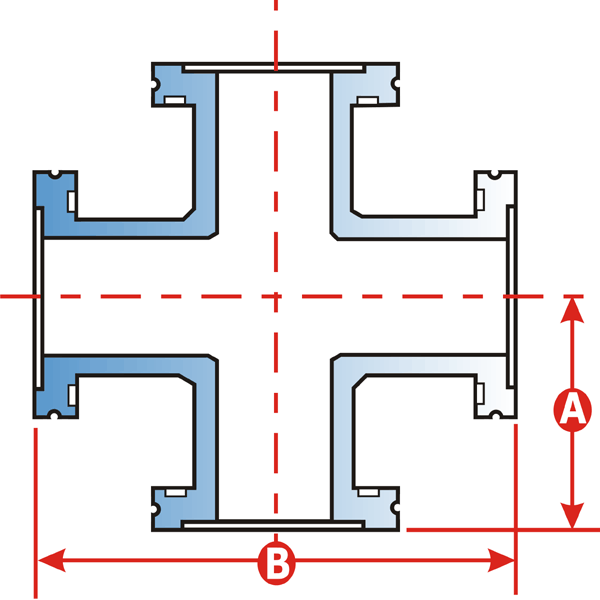

Common Dimensions: A = 5.25" (133mm), B = 10.50" (267mm)

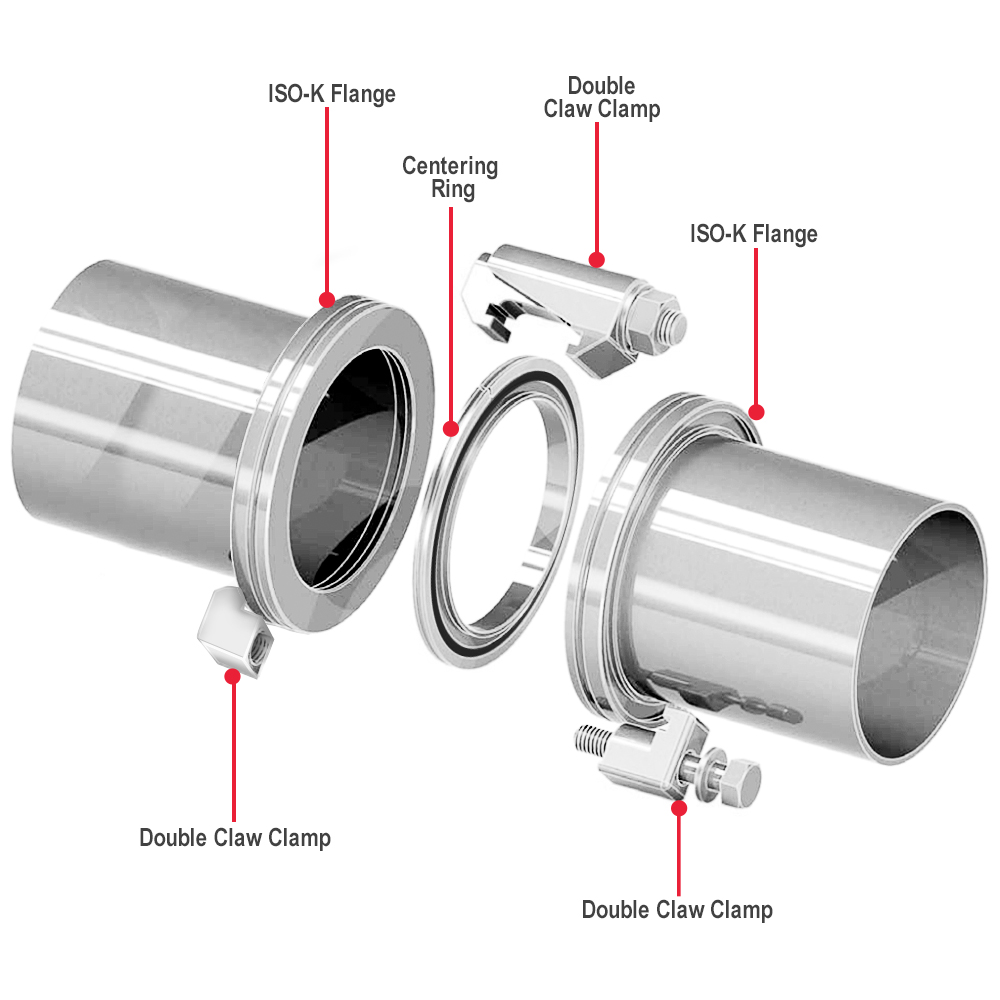

These four-way crosses follow International Standards Organization (ISO) standards and have a flange size of NW-160. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant stainless steel.
Cross 4-Way, NW-160 Vacuum Fitting, ISO-LF Large Flange Size NW-160, Stainless Steel
ISO-LF Flange Size: NW-160
Common Dimensions: A = 5.25" (133mm), B = 10.50" (267mm)
