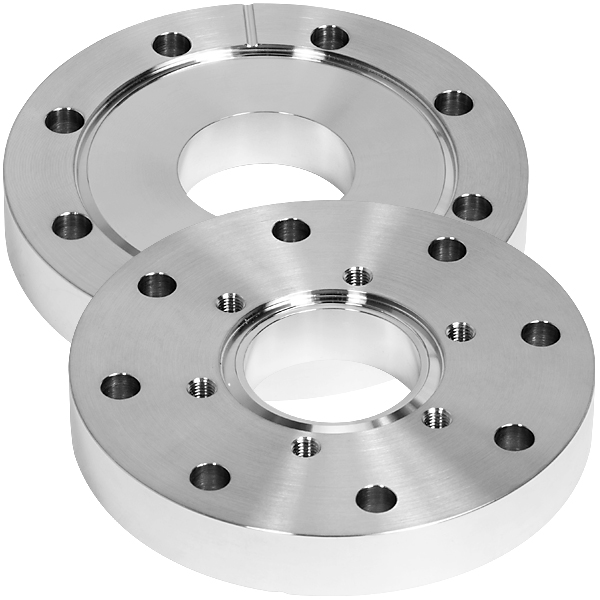

Conflat Flange (CF) Zero Length Reducer, CF 4-1/2 inch through hole to 2-3/4 inch tapped hole, SS
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
Conflat Flange (CF) Zero Length Reducer, CF 4-1/2 inch to 2-3/4 inch, Stainless Steel Fittings
Conflat Flange (CF) Zero Length Reducer, CF 4-1/2 inches (Through Hole) to 2-3/4 inches (Tapped Hole), Stainless Steel
CF Flange Size: CF 4-1/2 to 2-3/4 inch

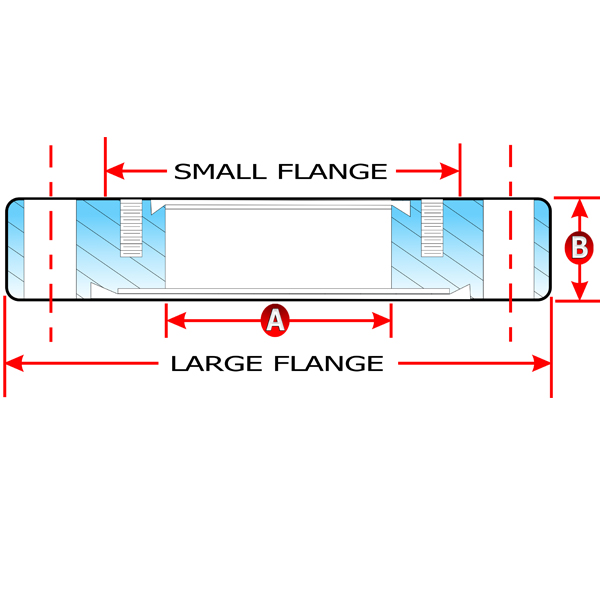

Common Dimensions:
Large Flange Dimension (Through Holes) = CF 4.50 inch
Small Flange Dimension (Tapped Holes) = CF 2.75 inch
A = 38.10mm
B = 17.40mm
Tube Size = 1.5 inch

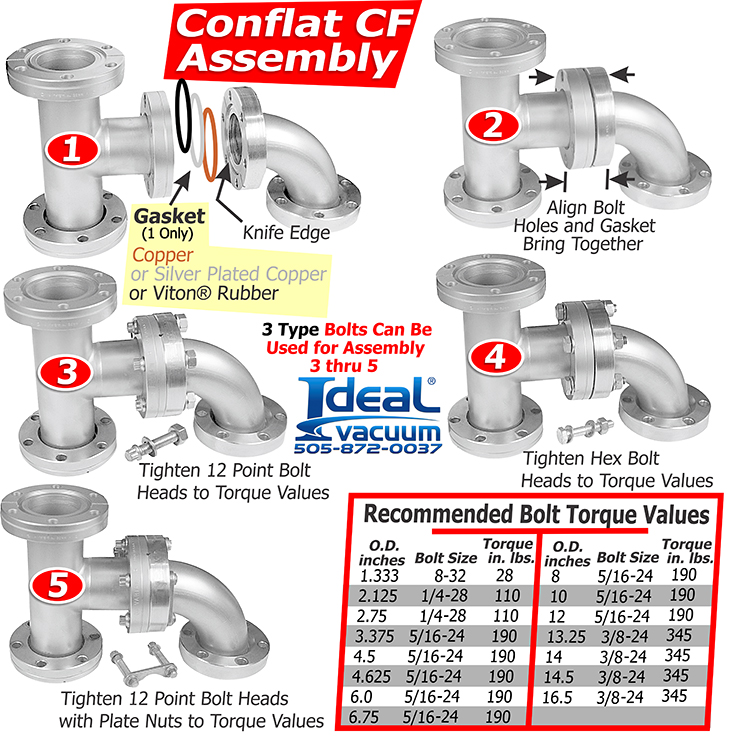

These zero-length reducer vacuum fittings have a 4-1/2 inch to 2-3/4 inch conflat (CF) flanges. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.
Conflat Flange (CF) Zero Length Reducer, CF 4-1/2 inches (Through Hole) to 2-3/4 inches (Tapped Hole), Stainless Steel
CF Flange Size: CF 4-1/2 to 2-3/4 inch
Common Dimensions:
Large Flange Dimension (Through Holes) = CF 4.50 inch
Small Flange Dimension (Tapped Holes) = CF 2.75 inch
A = 38.10mm
B = 17.40mm
Tube Size = 1.5 inch
