Conflat Flange (CF) Zero Length Reducer, CF 13.25 inch through hole to 8.00 inch tapped hole, SS

Write a review

$1,888⁸⁴

In stock

+ −

Delivery

Payment options

Our advantages

— 12 months warranty
— SMS notification
— Return and exchange
— Different payment methods
— Best price

Description
Documents

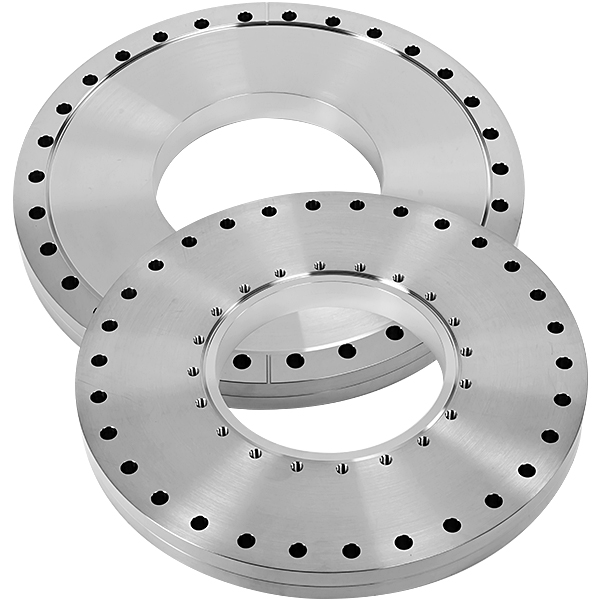

Conflat Flange (CF) Zero Length Reducer, CF 13.25 inches to CF 8.00 inches, Stainless Steel Fittings

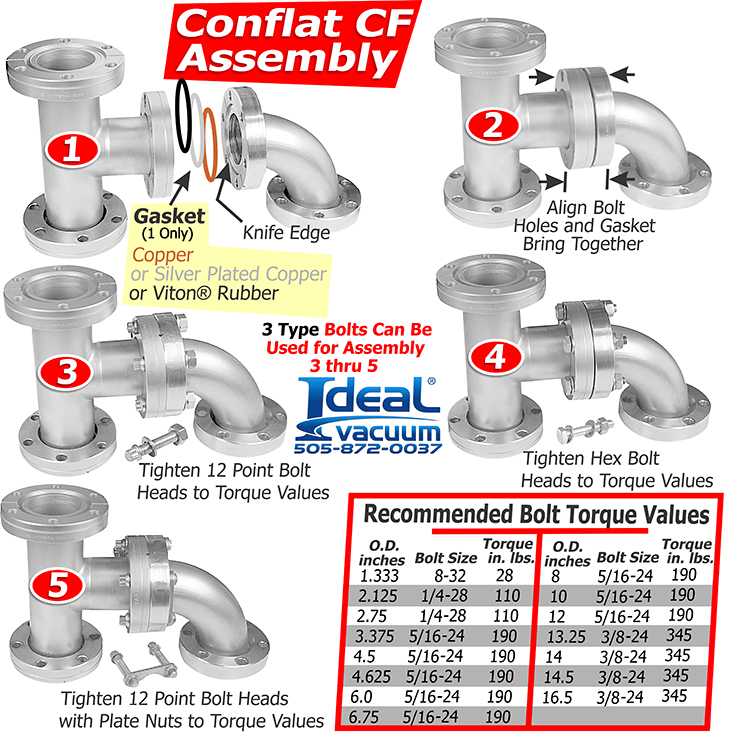

These zero-length reducer vacuum fittings have a 13.25 to 8.00 inch conflat (CF) flanges. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.

Conflat Flange (CF) Zero Length Reducer, CF 13.25 inches (Through Hole) to 8.00 inches (Tapped Hole), Stainless Steel
CF Flange Size: CF 13.25 to CF 8.00 inch
Common Dimensions:
Large Flange Dimension (Through Holes) = CF 13.25 inch
Small Flange Dimension (Tapped Holes) = CF 8.00 inch
A = 152.40mm
B = 28.45mm
Tube Size = 6.0 inch

P6107673.sldprt (P6107673.sldprt, 506 Kb) [Download]

P6107673.step (P6107673.step, 738 Kb) [Download]
