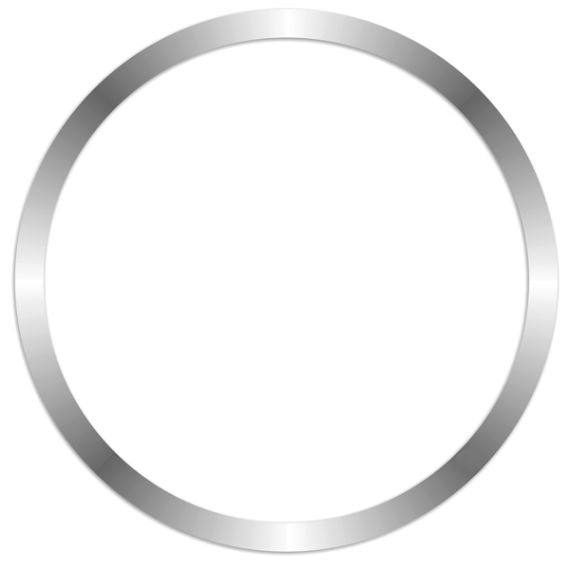

Conflat Flange (CF) Silver Plated Copper Gaskets CF Size 6.00 inch - 1 each
Conflat Flange (CF) Silver Plated Copper Gaskets CF Size 6.00" - 1 each
CF Flange Size: CF 6.00 inch

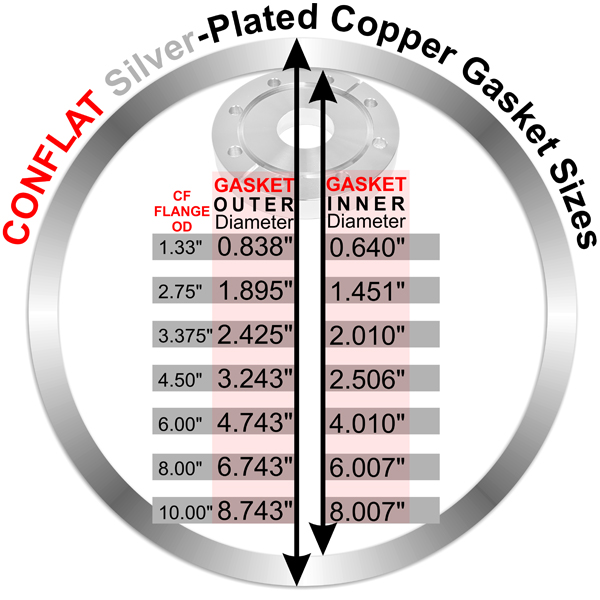

Common Dimensions: Conflat Flange Outer Diameter (OD) 6.00", Gasket Outer Diameter (OD) 4.743", Gasket Inner Diameter (ID) 4.010"
These conflat silver plated copper gaskets fit a conflat flange size of 6.00 inches. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a silver plated copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250.
Conflat Flange (CF) Silver Plated Copper Gaskets CF Size 6.00" - 1 each
CF Flange Size: CF 6.00 inch
Common Dimensions: Conflat Flange Outer Diameter (OD) 6.00", Gasket Outer Diameter (OD) 4.743", Gasket Inner Diameter (ID) 4.010"
