Conflat Flange (CF) Blank Through Bolt Holes Rotatable, CF 8.00 inches, CFF 8.00 in., Stainless Steel Fittings
Conflat Flange (CF) Blank 18 bolt hole through flange rotatable, CF 8 inches, Stainless Steel
CF Flange Size: CF 8 inch

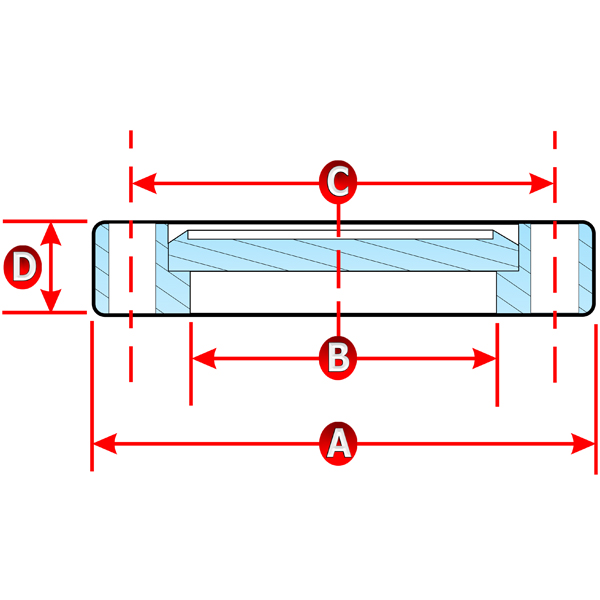

Common Dimensions:
(A) Outer Diameter = 8 in. (202mm)
(B) = 6 in. (153mm)
(C) = 7 1/4 in. (181mm)
(D) = 15/16 in. (24mm)
These are blank through 18 bolt holes rotatable flanges, 8 inch CF, CFF ConFlat (CF). These flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and a knife-edge flange to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel. Sold as ONE EACH
Conflat Flange (CF) Blank 18 bolt hole through flange rotatable, CF 8 inches, Stainless Steel
CF Flange Size: CF 8 inch
Common Dimensions:
(A) Outer Diameter = 8 in. (202mm)
(B) = 6 in. (153mm)
(C) = 7 1/4 in. (181mm)
(D) = 15/16 in. (24mm)
