These 6-Way Cube vacuum fittings are CF 3.375 inch, CF 3-3/8 inch (CF) bored through 8 hole flanges. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 1x10-10 torr and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2-3/4, 3-3/8, 4-1/2, 6, 8, 10, 12, 13-1/4, 14 and 16-1/2 inches. In Europe and Asia, sizes are given by tube inner diameter in millimeters: CF16, CF35, CF50, CF63, CF100, CF150, CF200, CF250. These vacuum fittings are made of corrosive resistant stainless steel.

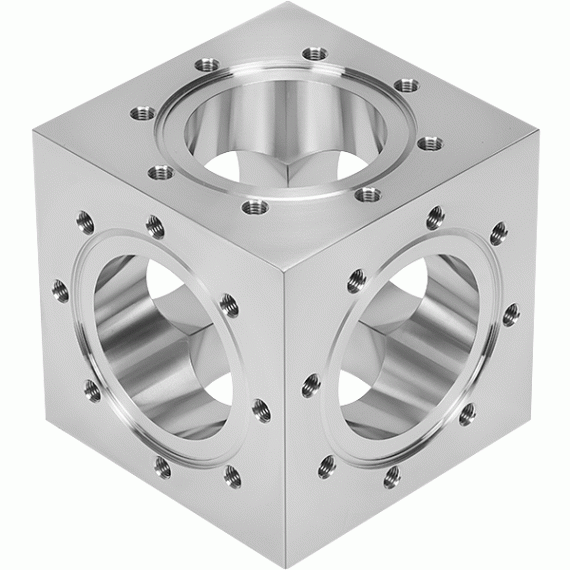

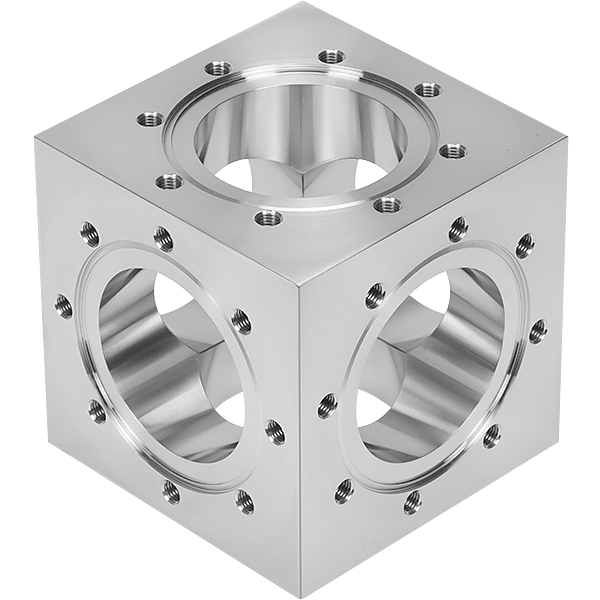

Conflat 6-Way Cube, CF 3.375 inch, CF 3-3/8 inch, 304 Stainless Steel
CF Flange Size: CF 3.375 inch (8 bolt) 6 sided
Dimensions: A= 43mm (1.69 inch), B= 51mm (2.00 inch)
Thread Size: .312-24 Thread Depth: 9.4mm
