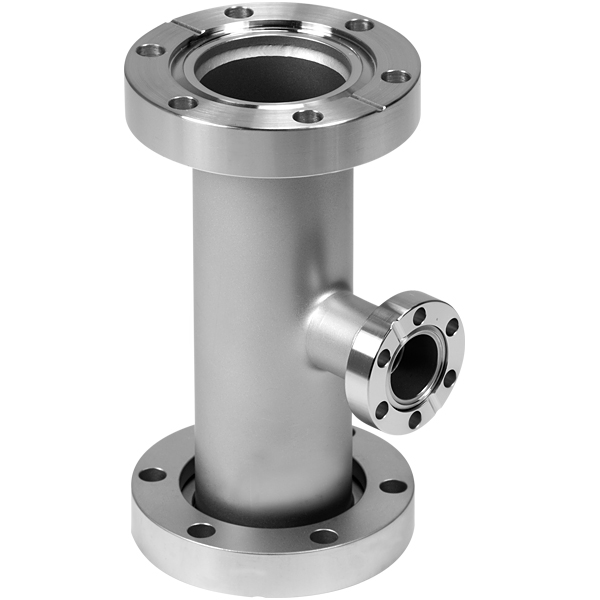

Conflat Adaptive CF Tee - 2.75 Inch to 1.33 Inch CFF Reducer Tee, Stainless Steel Fittings
Conflat Tee, CF 2.75 Inch to 1.33 Inch, Stainless Steel
Common Dimensions: A = 2-7/16", B = 1-7/8"
Flange 1 & 2 OD = 2.75", Tube OD = 1.5"
Flange 3 OD = 1.33", Tube OD = 0.75"

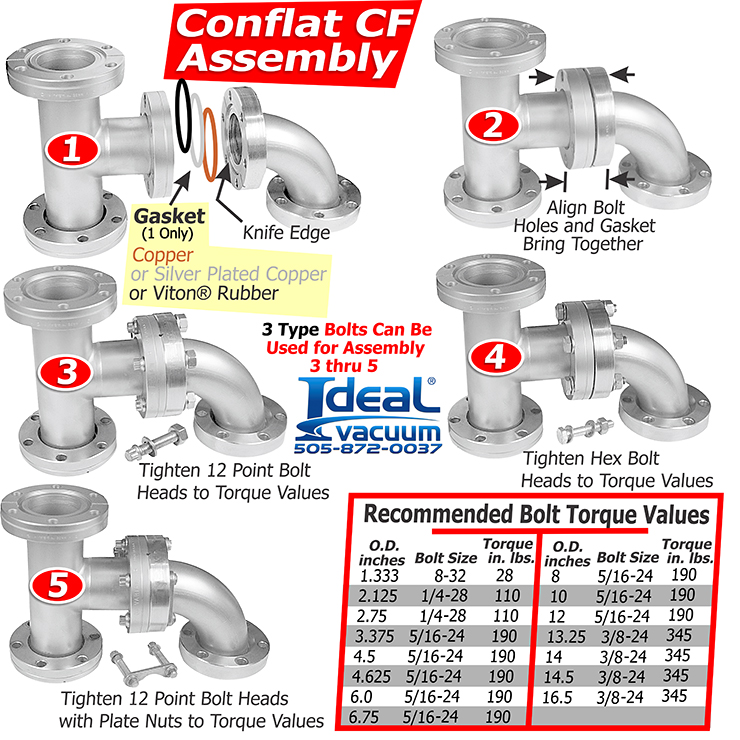

These Reducer CF tee 2.75 Inch to 1.33 Inch vacuum fittings have two rotatable and one fixed conflat (CF) flanges. ConFlat (CF) flanges are used for ultra-high vacuum applications. These fittings use a copper gasket and knife-edge flanges to achieve the high vacuum seal and can operate down to 10-13 torr (10-11 Pa) and can be heated to 450 °C for bake-out. North American flange sizes are given by flange outer diameter in inches: 1-1/3 ("mini conflat"), 2¾, 4½, 6, 8, 10, 12, 13¼, 14 and 16½. In Europe and Asia, sizes are given by tube inner diameter in millimeters: DN16, DN40, DN63, DN100, DN160, DN200, DN250. These vacuum fittings are made of corrosive resistant stainless steel.
Conflat Tee, CF 2.75 Inch to 1.33 Inch, Stainless Steel
Common Dimensions: A = 2-7/16", B = 1-7/8"
Flange 1 & 2 OD = 2.75", Tube OD = 1.5"
Flange 3 OD = 1.33", Tube OD = 0.75"
