CGA-510 Gas Regulator Inlet to 1/4" Male NPT Fitting, Nickel-Plated Brass, Long, PN: SEQ5104BPL
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

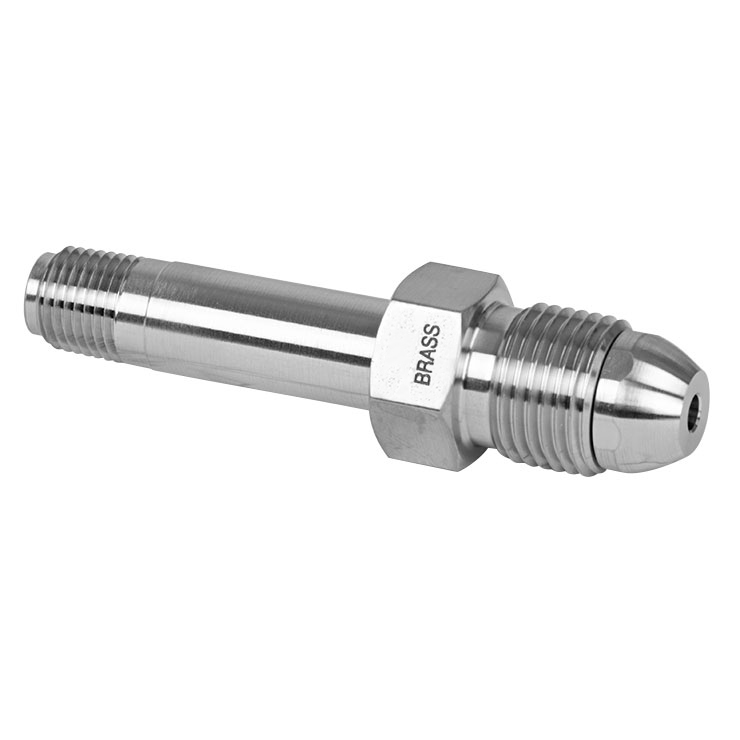

This is a long CGA-510 to 1/4" MNPT nickel-plated brass fitting with left-handed threads. Nipple length is 3.5 in. This size CGA fitting is used to connect regulators to compressed gas cylinders with a metal-to-metal seal and included Viton O-ring and a maximum pressure of 500 psig. This CGA-510 fitting, PN: SEQ5104SSL, is rated for use with the gases listed below.
CGA-510 for use with:
Connections to cylinders should never be forced. CGA fittings mated between regulator and cylinder never use pipe dope or PTFE tape. CGA connections use either a bullet-nose or gasketed seal. The bullet nose connection has a metal-to-metal contact and seal. Some bullet-nose connections have an o-ring to help improve the seal and to allow a connection to be made without a wrench (hand-tight connections). A gasketd connection requires a flat washer to make the seal. CGA fittings are available in several materials including brass, stainless steel, nickel or chrome-plated brass, and Monel. The CGA fitting material to use depends on the gas and cylinder pressure.
CGA-510 for use with:
- Acetylene
- Allene
- Bromotrifluoroethylene
- 1,3-Butadiene
- Butane
- 1-Butene
- 2-Butene
- 1-Chloro-1,1-difluoroethane
- Chlorofluoromethane
- Chlorotrifluoroethylene
- Cyclobutane
- Cyclopropane
- Diethylzinc
- 1,1-Difluoroethane
- Dimethyl Ether
- 2,2 Dimethylpropane
- Ethylacetylene
- Ethylene Oxide
- Ethyl Ether
- Isobutane
- Isobutylene
- Methane
- Methylacetylene
- 3-Methyl-1-Butene
- Methyl Chloride
- Methyl Ethyl Ether
- Natural Gas, Propane
- Propylene
- Silane
- Triethylaluminum
- 1,1,1 Trifluoroethane
- Trifluoroethylene
- Vinyl Bromide
- Vinyl Chloride
- Vinyl Methyl Ether
Connections to cylinders should never be forced. CGA fittings mated between regulator and cylinder never use pipe dope or PTFE tape. CGA connections use either a bullet-nose or gasketed seal. The bullet nose connection has a metal-to-metal contact and seal. Some bullet-nose connections have an o-ring to help improve the seal and to allow a connection to be made without a wrench (hand-tight connections). A gasketd connection requires a flat washer to make the seal. CGA fittings are available in several materials including brass, stainless steel, nickel or chrome-plated brass, and Monel. The CGA fitting material to use depends on the gas and cylinder pressure.
