CGA-330 Gas Regulator Inlet to 1/4" Male NPT Fitting, Stainless Steel, Short, PN: SEQ3304SS
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price

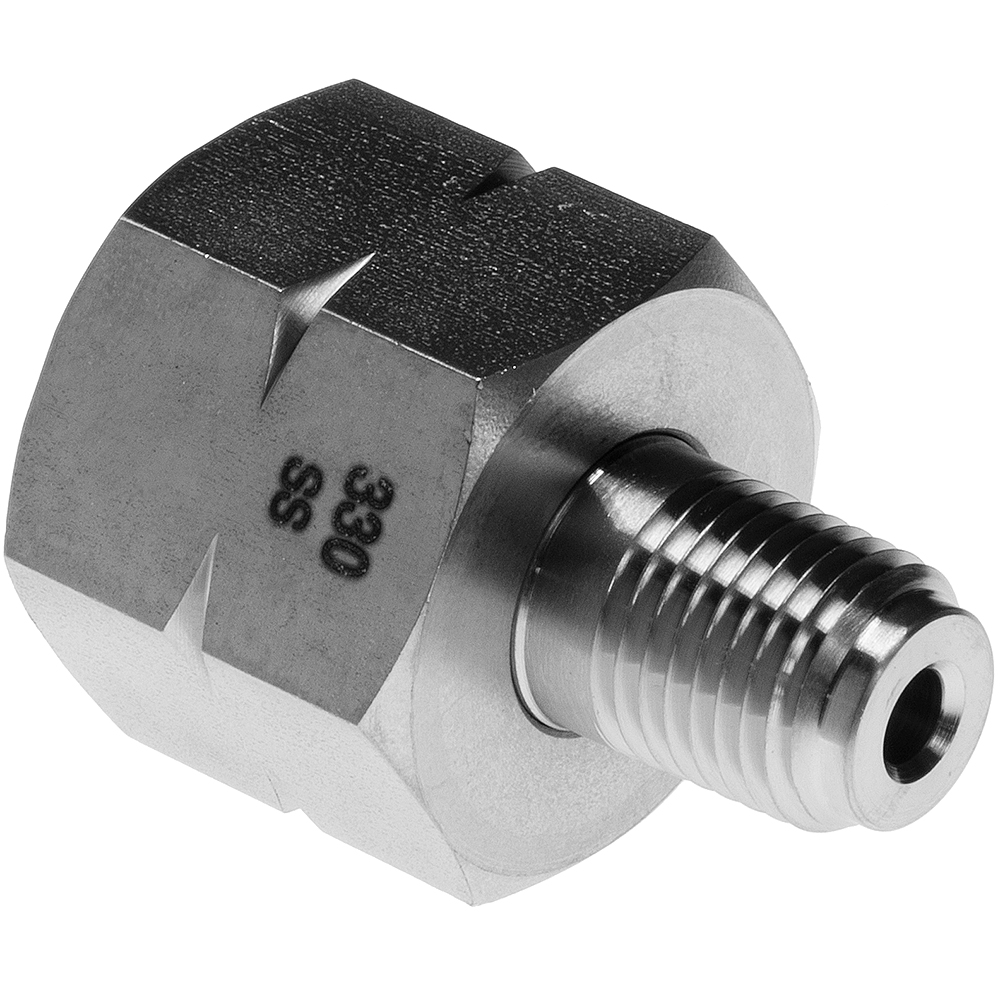

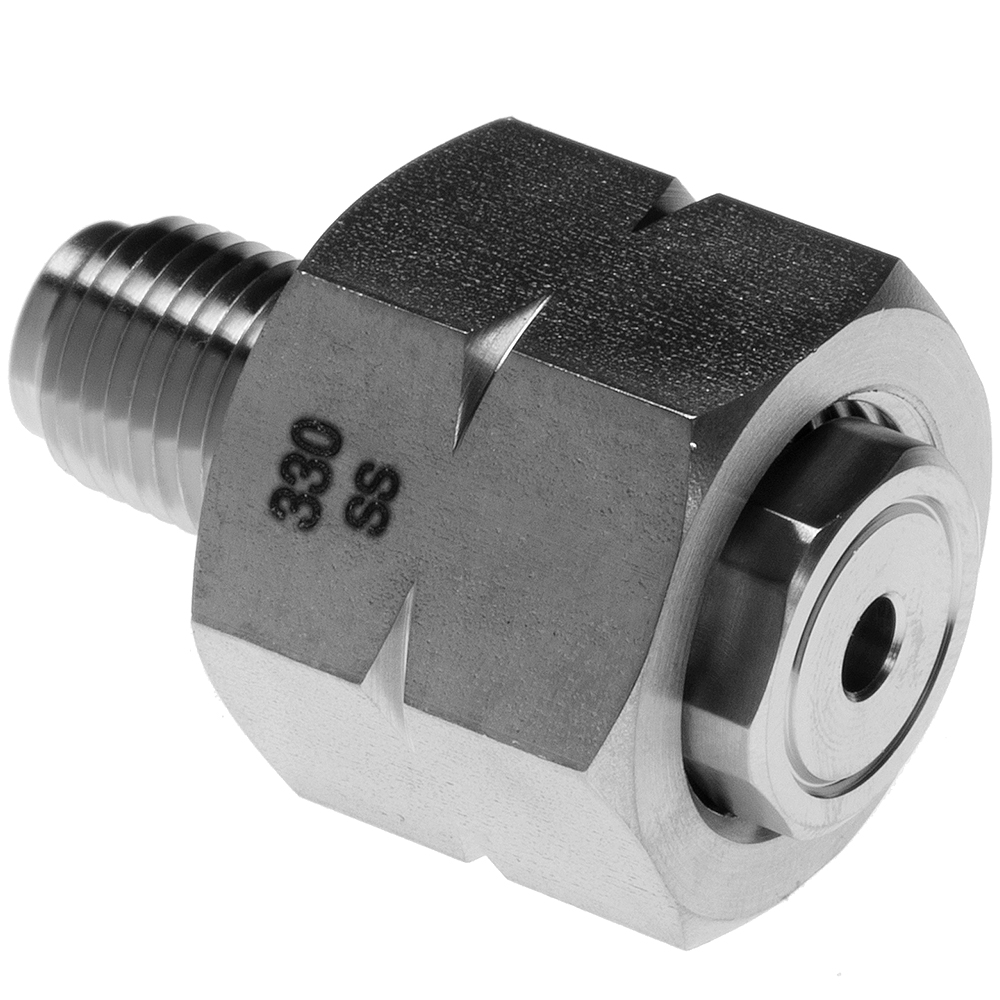

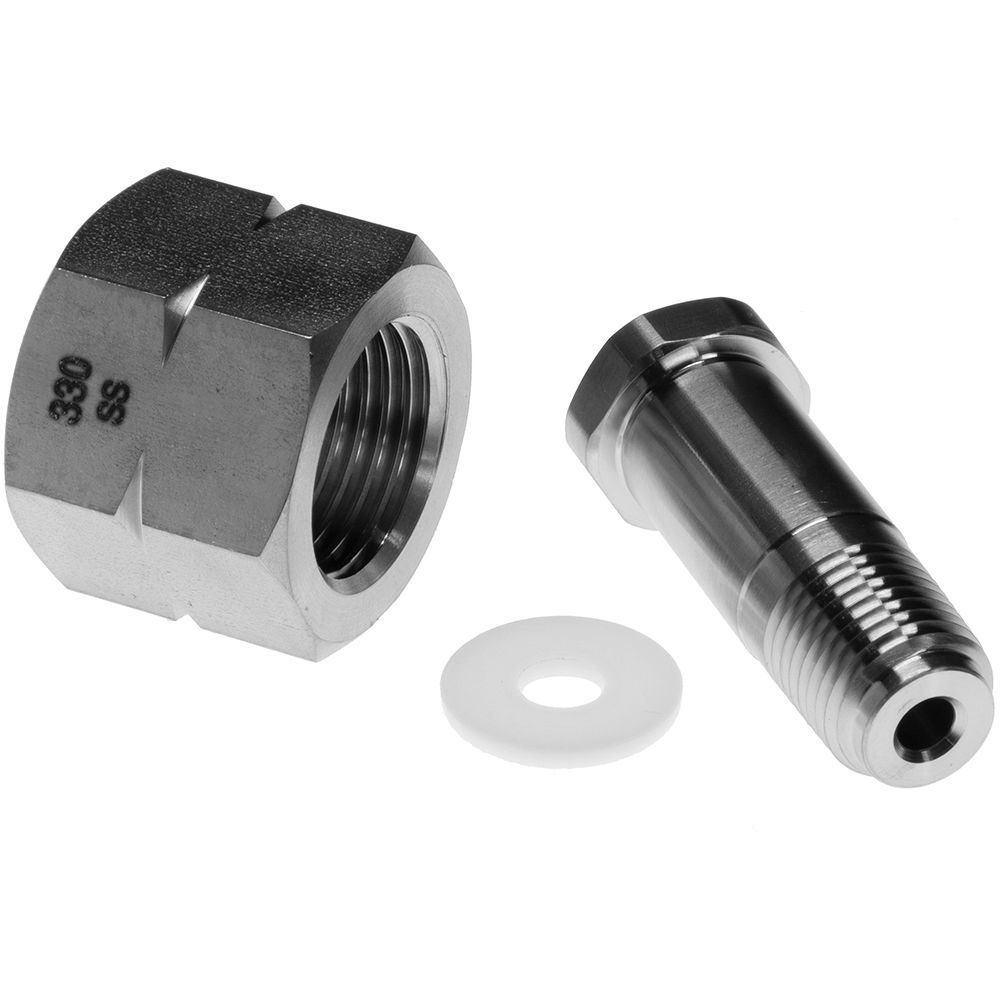

This is a SHORT CGA-330 to 1/4" MNPT stainless steel fitting with left-handed threads and included Teflon washer. Nipple length is 1.75 in. This size CGA fitting is used to connect regulators to compressed gas cylinders with a flat gasketed seal and a maximum pressure of 3000 psig. This CGA-330 fitting, PN: SEQ3304SS, is rated for use with the gases listed below. The Teflon washer is not typically reuseable. See part number P1012970 for replacement washers.
CGA-330 for use with:
Connections to cylinders should never be forced. CGA fittings mated between regulator and cylinder never use pipe dope or PTFE tape. CGA connections use either a bullet-nose or gasketed seal. The bullet nose connection has a metal-to-metal contact and seal. Some bullet-nose connections have an o-ring to help improve the seal and to allow a connection to be made without a wrench (hand-tight connections). A gasketd connection requires a flat washer to make the seal. CGA fittings are available in several materials including brass, stainless steel, nickel or chrome-plated brass, and Monel. The CGA fitting material to use depends on the gas and cylinder pressure.
CGA-330 for use with:
- Hydrogen Chloride
- Hydrogen Bromide
- Antimony Pentafluoride
- Boron Trifluoride
- Carbonyl Sulfide
- Deuterium Chloride
- Deuterium Sulfide
- Hexafluoroacetone
- Hydrogen Bromide
- Hydrogen Chloride
- Hydrogen Iodide
- Hydrogen Sulfide
- Methyl Bromide
- Methyl Mercaptan
- Nitrogen Trifluoride
- Nitrosyl Chloride
- Nitrosyl Fluoride
- Nitryl Fluoride
- Phenylcarbylamine Chloride
- Phosphorous Pentafluoride
- Phosphorous Trifluoride
- Silicon Tetrafluoride
- Sulfur Tetrafluoride
- Trifluoroacetyl Chloride
- Uranium Hexafluoride
Connections to cylinders should never be forced. CGA fittings mated between regulator and cylinder never use pipe dope or PTFE tape. CGA connections use either a bullet-nose or gasketed seal. The bullet nose connection has a metal-to-metal contact and seal. Some bullet-nose connections have an o-ring to help improve the seal and to allow a connection to be made without a wrench (hand-tight connections). A gasketd connection requires a flat washer to make the seal. CGA fittings are available in several materials including brass, stainless steel, nickel or chrome-plated brass, and Monel. The CGA fitting material to use depends on the gas and cylinder pressure.
