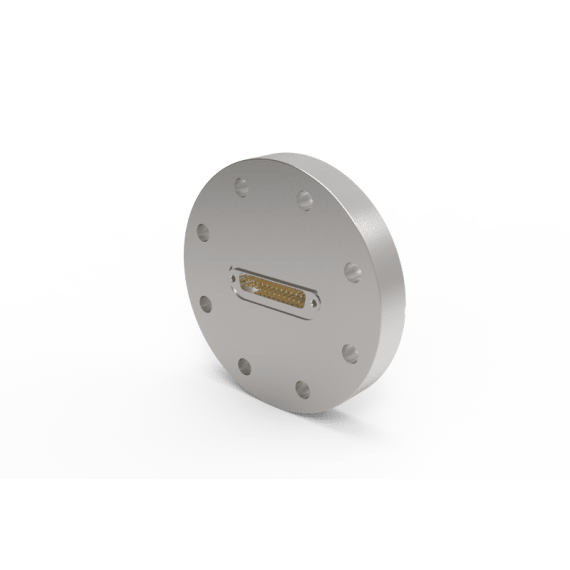

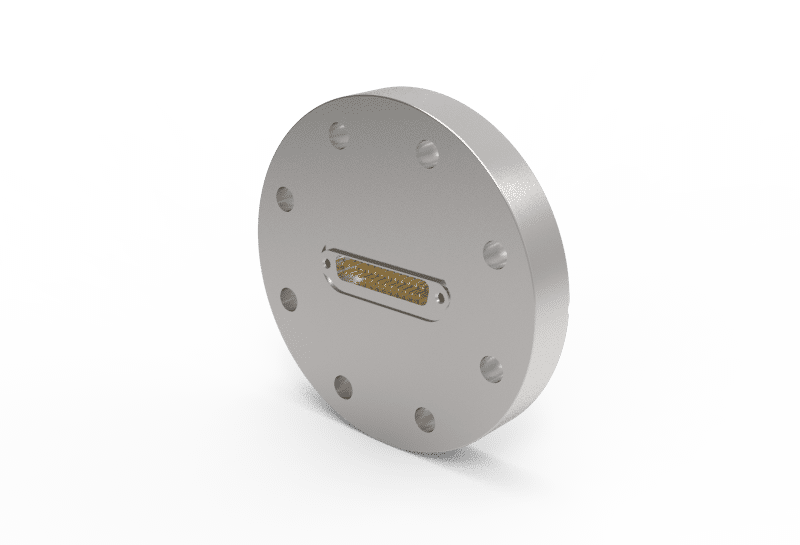

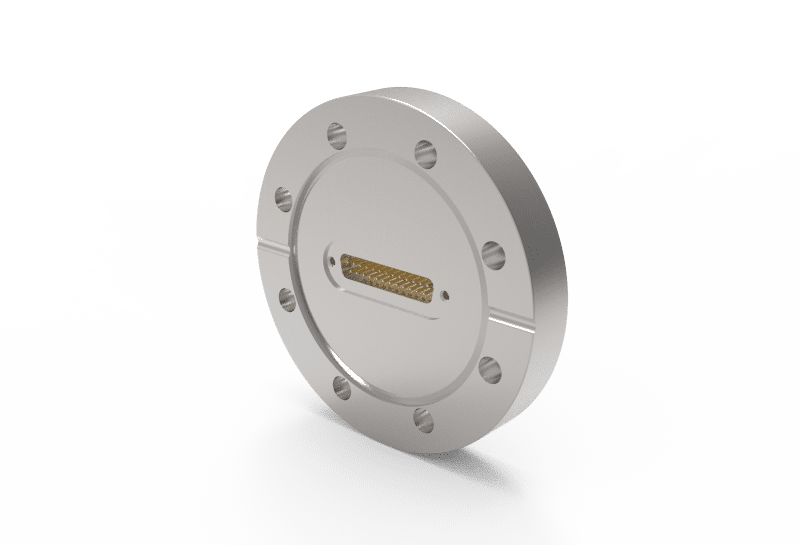

CF63-SUBD-25-BASIC Sub-D basic Sub-D basic
Delivery
Payment options
Our advantages
- — 12 months warranty
- — SMS notification
- — Return and exchange
- — Different payment methods
- — Best price
| Category | Sub-D basic |
|---|---|
| Bakeout temperature | 446 °F |
| Max. bakeout temperature | 230 °C |
| Contact coating | Gold-plated |
| Article no. | 346311 |
| Connection type | CF |
| Nominal diameter | 63 |
| Leakrate | < 1E-9 mbar ∙ l/s |
| Number of contacts | 25 |
| Max. voltage | 0,5 kV DC |
| Max. voltage | 0.5 kV DC |
| Max. current per contact | 3 A |
| Maximum current per contact | 3 A |
| Impedance | Not specified |
| Plug connections | Both Sides |
| Flange material | Stainless Steel 304L |
| Material housing/weld adapter | Stainless Steel 316L |
| Material contact(s) | Nickel alloy |
| Magnetic | Yes |
| Min. operating temperature | -200 °C |
| Min. operating temperature | -328 °F |
| Max. operating temperature | 200 °C |
| Max. operating temperature | 392 °F |
| Diameter contact(s) | 1 mm |
| Diameter contact(s) | 0.039 ″ |
| Outer diameter | 114,3 mm |
| Outer diameter | 4.5 ″ |
| Length | 18,2 mm |
| Length | 0.717 ″ |
| Purity class | PCS |
